2.3

Dimensions

2.3.1

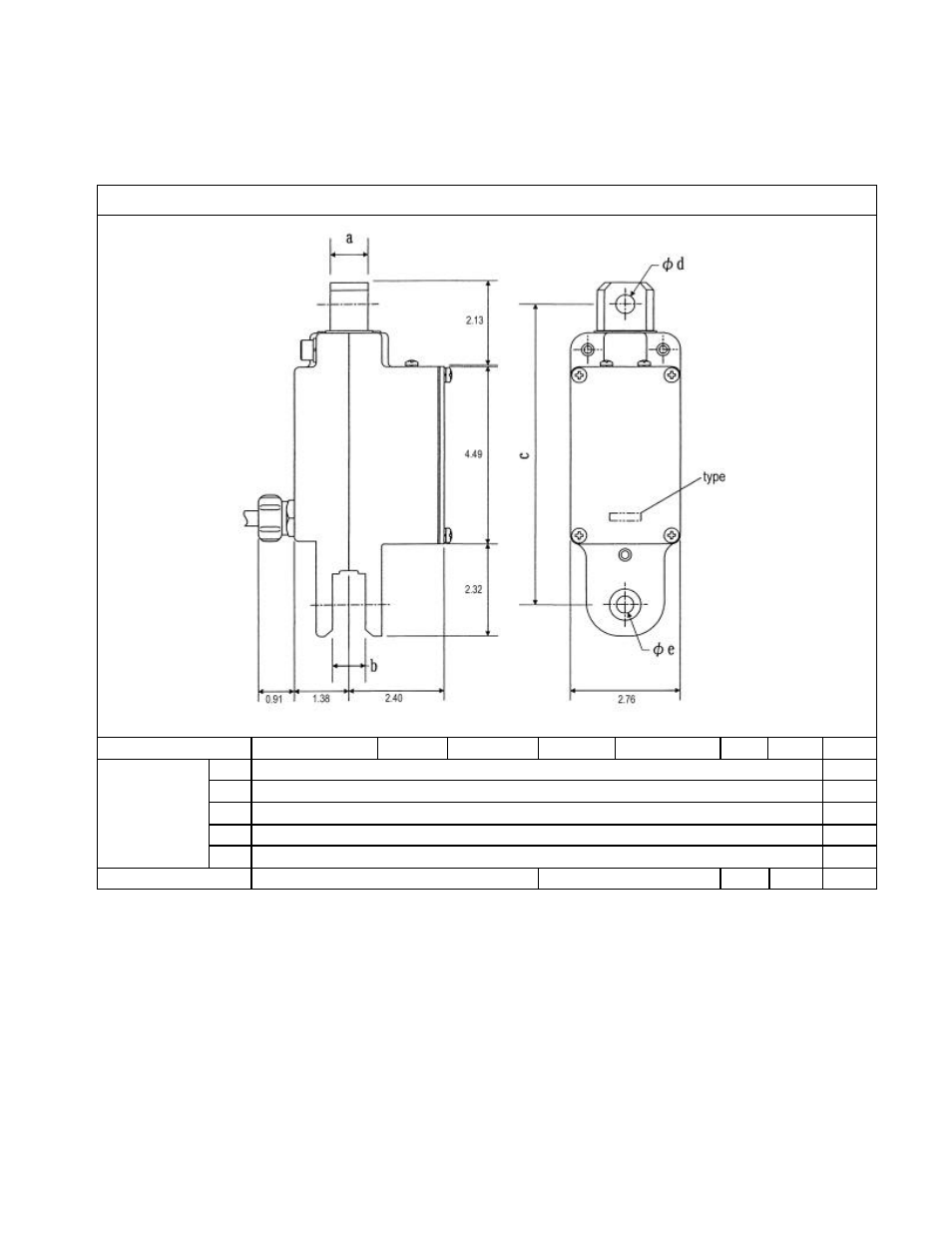

Load Limiter

Table 2-2 Load Limiter Dimensions

Load Limiter type

01H, 03S, 03H

05S

10S

15M

20S

30R 25M

50R

a

0.94

0.47

b

0.83

0.51

c

7.60

7.76

d

0.48

0.51

Dimensions

(in)

e

0.43

0.51

Weight (lb)

9.3

9.5

9.7

9.5

9.7
