6507G/5K/11-09/CP/BH Specifications and prices are subject to change without notice .
BRAVO
®

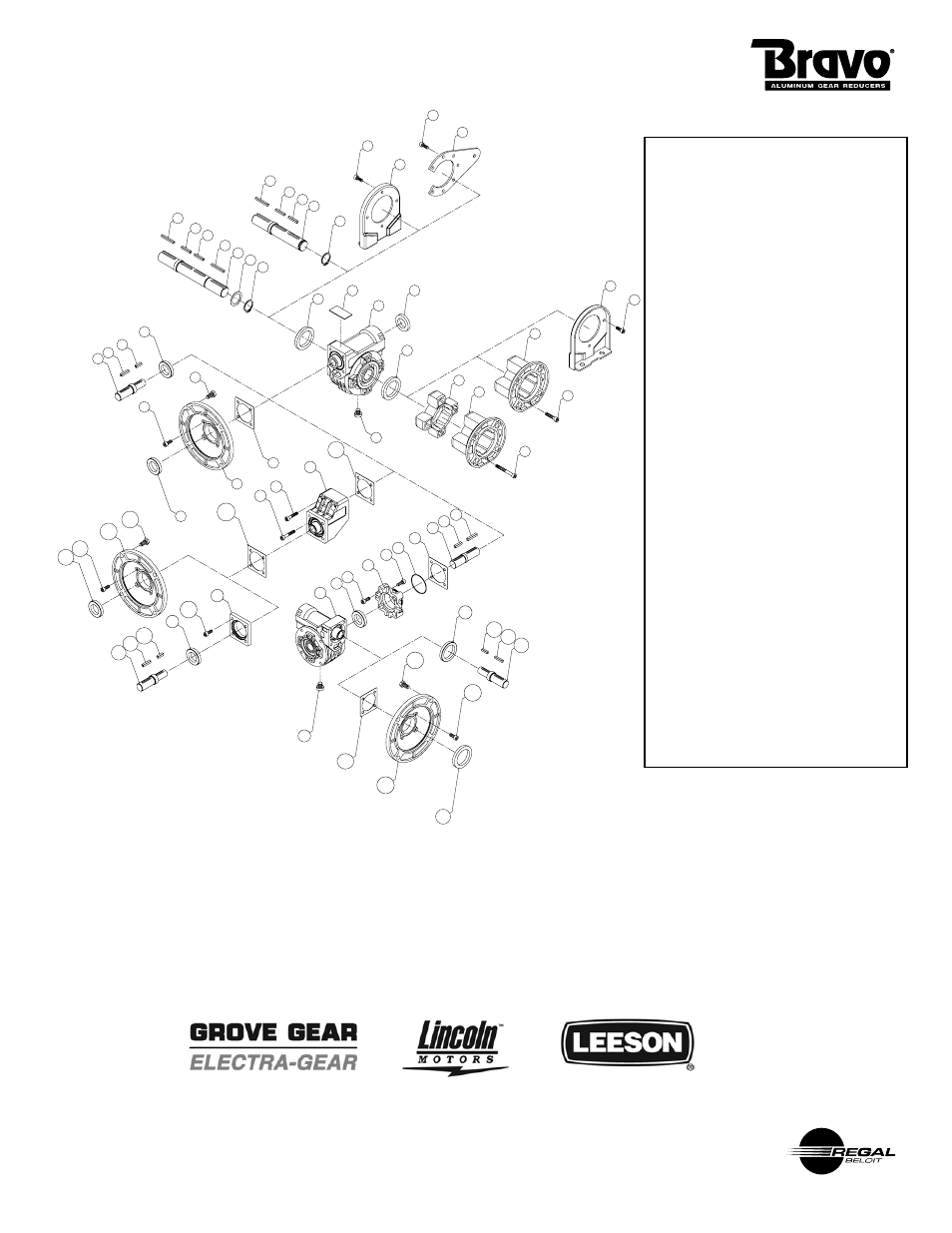

EXPLODED VIEW
BRAVO GEAR REDUCER - PARTS LISTING
SPV
17
18
18
17
15
14
13
17
18
18
16
13
11
10
11
12
2
37
1
3
2
5
6
6
7
10
11
4
8
22P
21P
20P
33P
32P
26
25
24
38
30
31
29
31
2P
34
23X
35
36
36
23X
28
32X
9X
22X
21X
20X
19X
32X
27X
33X
33
32
9
22
21
20
19
27
23
4P
23P
27P
19P
9P
ITEM # DESCRIPTION
1 GEAR MODULE
2,2P OIL SEAL - OUTPUT
3 RCA SEAL PLUG
4,4P DRAIN PLUG
5 FL-SPACER
6 F-FLANGE
7 SOCKET HEAD CAPSCREW
8 SOCKET HEAD CAPSCREW
9,9P,9X OIL SEAL -
NON-MOTORIzED INPUT
10 HORIzONTAL BASE
11 SOCKET HEAD CAPSCREW
12 REACTION ARM
13 RETAINING RING
14 SPACER
15 OUTPUT SHAFT - DOUBLE EXTENSION
16 OUTPUT SHAFT - SINGLE EXTENSION
17 KEy-OUTPUT (EXTENSION)
18 KEy-OUTPUT (INTERNAL)
19,19P,19X OIL SEAL - MOTORIzED INPUT
20,20P,20X INPUT SHAFT - NON-MOTORIzED INPUT
21,21P,21X KEy - INPUT (EXTENSION)
22,22P,22X KEy -INPUT (INTERNAL)
23,23P,23X GASKET
24 CONNECTOR SHAFT
25 KEY
26 KEY
27,27P,27X FLANGE - MOTORIzED INPUT
28 INPUT COvER
29 CONNECTOR FLANGE - DOUBLE
REDUCTION
30 O-RING
31 SOCKET HEAD CAPSCREW
32,32P,32X SOCKET HEAD CAPSCREW
33,33P,33X HEX HEAD CAPSCREW
34 PRIMARy GEAR MODULE - DOUBLE
REDUCTION
35 HELICAL STEP MODULE - DOUBLE
REDUCTION
36 SOCKET HEAD CAPSCREW
37 NAMEPLATE
38 GASKET
Class of Service
All capacity ratings are based on proper application of American Gear Manufacturers Association (AGMA) service factors as given on page 658
of the Grove Gear 8050 Catalog. Load conditions must be within cataloged ratings published in the current Grove Gear Catalog (available upon
request) .
Warranty From Grove Gear -
See 8050 catalog pages 672-674 for warranty terms and conditions.
