DISABLING AND REMOVAL OF THE SIR (AIRBAG) MODULE
1. Position the steering wheel so that it is pointed straight ahead. Write down all of your radio presets
as these may be lost when you disconnect the battery cable.
2.
NOTICE - Disconnect the negative battery cable and wait at least 1 full minute for the circuit to
completely discharge before proceeding. CAUTION: Failure to fully deplete the backup power
supply could result in an accidental deployment and possible injury.
3. Using a 3-4mm (1/8”-5/32”) Allen wrench release the 2 spring fasteners by pushing inward through
the access holes. The access holes are located on both sides of the steering wheel just behind the
silver plastic trim.

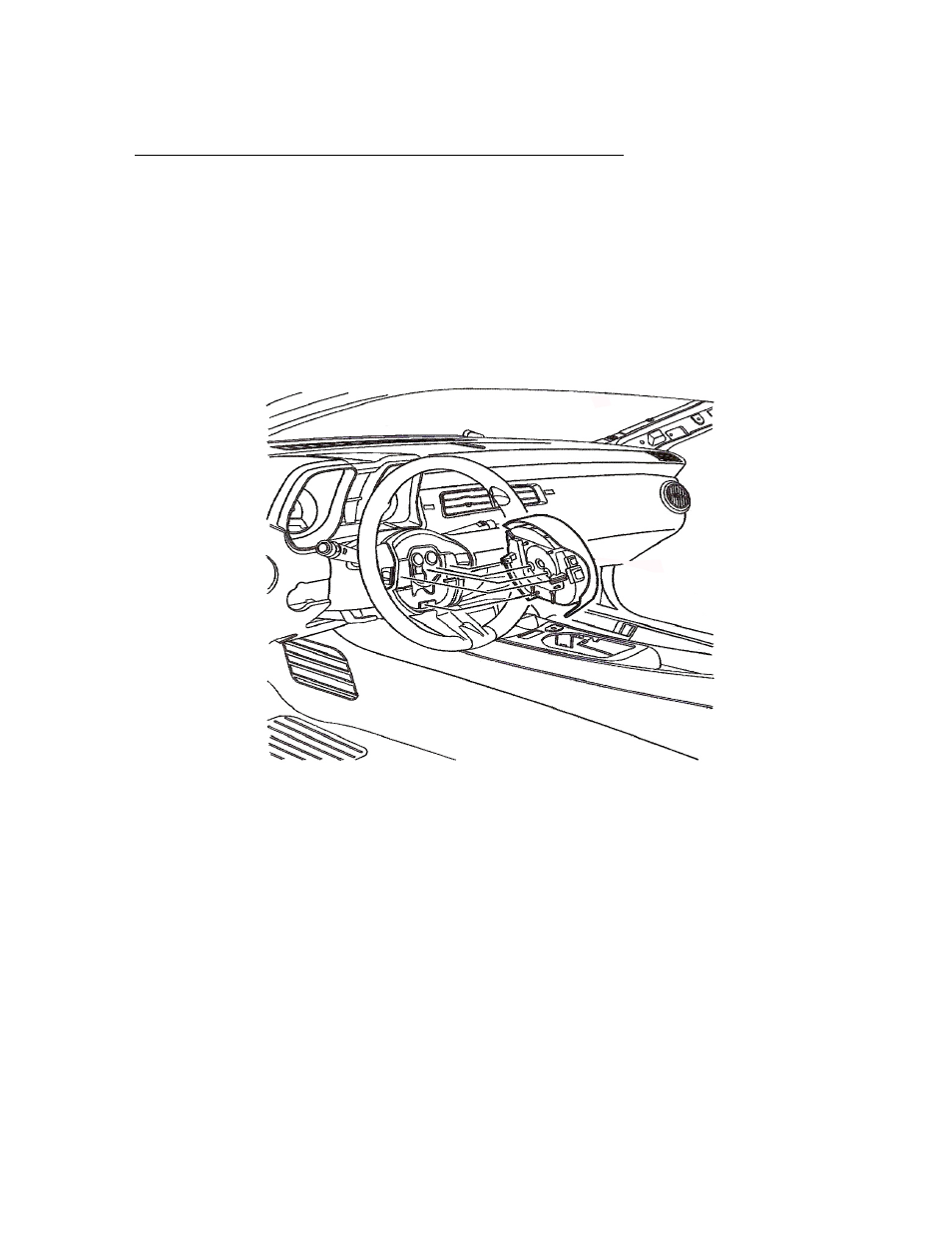

4. The airbag module will pop up as each side is released, when both sides are free lift and partially
remove the airbag module from the steering wheel in order to expose the electrical connectors on the
back side. Take care not to pull on any of the wiring. See illustration above.
5. The airbag electrical connections have a safety locking connector-position assurance (CPA) clip that
must be released before you can remove the electrical connectors from the module.
6. Disconnect the electrical connectors from the airbag module by squeezing them and pulling away.
7. Remove the airbag module from the steering wheel and place the module face up on the floor, seat
or work bench. If you carry the module make sure the trim cover is pointed AWAY from your body.
