Installation Setup

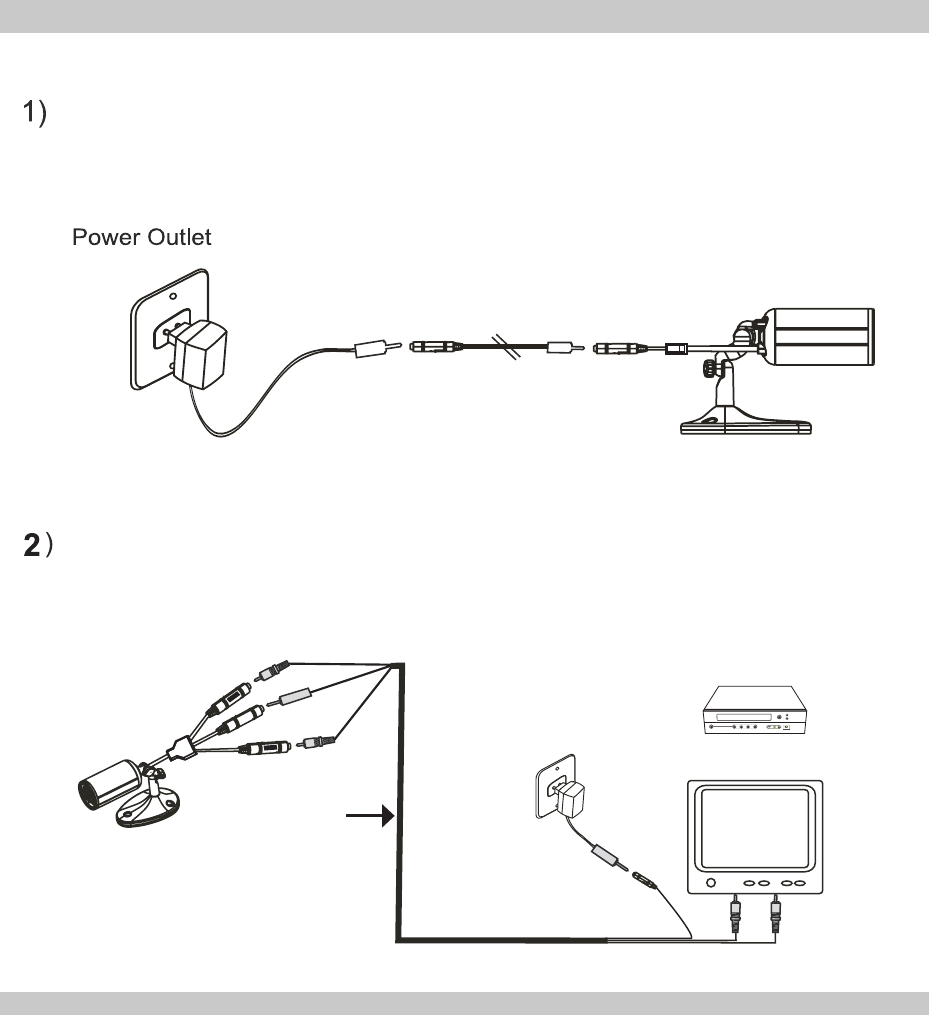

Connect one end of the 100ft power receptacle to the camera’s power input
socket, connect the A/C adapter (8VDC 300mA) to the other end of the 100ft
cable. Finally, connect the power adapter to an electrical outlet as illustrated
below.
Connect one end of the 100ft cable to the camera’s yellow socket for video
and red socket for audio and the other end to a monitor/TV/VCR/DVR audio/
video input. Turn on the Monitor/TV/VCR/DVR and select AV mode, ie. VIDEO
1, VIDEO 2, or L1/L2 (VCR) video input.
A/V Output to Monitor/TV/VCR/DVR input
100ft AVP cable
OR
100ft AVP cable
WARNING: Please use the included AVP cable. Using other AVP cable may result in
poor audio/video display and night vision to malfunction.
