A.O. Smith BFM - 120 - Manual (Page 4)

1 Pressure reducing valve
3 T&P valve
4 Stop valve
5 Non-return valve
6 Circulation pump
7 Destratifi cation pump
9 Drain valve
10 Gas cock
11 Isolating valve
12 Temperature gauge
13 Condense drain
14 Hot water outlets
15 Expansion relief valve
16 Expansion vessel
17 Three way valve
18 Water tank
19 Float valve
A Cold water
B Hot water
C Return circulation
D Gas supply
E Overfl ow pipe
H Expansion vent pipe
A.O. Smith unvented system kits utilise combination valves.
Further installation and connection details can be found in
the Installation & Commissioning Manual.

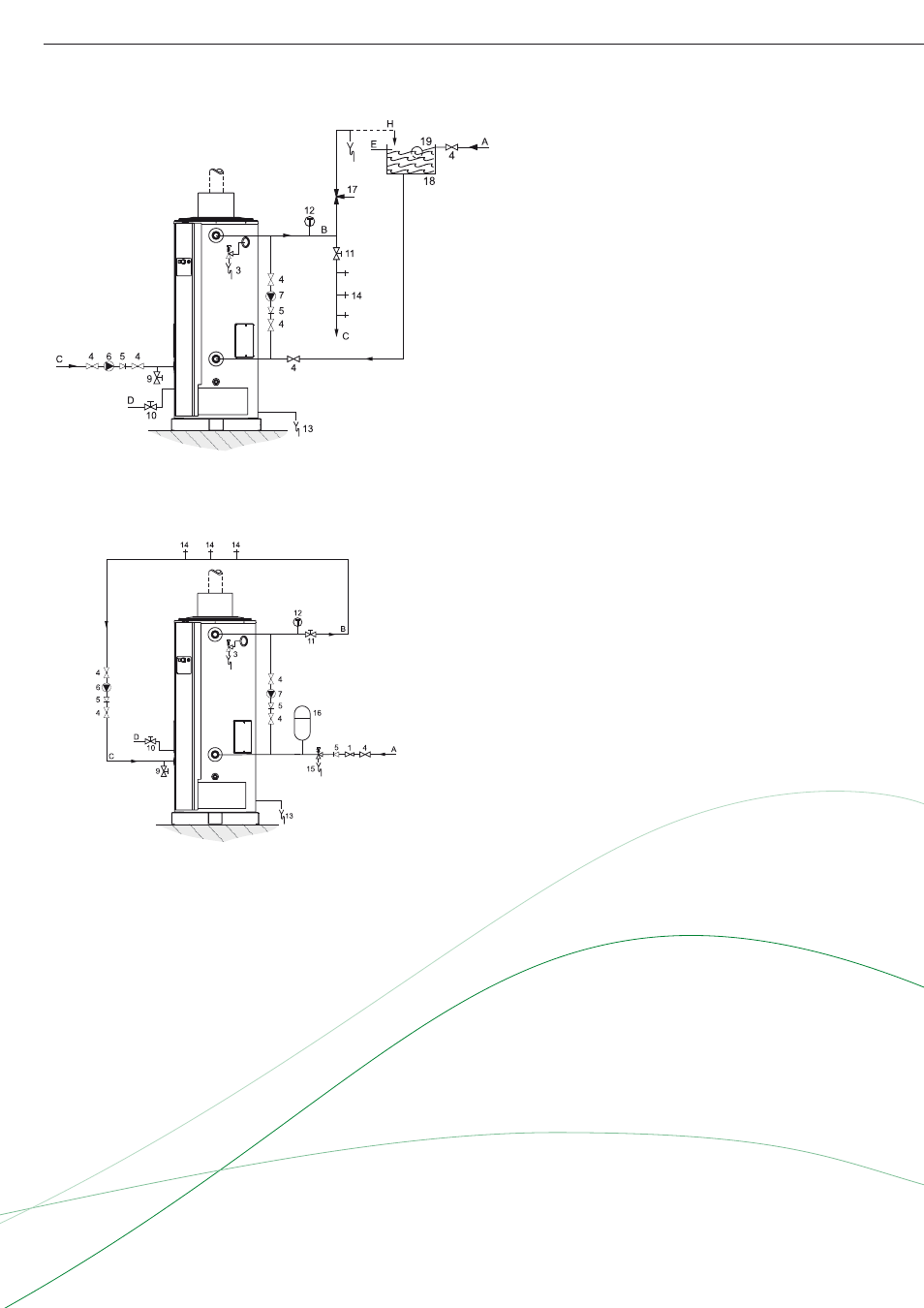

BFM
Installation diagrams
Vented
Unvented
