62
Actiontec 54 Mbps Wireless Multiport Print Server User Manual
63
Appendix b Using Internet Printer Protocol

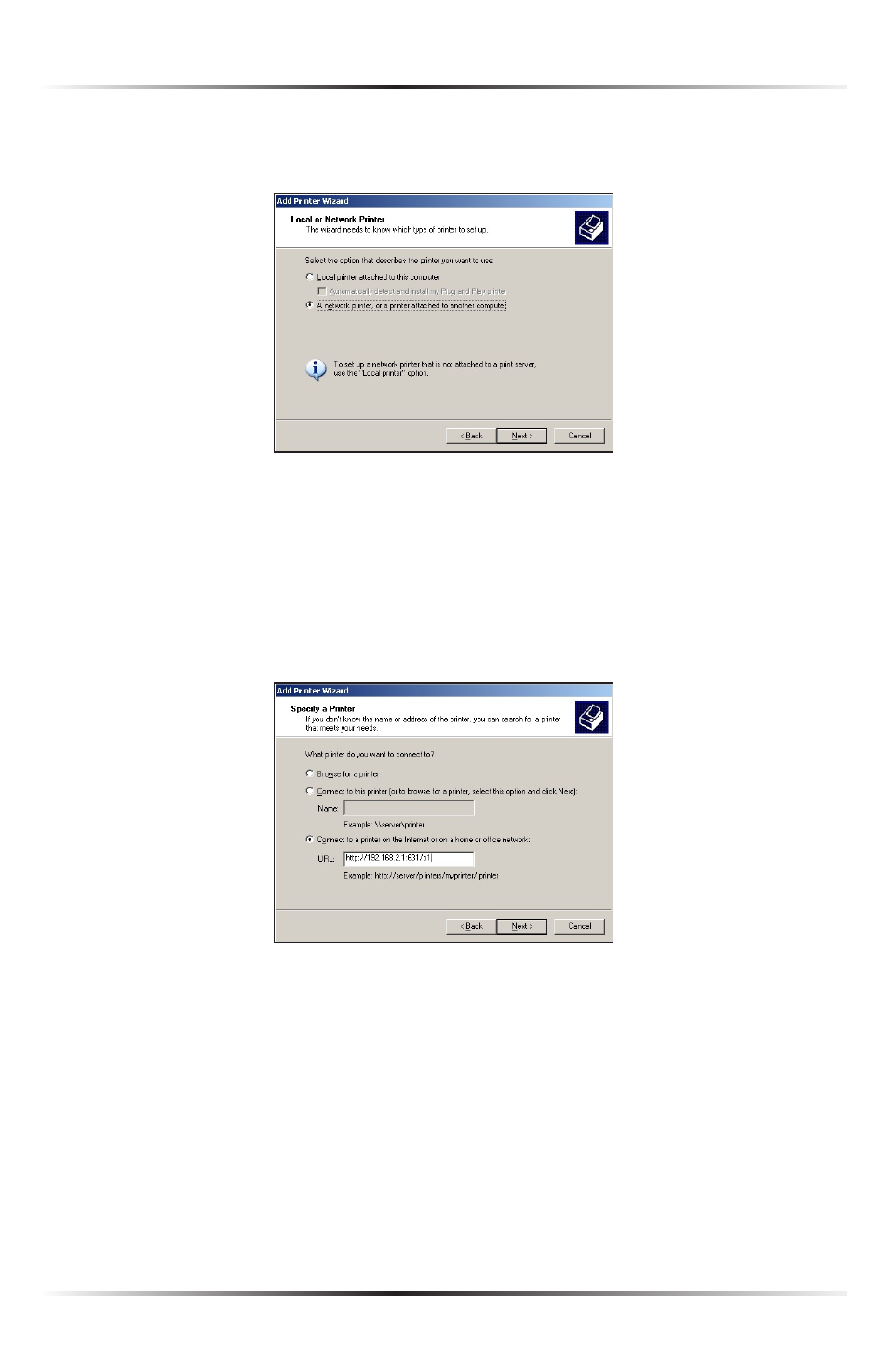

5. In the next window, select “A network printer, or a printer attached to another
computer” by clicking in the appropriate circle, then click Next.
6. In the next window, select “Connect to a printer on the Internet or on a home
or office network” by clicking in the appropriate circle, then enter the URL of
the Print Server and printer in the “ URL ” text box. The format of the URL is
as follows: http://Print Server IP address:631/printer port number. In the
example below, the Print Server
IP address is “192.168.2.1,” and the printer
port number (the Print Server port to which the printer is connected) is “p1.”
Click Next.
7. Complete the Add Printer Wizard in the usual fashion.
The Print Server is now accessible via the Internet.
