Actiontec electronic 802PSG - Manual (Page 32)

28
Actiontec 54 Mbps Wireless Multiport Print Server User Manual
29
Chapter 3 Using the Print Server Manager
128-bit WEP - To create a set of 128 -bit WEP ASCII keys, activate one or more
keys by clicking in the appropriate circles, then enter 13 standard characters
(numbers or letters) in each activated Key text box (Key 1-, Key 2-, Key 3-, Key
4-). After activating
128 -bit WEP on the Print Server, a computer with wireless
capability can use the Print Sever only if these same keys are entered in the
computer’s wireless encryption scheme.
After configuring, click Next.
WEP HEX

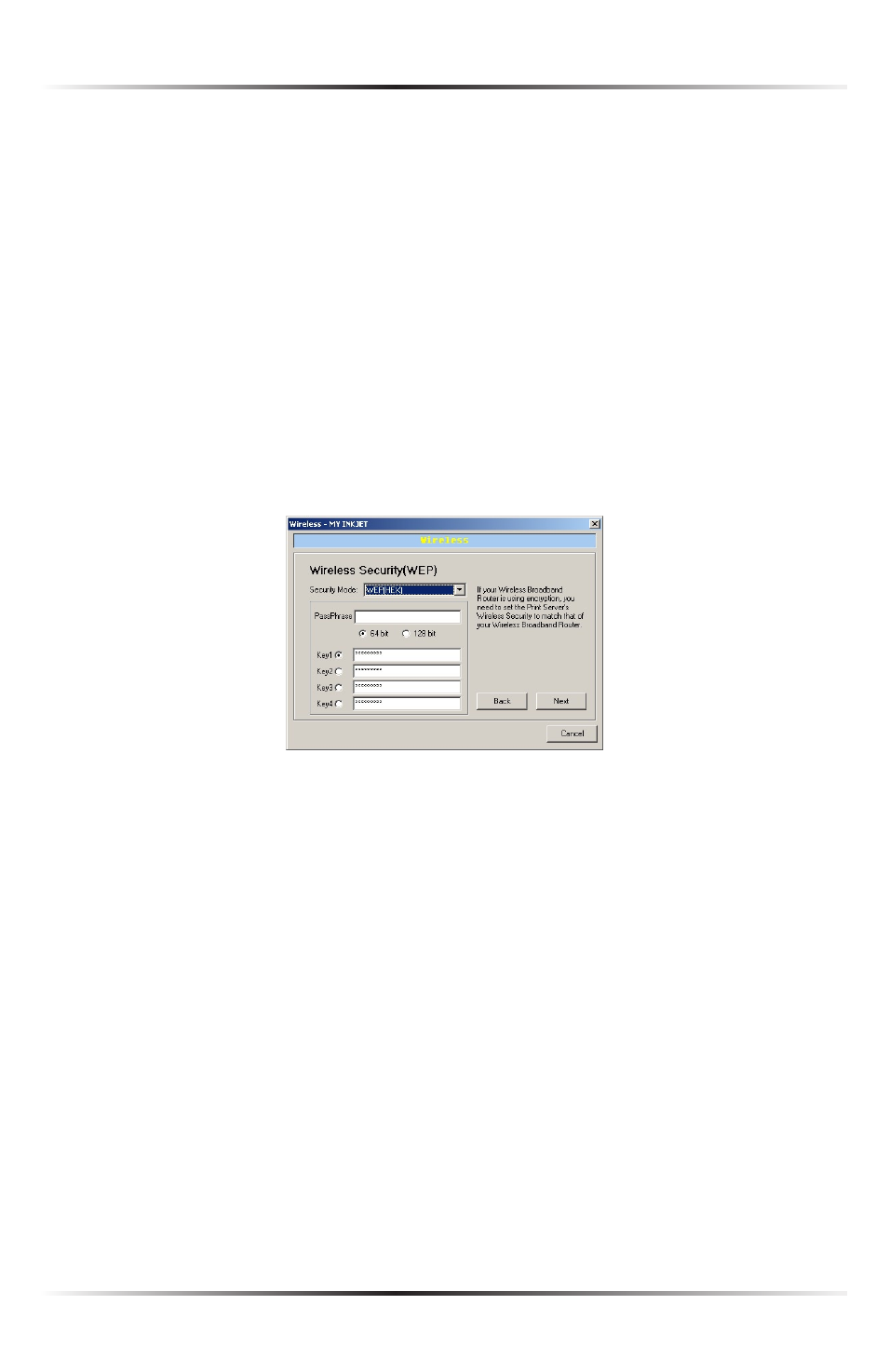

Selecting this option generates the same “Wireless Security (
WEP )” window
as selecting WEP ASCII , except that the “Passphrase” text box is active and the
“Key” text boxes are already filled.
64-bit WEP - 64-bit WEP requires one or more keys, each key comprising five
hexadecimal pairs. A hexadecimal digit consists of an alphanumeric character
ranging from
0-9 or A-F . An example of a 64 -bit WEP key is: 4E-A3-3D-68-72 .
To create a set of 64 -bit WEP HEX keys, activate one or more keys by clicking in
the appropriate circles, then enter five hexadecimal digit pairs in each activated
Key text box (Key 1-, Key 2-, Key 3-, Key 4-). After activating
64 -bit WEP on the
Print Server, a computer with wireless capability can use the Print Sever only if
these same keys are entered in the computer’s wireless encryption scheme.
128-bit WEP - 128-bit WEP requires one or more keys, comprising 13 hexadecimal
pairs. A hexadecimal digit consists of alphanumeric characters ranging from 0-9 or
A-F . An example of a 128 -bit WEP key is: 3D-44-FE-6C-A1-EF-2E-D3-C4-21-74-5D-B1 .
To create a 128 -bit WEP key, activate Key 1 by clicking in the appropriate circle, then
enter 13 hexadecimal digit pairs in the Key text box. After activating 128 -bit WEP on
the Print Server, a computer with wireless capability can use the Print Sever only if
this key is entered in the computer’s wireless encryption scheme.
