1. Engine/Blade Control
2. Wheel Drive Control (911094, 098, 100,
394)
3. Adjustable and Folding Handlebars
4. Swivel Wheel Lock (911100)
5. Grass Bag
6. Rear Door
7. Fuel Tank and Cap
8. Fuel Shutoff Valve (911094, 095, 394)
9. Height Adjustment Pins
10. Muffler and Muffler Guard
11. Oil Fill/Dipstick
12. Oil Filter
13. Cutting Height Levers (2 Rear Wheel
Adjusters, 2 Front Wheel Adjusters)
14. Primer Bulb (911098, 100)
15. Air Filter
16. Side Discharge Cover (911098, 100)
17. Side Discharge Deflector (911098, 100)
18. Mulch Plug
19. Handlebar Adjustment Holes
20. Recoil Starter Handle
21. Speed Control Rod (911094, 098, 100,
394)
22. Throttle Control (911094, 095, 394)

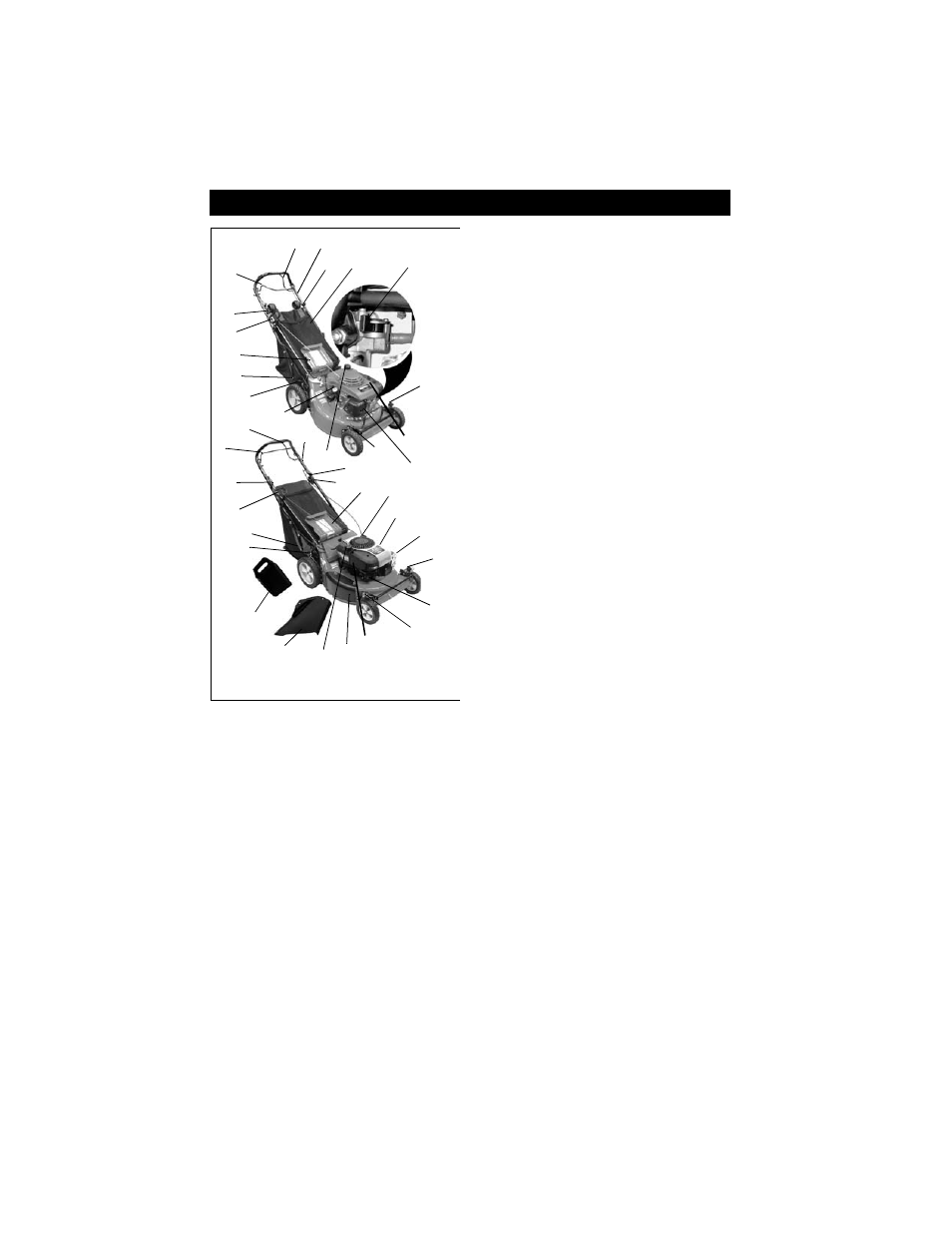

CONTROLS AND FEATURES
Figure 5
1
2 3
22 5
6
8
13
10
7
3
22
6
11
12
13
14
13
16 7 17
18
13
19
20
21
1
2
11
13
19
20
21
10
13
15
15
4
