Robinair 17700Z Recovery, Recycling, Recharging Unit - Manual (Page 6)

4
© 2003 SPX Corporation
Menu Functions
1. Press the MENU button on the keypad.
2. Press the UP or DOWN arrow key to scroll
through the menu choices shown on the second
line of the display :
SELECT LANGUAGE
VERSION X.XX
CHANGE DEFAULTS
CHANGE VACUUM PUMP OIL
VACUUM OIL TIME
CHANGE FILTER
FILTER CAPACITY
RECYCLE ONLY
TANK REFILL
SELECT UNITS IMPERIAL / METRIC
3. Press START / YES to make a choice from
the menu. Press STOP / NO to pause during
any process, and STOP / NO a second time to
exit a process.

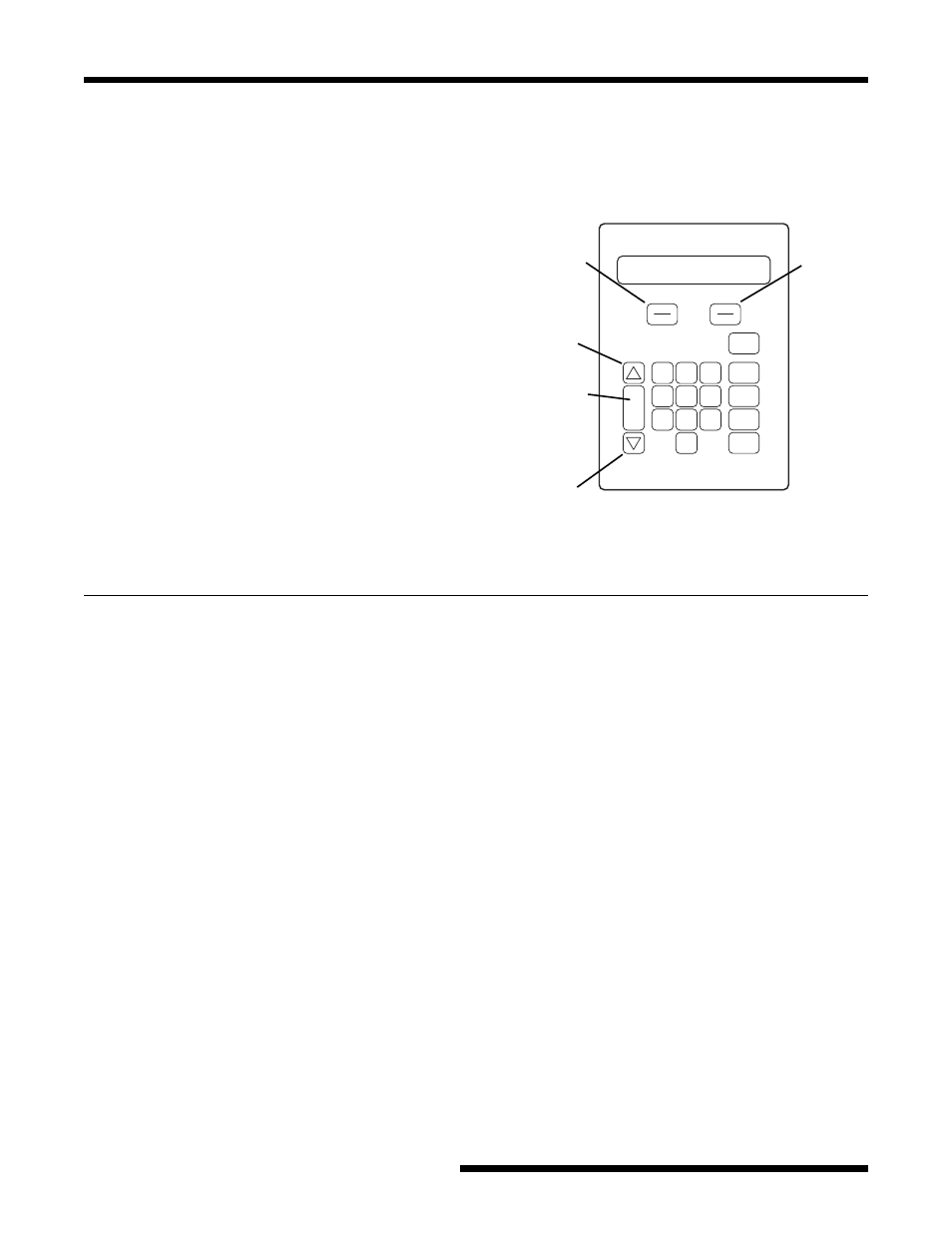

AUTOMATIC
START
YES
VACUUM
INJECT OIL
CHARGE
RECOVER
1 3 2
4 6 5
7 9 8
0
MENU
STOP
NO
UP
Arrow
Key
Start / Yes
Button
Stop / No
Button
DOWN
Arrow Key
Menu
Button
Introduction
Menu Choice : Select Language
Operator may choose to have prompts displayed in
one of three languages : English, Spanish, or French.
Menu Choice : Version X.XX
Displays the revision level of the software in the unit.
Menu Choice : Change Defaults
For service center use only.
Menu Choice : Change Vacuum Pump Oil
For maximum vacuum pump performance, change
vacuum pump oil after every 10 hours of operation.
Refer to the instructions outlined in the Maintenance
section under Changing Vacuum Pump Oil.
Menu Choice : Vacuum Oil Time
Displays how long the vacuum pump has operated
since the last oil change. The display resets to zero
after a vacuum pump oil change has been completed.
Refer to the instructions outlined in the Maintenance
section under Changing Vacuum Pump Oil.
Menu Choice : Select Units
Operator may choose to have test results displayed
in Imperial (English) or Metric units.
Menu Choice : Change Filter
The filter-drier removes acid, particulates, and
moisture from the refrigerant. Change the filter-drier
after 150 lbs. (68 kg) of refrigerant has been filtered.
Refer to the instructions outlined in the Maintenance
section under Replacing the Filter-Drier.
Menu Choice : Filter Capacity
Displays how many pounds or kilograms of refrigerant
have been recovered since the last filter change. The
display resets to zero after a filter-drier change. Refer
to the instructions outlined in the Maintenance section
under Replacing the Filter-Drier.
Menu Choice : Recycle Only
Manual recycling may be necessary if excessive air
and/or moisture has been recovered from the vehicle
A/C system.
Menu Choice : Tank Refill
This menu item is used to transfer refrigerant from
the source tank to the internal storage vessel (ISV).
Refer to the instructions outlined in the Maintenance
section under Filling the Internal Tank.
