Maintenance
Filling the Internal Tank
This menu item is used to transfer refrigerant from the
source tank to the internal storage vessel (ISV).
1. Connect the fill hose to a full source tank.
2. Open the source tank valve.
3. Install the source tank on the unit, and secure the
source tank using the tank strap.
Note: If using a refillable tank, install the tank upside
down and connect the fill hose to the vapor valve.
4. Press Menu , and use the UP or DOWN arrow keys
to select TANK REFILL.
5. Press START / YES , and the unit will automatically
fill the internal storage vessel until it contains 15 lbs.
of refrigerant, or until the source tank is empty.
Press STOP / NO to pause. Press STOP / NO again
to exit, or START / YES to resume.
Note : If a refrigerant source tank remains connected
to the unit during normal operation, the correct
amount of refrigerant will be automatically
maintained in the ISV. The ISV may be manually
refilled, if necessary.
6. When the fill process is complete, press STOP / NO
to exit. The unit is ready for operation.
34700Z 17700Z
Replacement Replacement
Component Part No. Part No.
96" Red Hose 63096 68396A
96" Blue Hose 62121 68296A
Filter-Drier 34724 34724
Low-Side Coupler 18190A
High-Side Coupler 18191A
Vacuum Pump Oil
(case of 12 quarts)
13203 13203
Vacuum Pump Oil
(case of 4 gallons)
13204 13204
Maintenance Kit 13172 13172
HIGH HIGH
LOW LOW

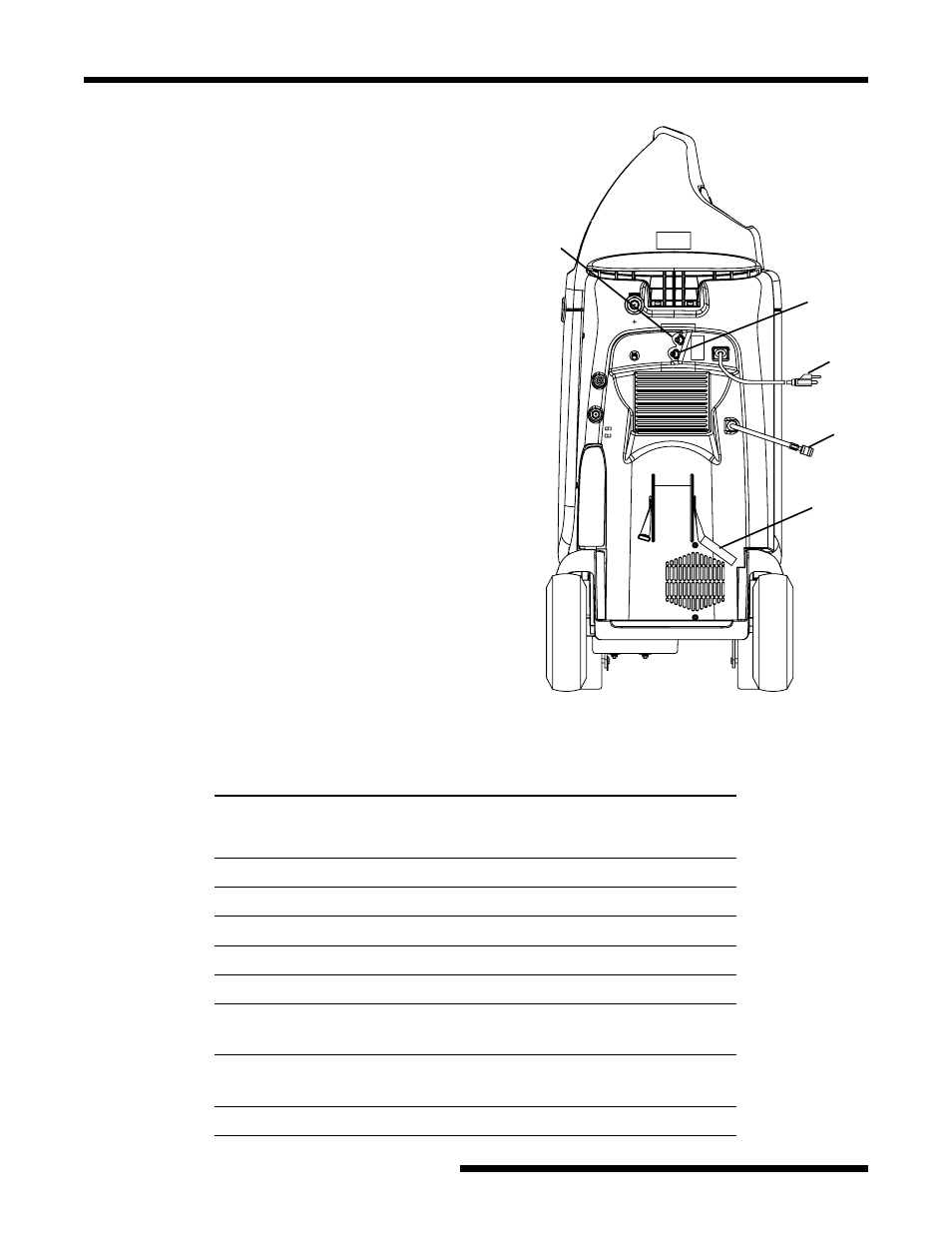

Fill
Hose
Power
Cord
Low-Side
Hose
Source
Tank
Strap
Side View
High-
Side
Hose
Replacement Parts
