Operating Manual

7

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

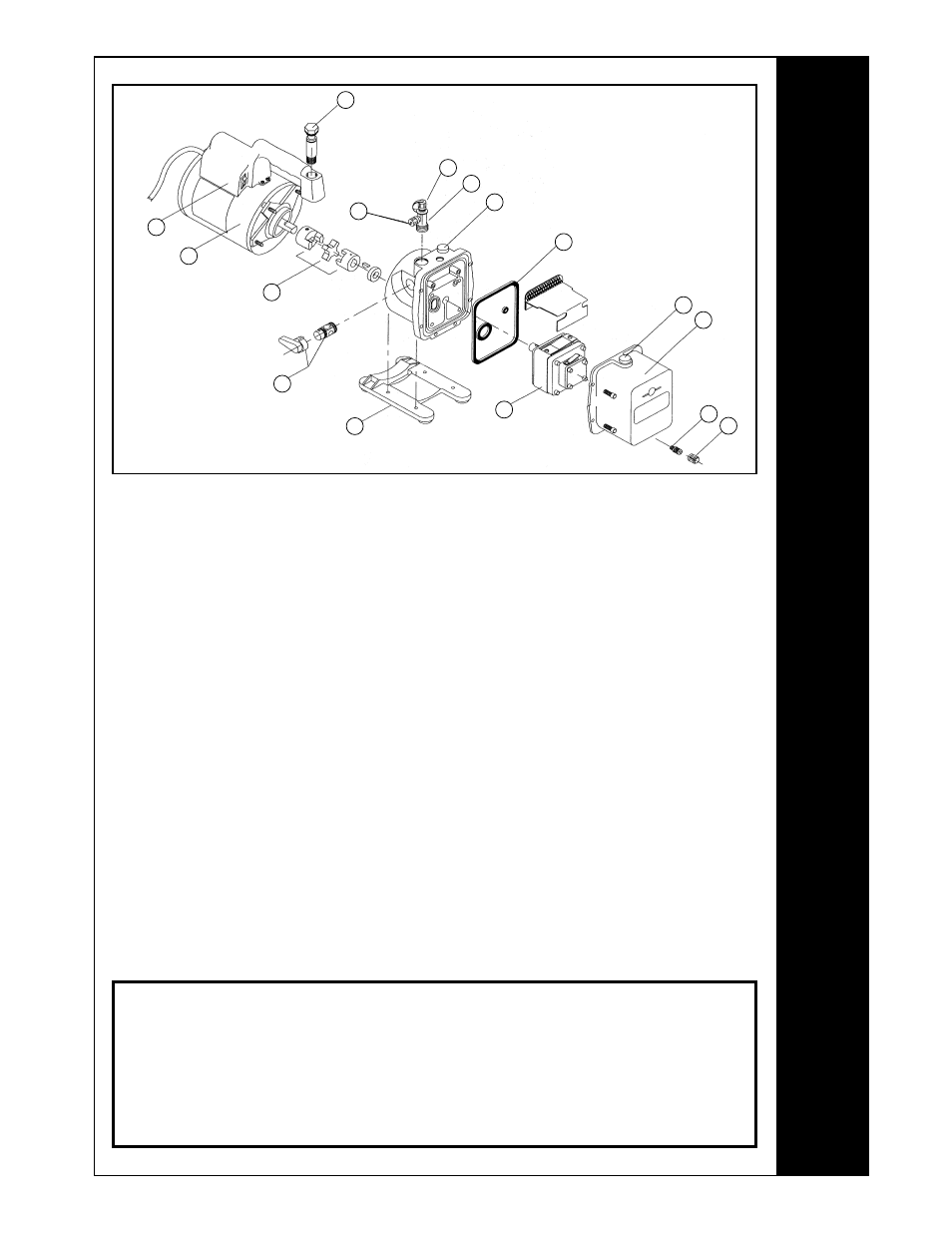

Replacement parts

Part

Figure

Order

Oil Drain Cap (qty. 6)

1

40572

Oil Drain Kit
(includes cap and drain)

2

48116

Module Cover Kit

3

15337

(includes items 1, 2, 4, 5)
Oil Fill Cap

4

15371

(includes item 6)
Intake “Tee” Fitting
(includes caps)

7

15495

Intake Cap (Acme)

8

15330

Intake Cap (1/4" flare - qty. 6)

9

41139

Vent Bolt (includes O-rings)

10

15338

Power Cord and Switch Assembly 11

15366

Motor

12

15665

Coupling

13

48103

Iso-Valve

TM

Assembly

14

15368

Base and Foot Assembly

15

15369

Replacement Module

16

15547

(includes items 1–9 & 14)
Seal Replacement Kit

(not shown) 15367

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Warranty coverage

Robinair CoolTech® vacuum pumps are war-
ranted against defects in material and workman-
ship for one year of normal use from the date of
purchase. See your distributor for warranty
details.

Out of warranty

A pump which is no longer covered by the one-
year warranty period and which fails to operate
properly should be returned to the distributor with
a full written explanation of the problem. The
distributor may suggest returning the pump to the
factory. Before returning an out-of-warranty
pump, review all maintenance procedures to
avoid an unnecessary return. Replacement parts
are available for doing your own service.

INST0001

4

3

2

1

7

6

5

10

11

12

9

8

13

14

NOTICE: Airborne Noise Emissions

This equipment has been tested for airborne noise emission per
the Council Directive for Machinery (89/392/EEC) Section 1.7.4
Instructions — Essential Health and Safety Requirements.

Sound levels do not exceed 80dB(A) actual value.

15

16
