Rivers Edge RE722 5' EXT FOR DOUBLE RUNG CLIMBING AID - Manual (Page 16)

Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 16
Operator's Manual
Rivers Edge Climbing Aids
16 WASHER, 5/16", BLACK NYLON WN516 11
1 WASHER FLAT 5/16" STANDARD BLACK ZN WF516B 10
1 WELDMENT, TREE HUGGER, BOLT-ON 5/16" BOLT SS24
BALLOON # Y T Q N O I T P I R C S E D # T R A P
1 48153B BOLT 1/4-20 X 2 HHCS GR5 BLK ZN 4
2 48300B BOLT 5/16-18 X 2-1/4 HHCS GR5 BLK ZN 1
3 48752B NUT 1/4-20 HFLTPLK BLK ZN 4
4 48753B NUT, FLANGED, TOP LOCK, 5/16-18 1
5 63281 SNAP PIN, 1/4 X 1-3/4, ROUNDED RETAINER 1
6 SS17 FTS RAPID STICK WITH SWEDGE 1
7 SS22 WELDMENT STEP PIVOT RAPID STICK 8
8 SS23 BRACKET, STRAP A TTACHMENT RAPID STICK 1
9
THIS DRAWING AND ALL INFORMATION CONTAINED HEREIN IS AND REMAINS THE PROPERTY RIVERS EDGE TREESTANDS
A
6
5
11
3
9
4
10
8
2
7
1
16 WASHER, 5/16", BLACK NYLON WN516 11
1 WASHER FLAT 5/16" STANDARD BLACK ZN WF516B 10
1 WELDMENT, TREE HUGGER, BOLT-ON 5/16" BOLT SS24
BALLOON # Y T Q N O I T P I R C S E D # T R A P
1 48153B BOLT 1/4-20 X 2 HHCS GR5 BLK ZN 4
2 48300B BOLT 5/16-18 X 2-1/4 HHCS GR5 BLK ZN 1
3 48752B NUT 1/4-20 HFLTPLK BLK ZN 4
4 48753B NUT, FLANGED, TOP LOCK, 5/16-18 1
5 63281 SNAP PIN, 1/4 X 1-3/4, ROUNDED RETAINER 1
6 SS17 FTS RAPID STICK WITH SWEDGE 1
7 SS22 WELDMENT STEP PIVOT RAPID STICK 8
8 SS23 BRACKET, STRAP A TTACHMENT RAPID STICK 1
9
THIS DRAWING AND ALL INFORMATION CONTAINED HEREIN IS AND REMAINS THE PROPERTY RIVERS EDGE TREESTANDS
A
6
5
11
3
9
4
10
8
2
7
1

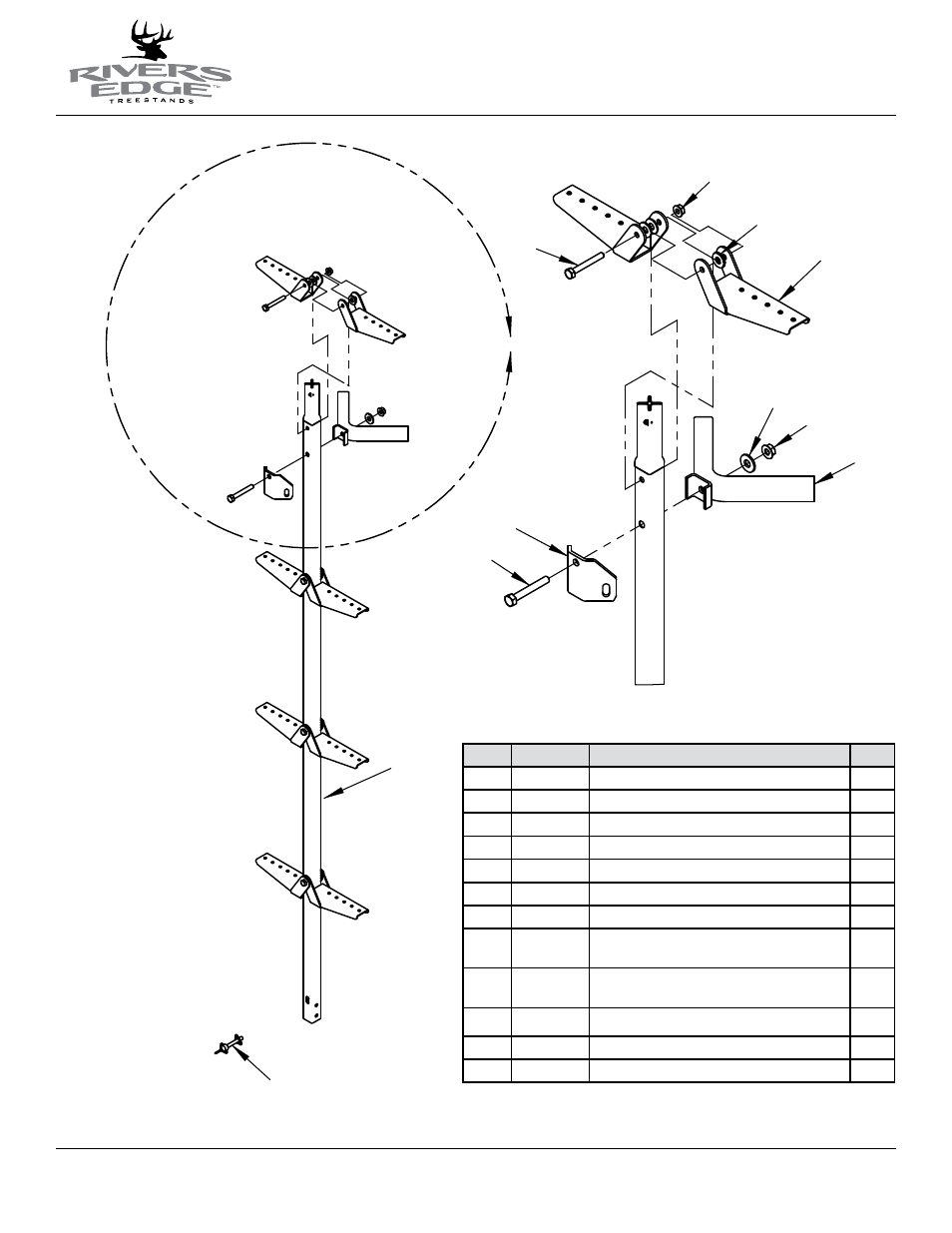

KEY # PART # DESCRIPTION QTY.
1 48153B BoLt 1/4-20 X 2" HHCS gR5 BLk ZN 4
2 53730B BoLt 5/16-18 X 2-1/2" HHCS gR5 BLk ZN 1
3 48752B NUt 1/4-20 HFLNyLk BLk ZN 4
4 60g5NyB NUt, NyLoCk 5/16-18" 1
5 63281 SNAP PIN, 1/4 X 1-3/4, RoUNdEd REtAINER 1
6 SS17 FtS RAPId StICk WItH SWEdgE 1
7 SS22 WELdmENt StEP PIvot RAPId StICk 8
8 SS23 BRACkEt, StRAP AttACHmENt RAPId
StICk
1
9 SS24 WELdmENt, tREE HUggER, BoLt-oN
5/16" BOLT
1
10 WF516B WASHER FLAt 5/16" StANdARd BLACk ZN 1
11 WN516 WASHER, 5/16", BLACk NyLoNg 16
-- 48749 StRAP W/CAm ANd SNAP Hook 1
