SET-UP

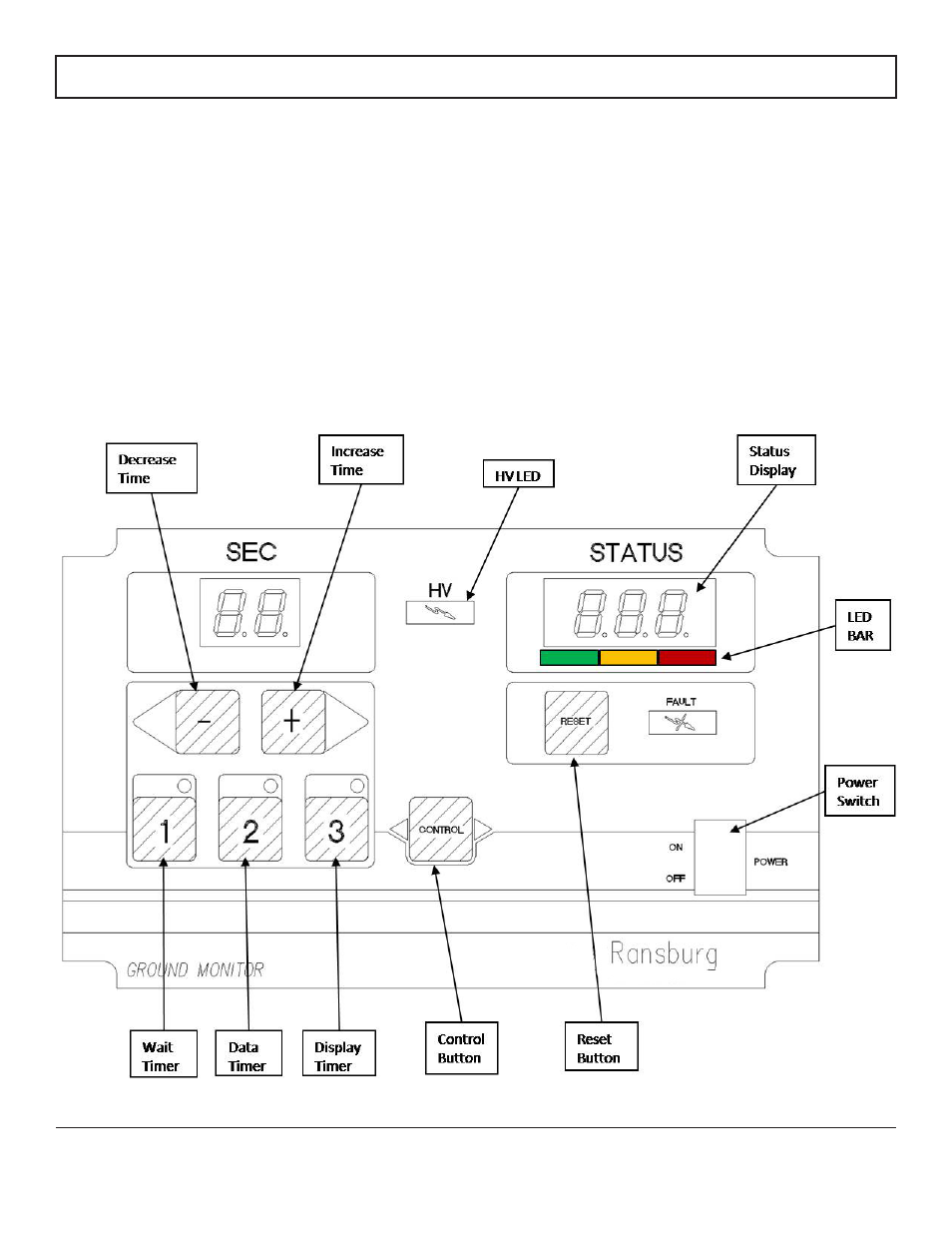

There are 3 timers to set before operating the Ground Monitor:

1. WAIT TIMER: The first timer is the wait time. This will be the time to wait before turning on High Voltage

after a signal to start the process has been received. (default: 3 sec)

2. DATA TIMER: The second timer sets how long the sample will be. This is High Voltage on time. The mini-

mum settable time is 2 seconds, the average time necessary to get a good reading is 3.5 seconds. (default:

5 sec)

3. DISPLAY TIMER: The third timer sets the amount of time the result is shown for. Note: if another part input

is received during this countdown, the entire process will start over at step 1. (default: 5 sec)
