2400D (1/2 HP) Band
Placement
3400D & 4400D (3/4 &
1 HP) Band Placement

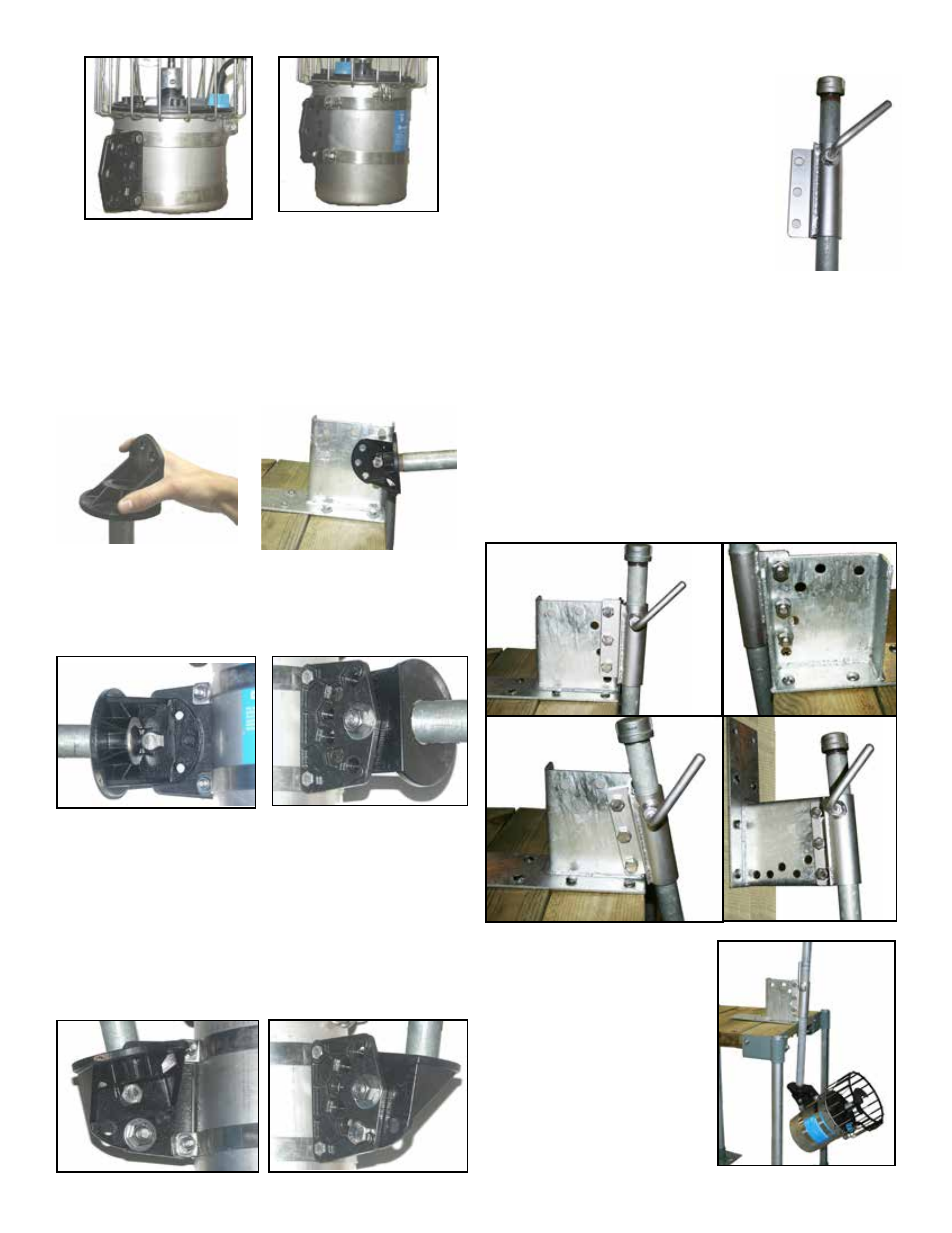

STEP FOUR:
First, thread the user supplied pipe extension (more than
10 ft is not recommended) into the 4 Hole Angle Bracket
by hand to start to ensure the threads are aligned properly.
Then temporarily mount it to the Dock Mount Base using
one of the ½” Hex Head Bolts included to tighten further.
Hand tighten only.
STEP FIVE:
Remove the 4 Hole Angle Bracket from the Dock Mount
Base and attach the 4 Hole Angle Bracket to the 9 Hole
Plate using a ½ - 13x1 ¼” Hex Head Bolt, ½” Flat Washer
and ½”-13 Nut. Hand tighten at this point.
STEP SIX:
Adjust the angle of the 4 Hole Angle Bracket. The deicer
can be set in 15 degree intervals. Once the 4 Hole Angle
Bracket is in the desired position, insert one ½ - 13x1 ¼”
Hex Head Bolts through the hole in the 9 Hole Plate that is
aligned with the hole in the 4 Hole Angle Plate. Use a ½”
Flat Washer and ½”-13 Nut to hold the bolt in place and
tighten using the 3/4” Wrench or Socket. Make sure all
bolts and nuts are now tight. (If more than one set of holes
align use the holes closest to the de-icer.)
STEP SEVEN:
Place the Pipe Clamp onto the pipe ex-
tension. Make sure the lock handle is
at top. Tighten lock handle temporarily.
Recommended: For extra security, at-
tach a 1” pipe cap on the top of the pipe
in case the lock handle accidentally
becomes loose.
STEP EIGHT:
Line up the 3 holes of the Pipe Clamp with the 3 vertical
holes on the Dock Mount Base (connected to the dock or
piling). Insert a ½ - 13x1 ¼” Hex Head Bolt into the top
hole of the clamp and base. Use the 1/2” Lock Washer and
½-13” Nut to hold the bolts in place. Repeat with the two
remaining holes and use the 3/4” Wrench and 3/4” Socket
and Ratchet to tighten all three. (Use the 3 side holes shown
in picture for straight mounting on a dock, use the 3 angled
holes for an angled mount on a dock, or use the top 3 holes
shown in picture when mounting to a piling.) Now you can
adjust the position of the deicer by using the lock handle.
Your Universal Dock Mount is now ready for use.
