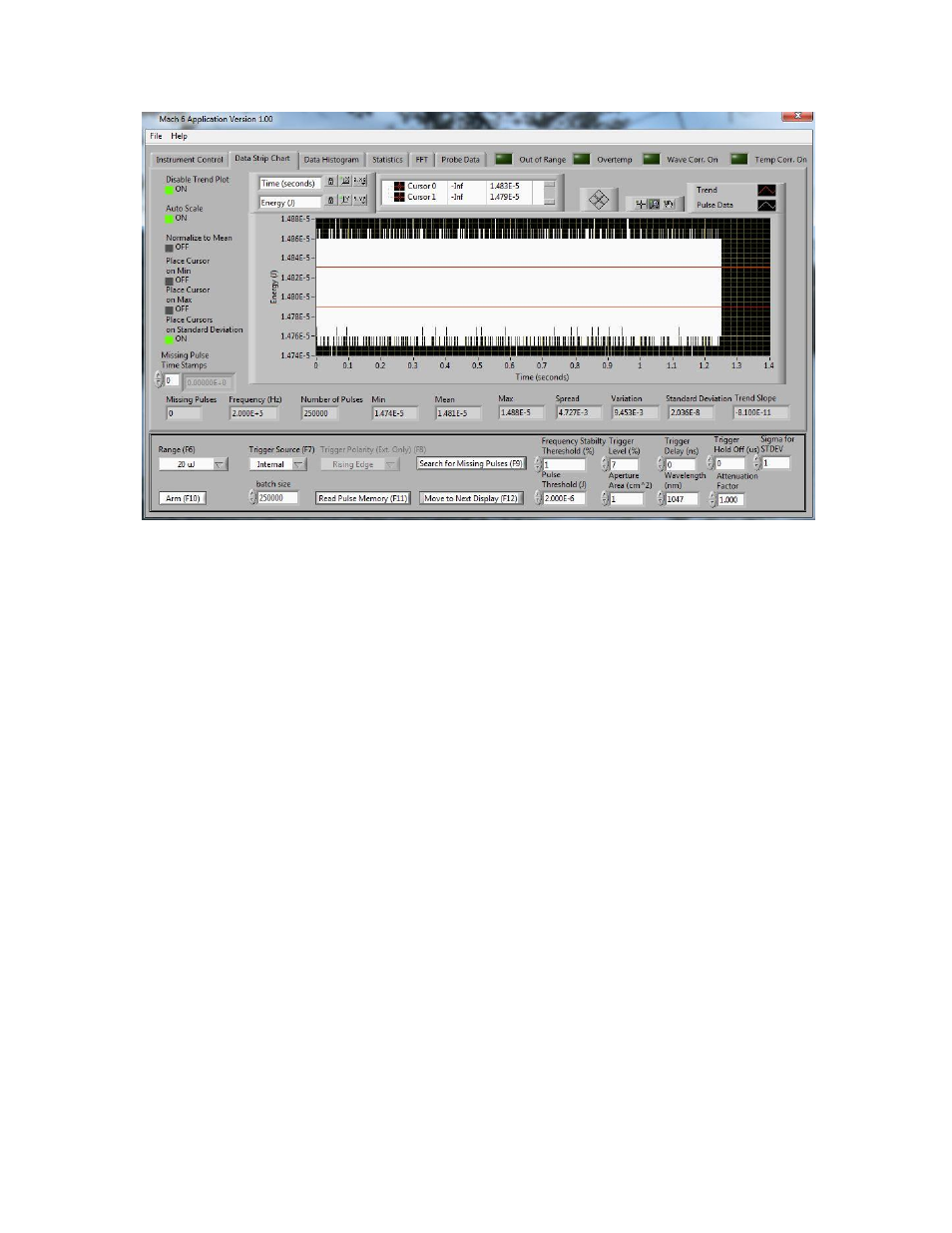

Figure 4, Strip Chart Display
The functions of the controls or indicators are:
Energy Plot
A strip chart of the retrieved data set, if the target has been set to display, or if a data file
has been copied into the displays. The trend (slope) of the data is also plotted.
Variation
Variation is defined as (Max - Min) / Mean.
Trend Slope
The slope of the data trend line.
Auto Scale
Auto Scales the Y axis of the strip chart.
Normalize to Mean
Plots the data as data / mean.
Place Cursor on Min
