DIVERT VALVE
TO PROCESSED WATER HOSE
VACUUM HOSE
RECYCLED GLYCOL HOSE
ELBOW
FROM PROCESS TANK

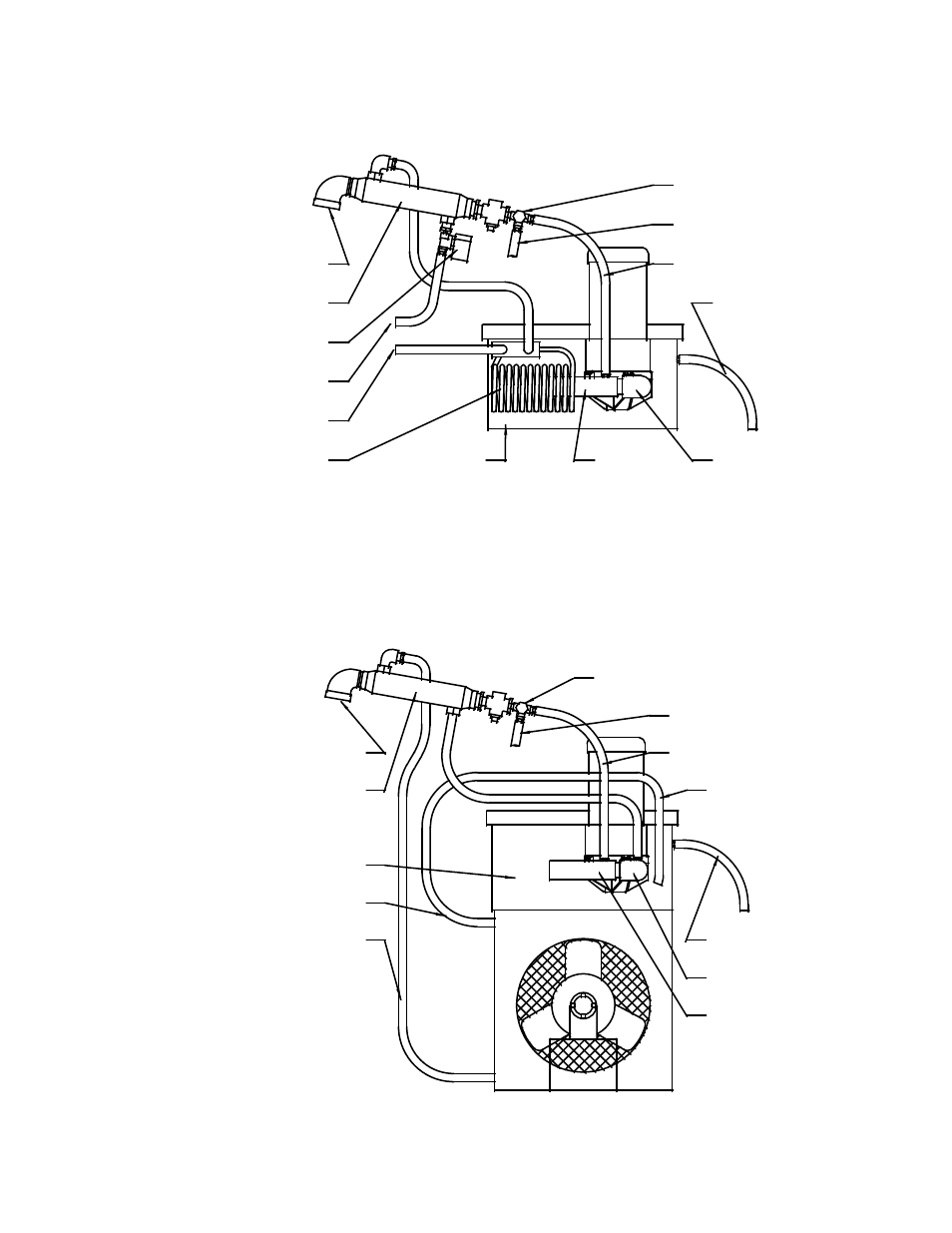

BE-15 "WATER-COOLED" DISTILLATE PIPING AND HOSE LAYOUT
CONDENSER
WATER IN
WATER OUT
COOLING COIL
PUMP RESERVOIR
WATER SOLENOID VALVE
ASPIRATOR
DIVERT VALVE
TO PROCESSED WATER HOSE
VACUUM HOSE
RETURN FROM RADIATOR
RECYCLED GLYCOL HOSE
ELBOW
ASPIRATOR
RADIATOR IN
RADIATOR OUT
PUMP RESERVOIR
FROM PROCESS TANK
CONDENSER
BE-15C "AIR-COOLED" DISTILLATE PIPING AND HOSE LAYOUT
