7
-EN
Accessory List
• Marine CD receiver ............................................................1
• Power cable ........................................................................1
• USB cable ...........................................................................1
• Interface cable for iPod .....................................................1
• Rubber Cap ........................................................................1
• Hex Bolt ..............................................................................1
• Screw (M4x30)....................................................................6
• Support Strap.....................................................................1
• Installation Template .........................................................1
• Owner’s Manual .......................................................... 1 set
Turning Power On and Off
Press TUNER/SOURCE to turn on the unit.
• The unit can be turned on by pressing any other button except
Rotary encoder.
Press and hold TUNER/SOURCE for at least 2 seconds
to turn off the unit.
• The first time power is turned on, the volume will start from level 12.
Initial System Start-Up
Be sure to press the RESET switch when using the unit for the first
time, after changing the boat battery, etc.
1
Turn off the unit power.
2
Slide (OPEN) to open the front panel.
3
Press RESET with a ballpoint pen or similar pointed
object.
Multi-Zone Volume Control
Press VOL.ZONE to switch the volume mode, and the
appropriate indicator lights up.
ALL ZONE1 ZONE2 ALL
• When the ZONE1 or ZONE2 is selected, its Volume Level is
adjustable, and another Volume Level is fixed.
• If ALL is selected, when the Volume Level for ZONE1 and ZONE2 is
different, the Volume Level that reaches to 0/35 cannot be adjustable.
Adjusting Volume
Turn the Rotary encoder until the desired sound is
obtained.
Lowering Volume Quickly
Activating the Audio mute function will quickly lower the volume level.
The unit has 3 mute modes and 6 mute levels.
Press and hold MUTE for at least 2 seconds to select
one of the three MUTE modes.
Press MUTE to activate the selected mode.
ALL ZONE1 ZONE2 ALL
Press MUTE again, and the mute function is canceled.
• For the Mute Level, refer to “Setting the MUTE Level (MUTE
LEVEL)” (page 24).
About Auto Save
The adjusting/setting content of items in the table below will remain
even when the battery is disconnected.
• The setting content of the items with “*” will be saved in 10 seconds
after setting.

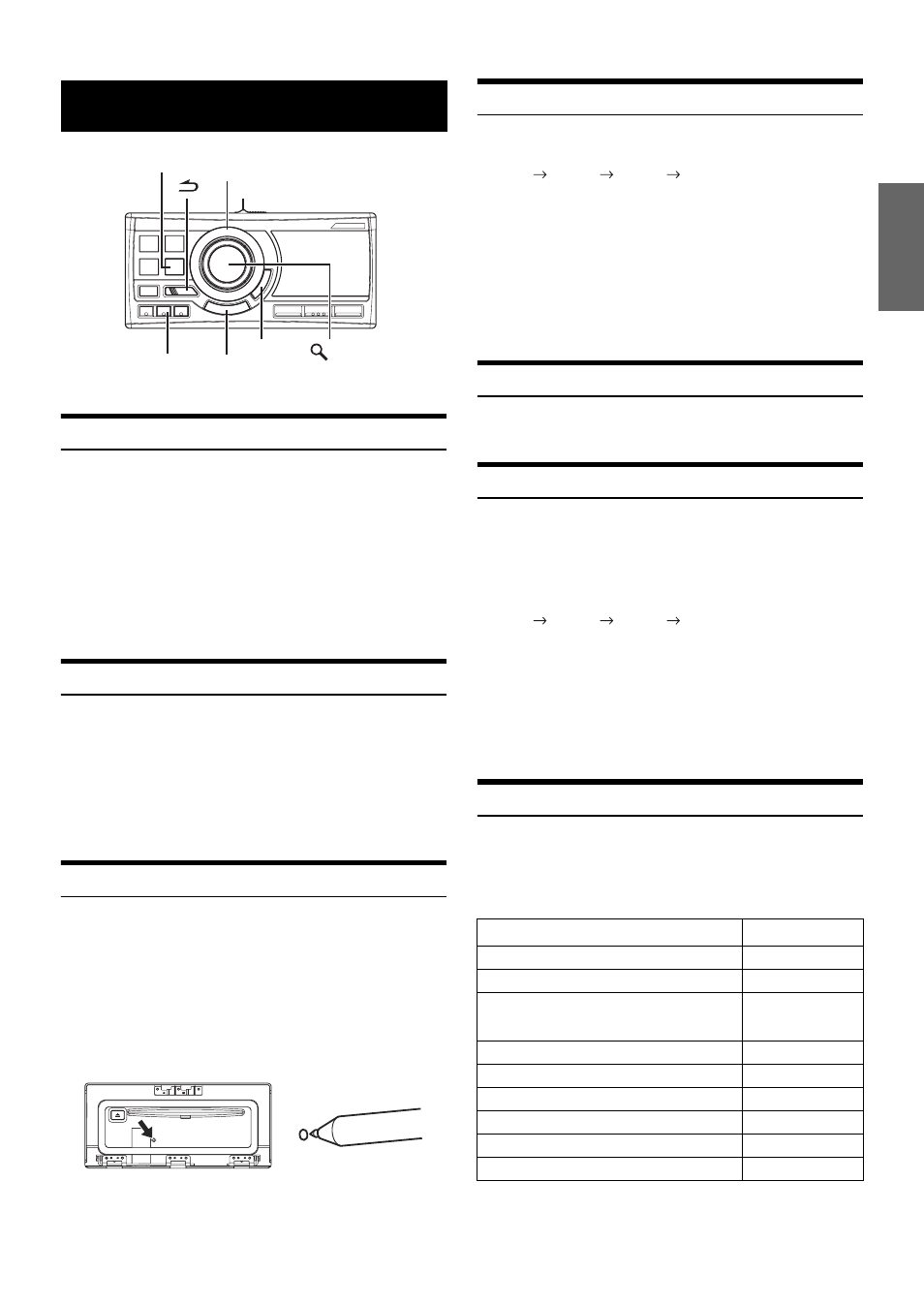

Getting Started
FUNC./SETUP
/ENTER
(OPEN)
Rotary encoder
TUNER/SOURCE
MUTE
VOL.ZONE
ALL : All Speaker Volume control (Front, Rear, Subwoofer,
ZONE2 Speaker).
ZONE1 : Volume control for 3 Preouts (Front, Rear, Subwoofer).
ZONE2 : Volume control for ZONE2 Speakers only (ZONE2
Speaker).
ALL : ZONE1 and ZONE2 Enter Mute mode.
ZONE1 : Only ZONE1 Enters Mute mode.
ZONE2 : Only ZONE2 Enters Mute mode.
Items to be adjusted/set Reference page
Multi-Zone Volume Control* page 7
Lowering Volume Quickly* page 7
Adjusting Subwoofer/Bass/Treble/Balance
(Between Left and Right)/Fader (Between Front and
Rear)/Loudness/Defeat
page 20
Setting the Bass Control page 21
Setting the Treble Control page 22
Adjusting the High Pass Filter page 22
Search Position Memory page 16, page 18
Presetting Stations Manually page 9
SETUP Setting page 23 ~ page 27
