Appendix I: Data Output Specifications
04/09 14 51142 Revision 2
• EOT , HEX 04 is transmitted when the following occur:
─ Power up occurs and scale is NOT at ZERO.
─ The scale senses Overcapacity
• Transmission occurs when a CR (Hex 0D) is received.
*
Avoirdupois Units – noun
A system of weights based on the 16-ounce pound
(7,000 grains)
Serial Data Output Format
• 9600 baud • Odd parity
• 7 bits • 2 stop bits
• RS232 cable (part 21619), DB9 female

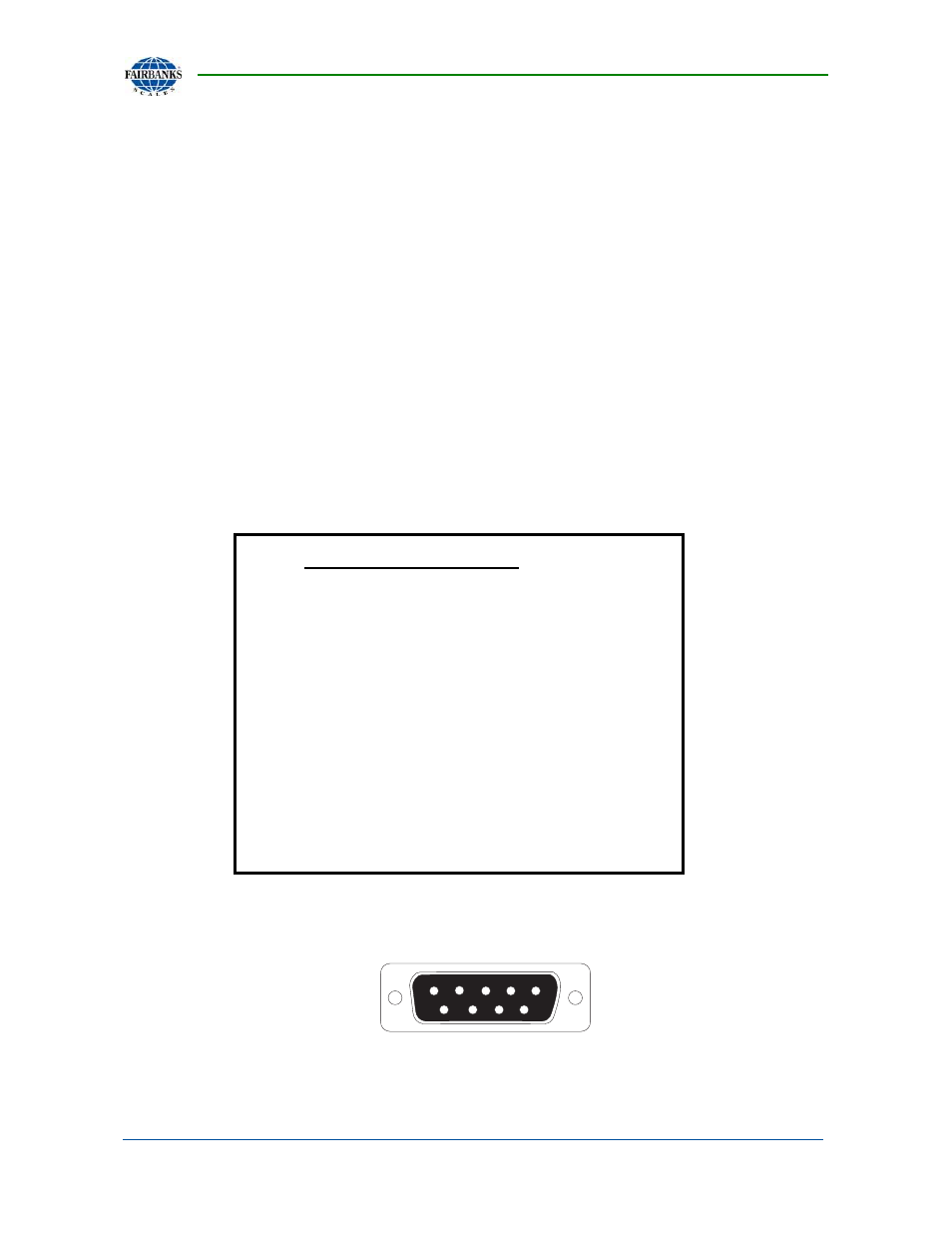

• DB9 Female Connector (computer end of cable)
Pin Number Signal
1 Ground
2 Transmit (Tx)
3 Receive (Rx)
4
5
6
7
8
9 +12VDC
5 1
6 9
2450a
