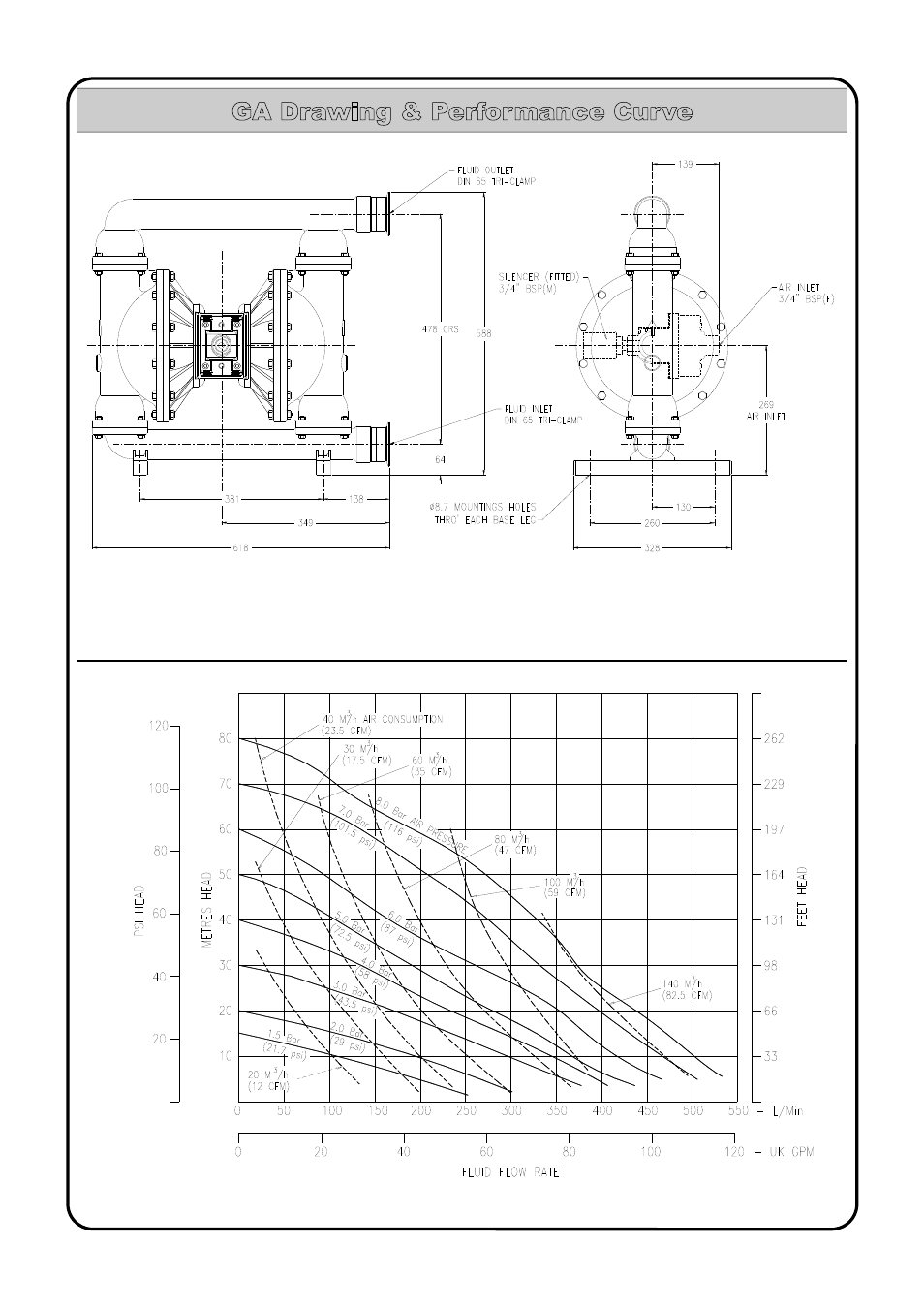

GA Drawing & Performance Curve
General Assembly :- B50 Metallic FDA Pump, all dimensions +/- 2mm.
Note : Pump shown is fitted with DIN 65 Tri-Clamp connections as standard, please refer to Part No. table on page 10 for other optional end connections.
Overall dimensions should remain the same.
