RADEON™ Using Video In/Video Out 5
Using SCART Connectors for European Televisions
The SCART connector supports only the Composite video format, which is the
most common type. Figure 2 shows how to connect to a SCART connector with a
Composite cable.
If your television supports S-Video (also called S-VHS) video input, you can use
an S-Video cable (available in most consumer electronic stores) to view your PC
on a television.
Using and Adjusting Video Out
Enabling and Disabling the Television Display
1 Start Windows
®
.
2 Click Start.
3 Point to Settings, then click Control Panel.
4 Double-click Display.
5 Click on the ATI Displays tab.
Windows
®
98 / Me / 2000 users: Click on the Settings tab and then the
Advanced button, before clicking the ATI Displays tab.
6 Click on the green enable/disable button next to the word “TV” to enable/
disable television display.
7 Click OK or Apply to save the changes you have made.
For information about how to use television display and the ATI Displays
Properties page, click the Help button.

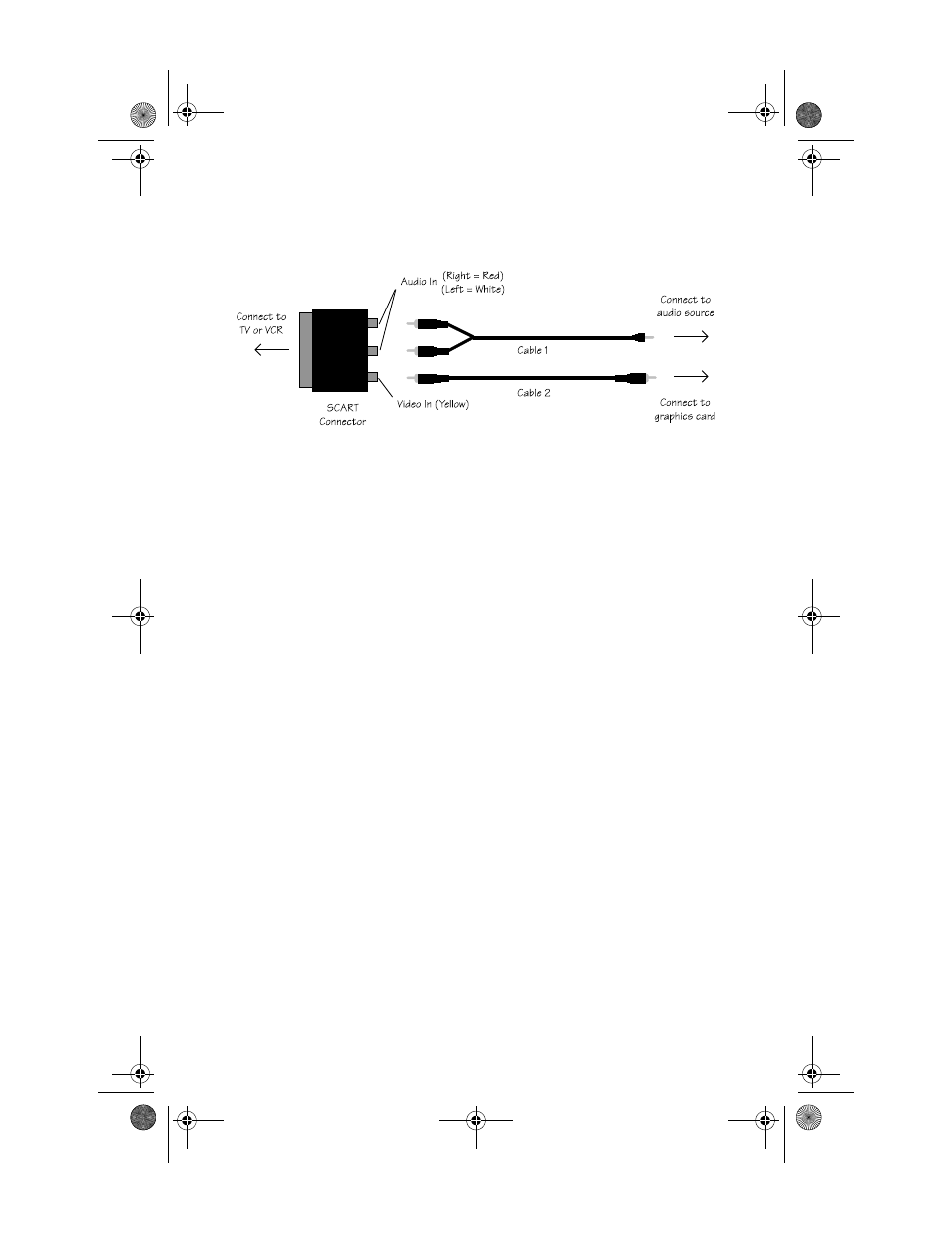

Figure 2. Using a SCART connector with a Composite cable
