ƒ 1 Step Operation - 1 ST H/L Check
At [23: 1 ST Step Distance], the judging of an abnormally high or low load is possible.
If a load value greater than [15: 1 ST Step Load] is sensed before the press exceeds
[23: 1 ST Step Distance], a “1 ST Rate Low” reject will occur and press operation will
stop.
Upon reaching [23: 1
ST Step Distance], if [17: Threshold Load] has not been
reached, a “1 ST Rate High” reject will occur and press operation will stop.

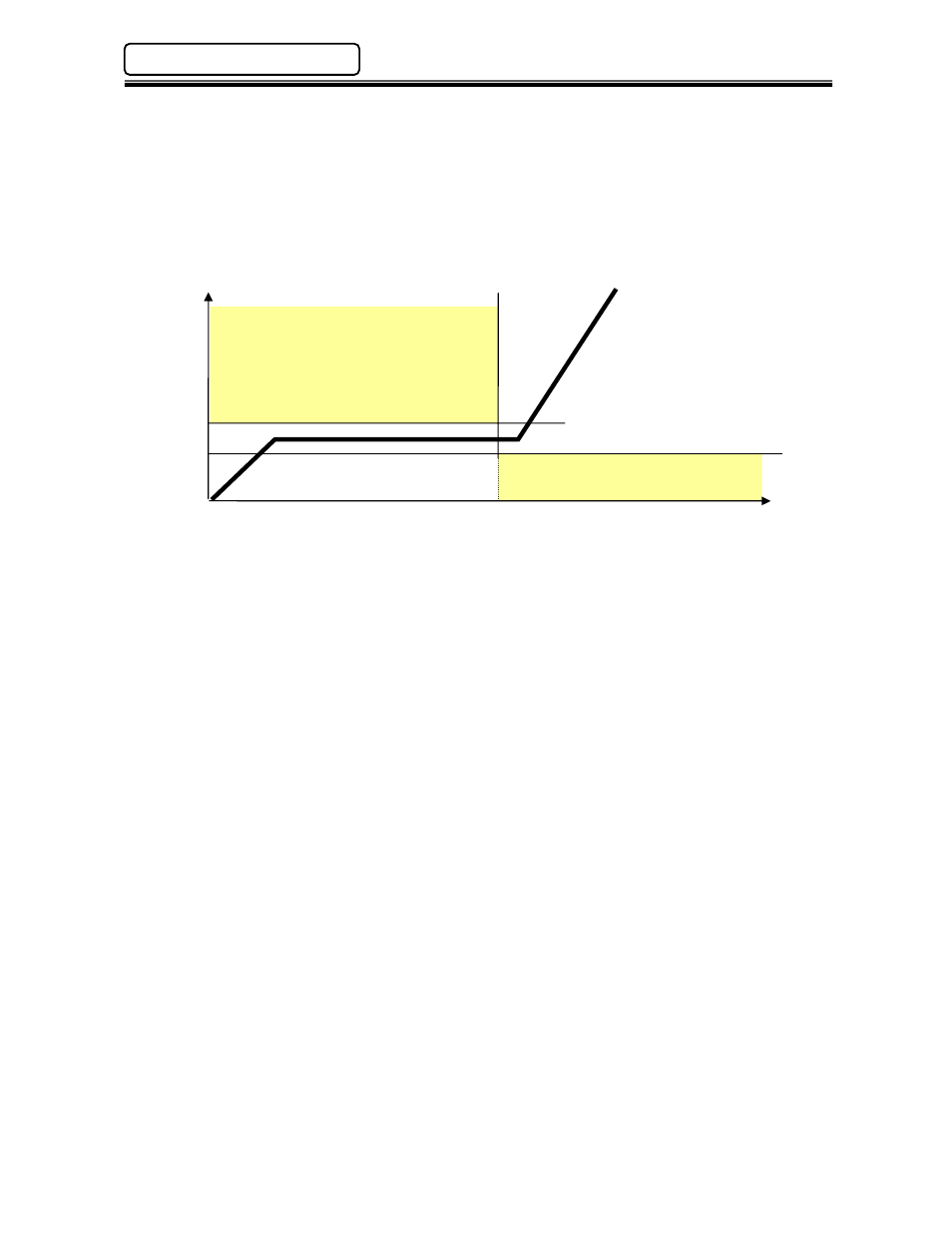

Chapter 6: System Operation
1 ST Low Check Judgment Zone
(1 ST Rate High Reject)
1 ST High Check Judgment Zone
(1 ST Rate Low Reject)
Load
[15] 1 st Load
[23] 1 st Distance
[17] Threshold
Distance
