10.0 CLASS 3200 METER
OPERATING MODES
The E-Mon D-Mon
®
Class 3200 meter is used to monitor electric power usage of
individual loads after the utility meter and store kW and kVAR data for automatic meter
reading.

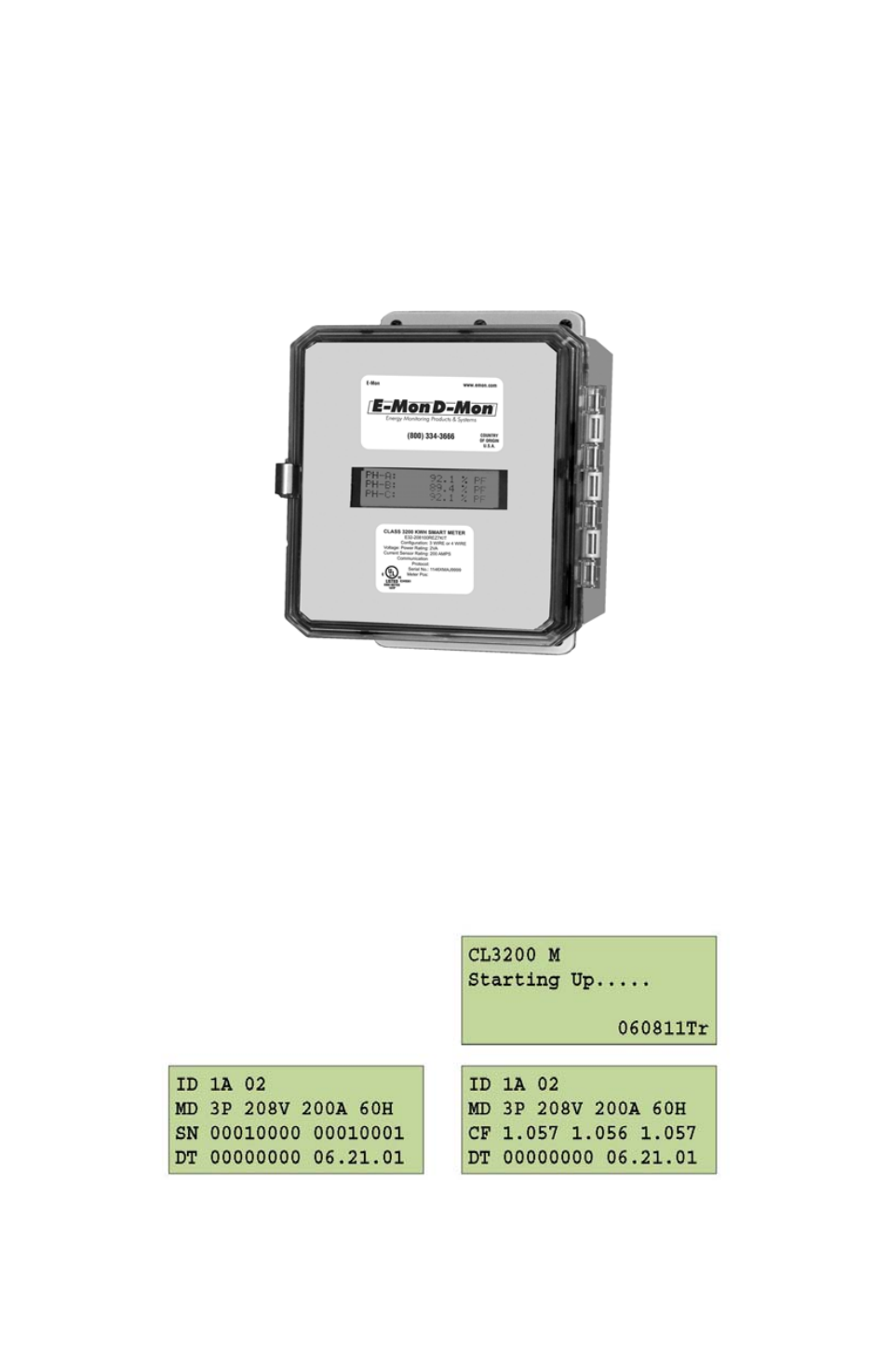

Fig. 21. Class 3200 Stand Alone Meter with 4 Line Display.
10.1 Start Up Screens
When the meter starts up, the screen displays firmware image type.
CL3200 and M, After approximately 4 seconds, the screen displays active
configurations: EZ7 ID, Meter configurations – phase, voltage, amperage, Calibration
factors or serial number, Date/time and firmware version.
Fig. 22. Start Up Screens.
