Measurements are intended as a reference only and are subject to change without notice. NOTE: Data Error may be ±1"
Unit: mm

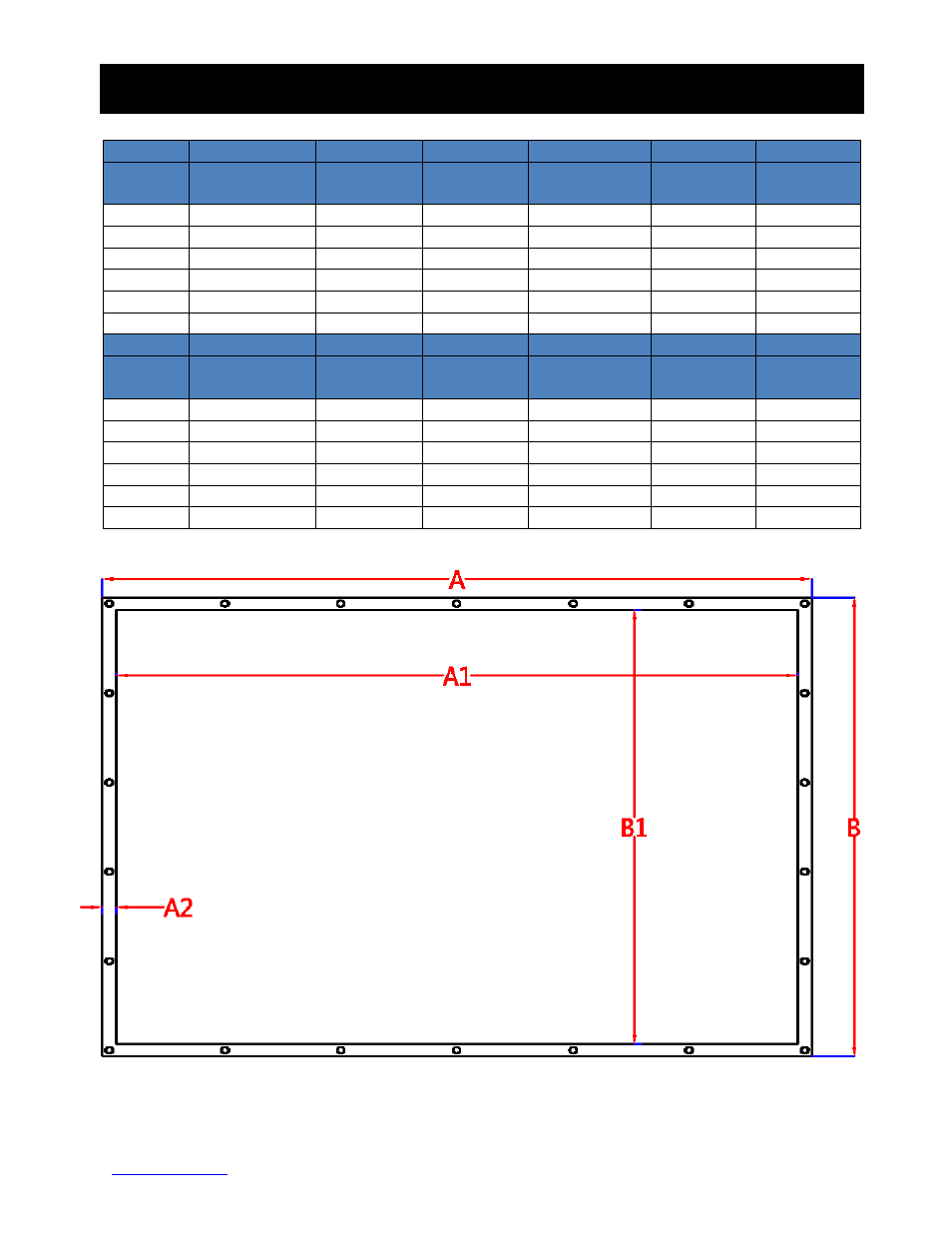

Model Screen Diag. &
Aspect Ratio
Total Width
(A)
View Width
(A1)
Border Width
(A2)
Total Height
(B)
View Height
(B1)
DIY94V 94” (4:3) 1974 1894 40 1500 1420
DIY145V 145” (4:3) 3010 2930 40 2278 2198
DIY193V 193” (4:3) 3988 3908 40 3010 2931
DIY114H 114” (16:9) 2604 2524 40 1500 1420
DIY133H 133” (16:9) 3010 2930 40 1729 1649
DIY236H 236” (16:9) 5290 5209 40 3010 2930
Unit: inch
Model Screen Diag. &
Aspect Ratio
Total Width
(A)
View Width
(A1)
Border Width
(A2)
Total Height
(B)
View Height
(B1)
DIY94V 94” (4:3) 77.7 74.6 1.6 59.1 55.9
DIY145V 145” (4:3) 118.5 115.4 1.6 89.7 86.5
DIY193V 193” (4:3) 157.0 153.8 1.6 118.5 115.4
DIY114H 114” (16:9) 102.5 99.4 1.6 59.1 55.9
DIY133H 133” (16:9) 118.5 115.4 1.6 68.1 64.2
DIY236H 236” (16:9) 208.3 205.1 1.6 118.5 115.4
Outdoor Screen Dimension Table
