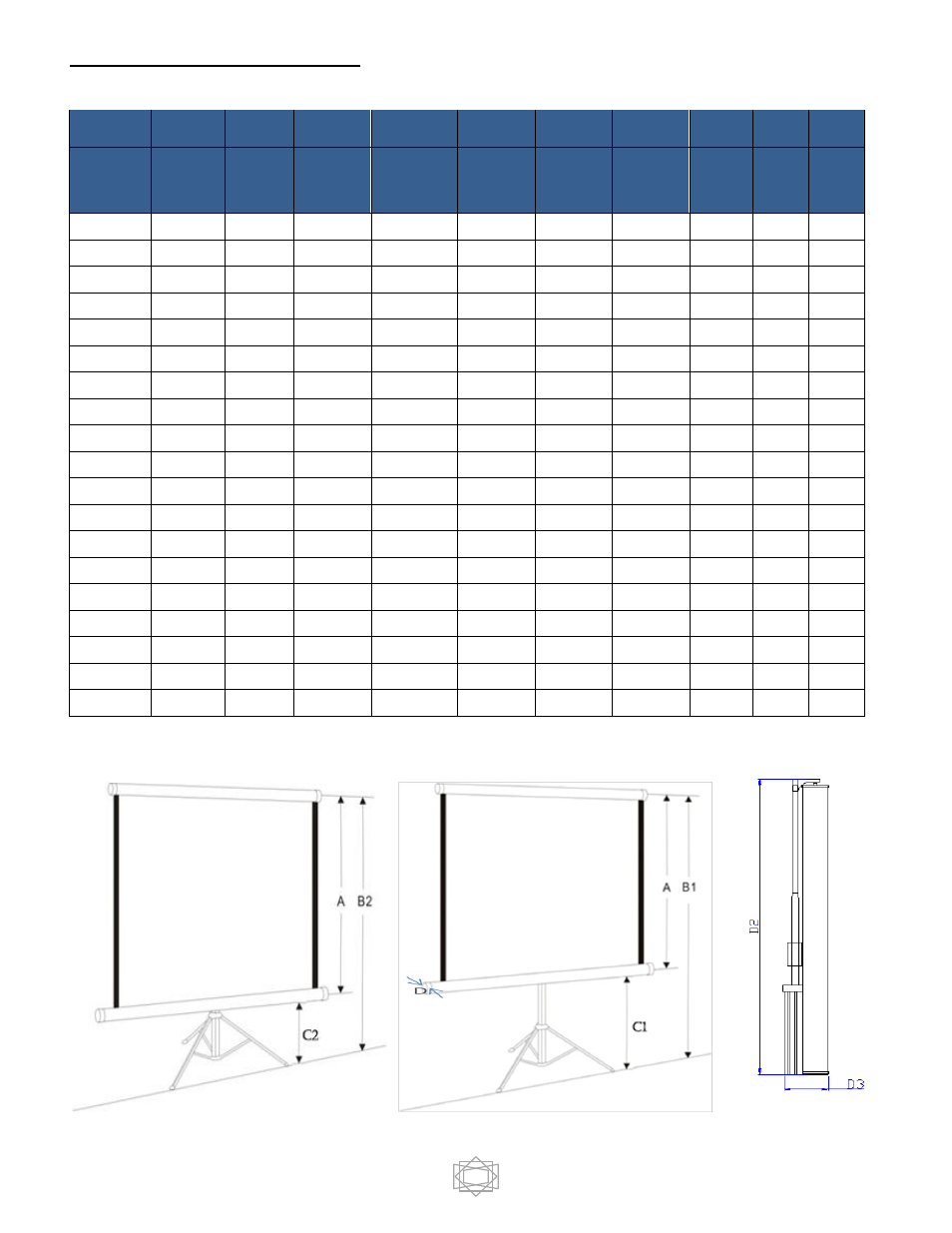

Tripod Series Dimension Table
Unit:
inches
Model
Nominal
Diagonal
View
Size
H x W
Screen
Size H x
W (A)
Top of
Screen at
Highest
Level (B1)
Top of
screen at
lowest
level (B2)
Screen
case at
highest
point (C1)
Screen
case at
lowest
point (C2)
End
cap
size (D)
Case
length
closed
(D2)
Case
width
closed
(D3)
T71NWS1
71"(1:1)
50"x50"
53"x53"
111.8
71.5
35.6
16.9
2.7
58.0
5.9
T71UWS1
71"(1:1)
50"x50"
53"x53"
111.8
71.5
35.6
16.9
2.7
58.0
5.9
T85NWS1
85"(1:1)
60"x60"
63"x63"
128.7
87.8
37.5
16.9
2.7
68.0
5.9
T85UWS1
85"(1:1)
60"x60"
63"x63"
128.7
87.8
37.5
16.9
2.7
68.0
5.9
T99NWS1
99"(1:1)
70"x70"
73"x73"
147.2
97.6
35.5
16.9
2.7
78.0
5.9
T99UWS1
99"(1:1)
70"x70"
73"x73"
147.2
97.6
35.5
16.9
2.7
78.0
5.9
T113NWS1
113"(1:1)
80"x80"
83"x83"
148.4
107.5
33.4
16.9
2.7
88.0
5.9
T113UWS1
113"(1:1)
80"x80"
83"x83"
148.4
107.5
33.4
16.9
2.7
88.0
5.9
T119NWS1
119"(1:1)
84"x84"
87"x 87"
148.4
111.8
37.1
16.9
2.7
91.9
5.9
T119UWS1
119"(1:1)
84"x84"
87"x 87"
148.4
111.8
37.1
16.9
2.7
91.9
5.9
T136NWS1
136"(1:1)
96"x96"
99"x99"
148.4
123.6
40.8
16.9
2.7
104.0
5.9
T136UWS1
136"(1:1)
96"x96"
99"x99"
148.4
123.6
40.8
16.9
2.7
104.0
5.9
T84UWV1
84"(4:3)
50"x67"
55"x70"
118.1
79.9
35.4
16.9
2.7
75.0
5.9
T100UWV1
100"(4:3)
60"x80"
65"x83"
139.4
89.8
53.4
16.9
2.7
88.0
5.9
T120NWV
120"(4:3)
72"x96"
77"x99"
148.4
102.0
65.0
16.9
2.7
104.0
5.9
T120UWV1
120"(4:3)
72"x96"
77"x99"
148.4
102.0
65.0
16.9
2.7
104.0
5.9
T92UWH
92"(16:9)
45"x80"
50"x83"
124.4
74.8
68.3
16.9
2.7
88.0
5.9
T100UWH
100"(16:9)
49"x87"
54"x90"
128.3
78.7
68.3
16.9
2.7
95.2
5.9
T120UWH
120"(16:9)
59”x105”
64"x108"
138.2
89.0
62.4
16.9
2.7
112.6
5.9
*Measurement dimensions are intended as a reference only and subject to change without
notice
Note:Data Error may be ±1"
