Installation and Wiring
10 AXB-TC and AXB-TCR Television Controllers (& Receivers)
Installation
Install the television controller on any flat surface or inside the optional SE-TC Security Enclosure, as
described below:
1. Mount the Axcess Central Controller where it will be used. Then, connect the power supply.
2. Route the Axlink power and data cable, CC-IR TV Sensor cable, CC-IRC IR Emitter cable, and 12
VDC power supply from the television to the television controller's location.
3. Drill four #6-32 holes into the SE-TC mounting surface in the locations shown in FIG. 8.
4. Mount the SE-TC.

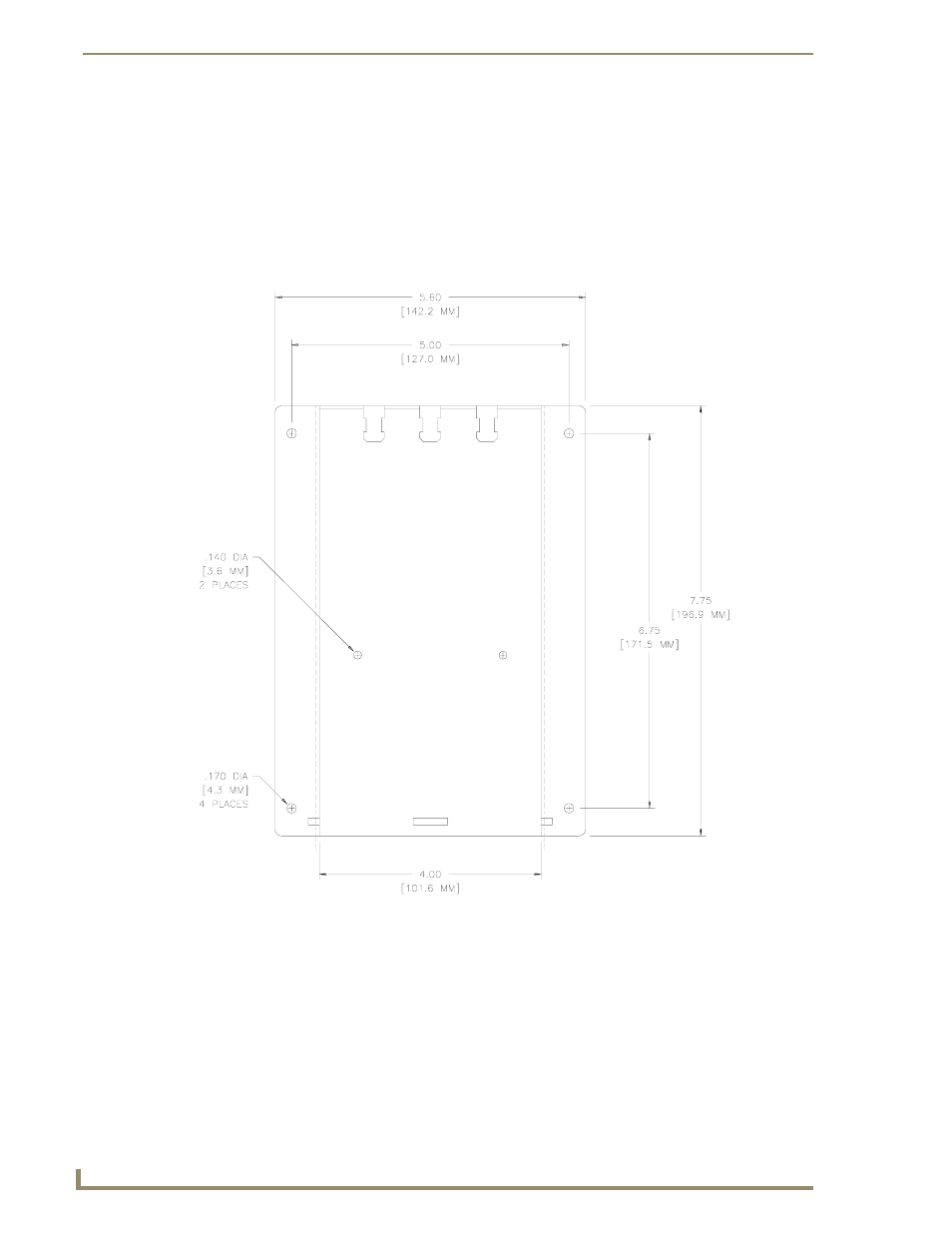

FIG. 8 SE-TC mounting dimensions
