PS-5275-051-ADL
Foot Mount Geared
• 3/4" Shaft
• 5:1 Gear Ratio
• Top side, right side or
left side connection
• Available in ratios 2:1 thru 36:1 (Consult Factory for availability)
3
■ 6 real world DC outputs, and 8 DC inputs mounted on the front of
the PL-1746 module.
(-C02 = sourcing
† outputs, -C03 = sinking † outputs)
■ Up to 32 PLS output channels available through the 1746 back-
plane.
■ 2 analog values based on speed, available through the backplane.
These are "tunable" to a specific machine speed range.
Optional Features
■ Incremental Encoder input.
■ Shift register with 256 shifts.
■ Output assignment allowing the user to choose which six (6)
channels are the real world power outputs.
All other features of the PL-1746-C02/C03 models are the same as
those for standard PL-1746 series modules.

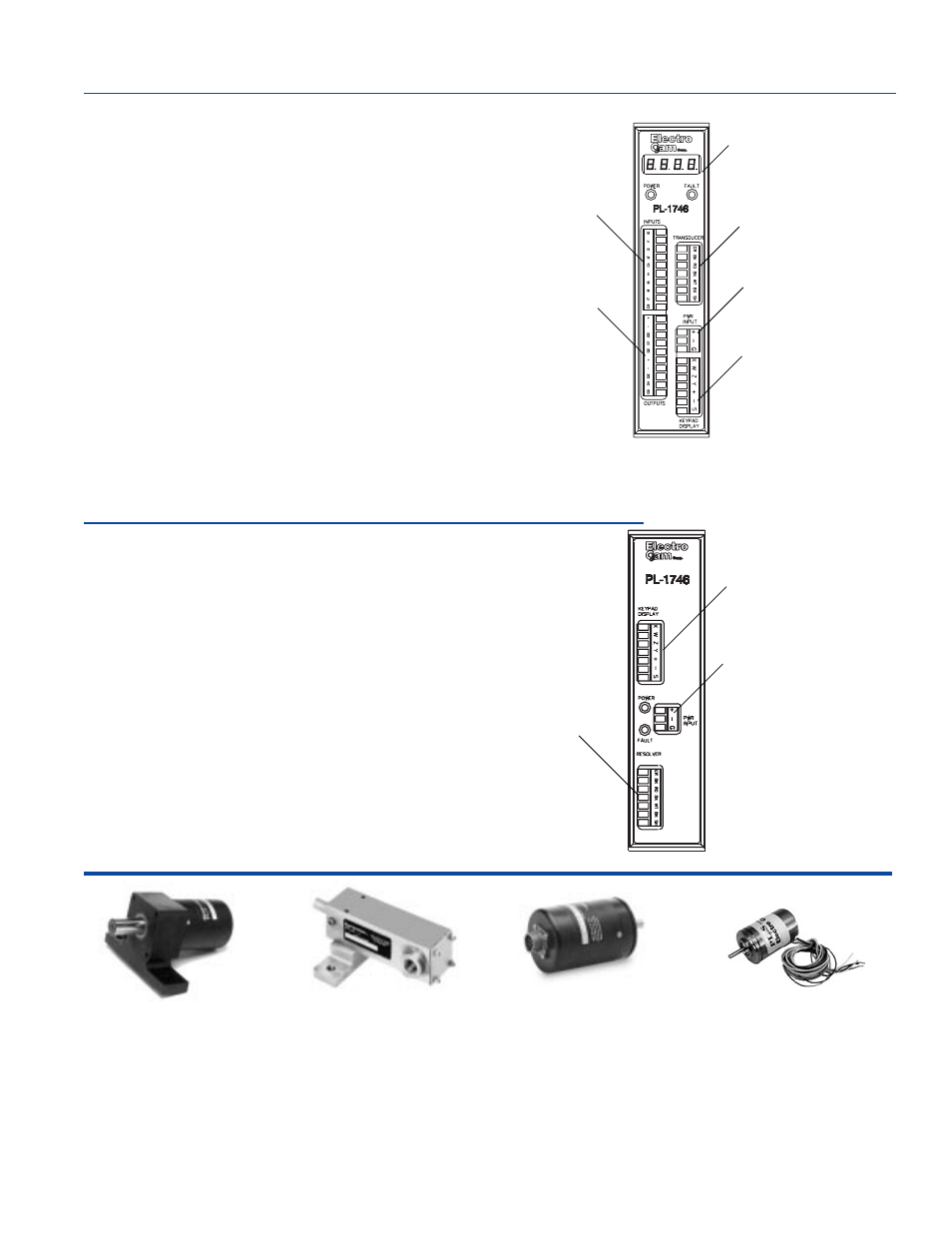

PL-1746-C02/C03 Plug-In Module
PL-1746-C04 Plug-In Module
■ Up to 32 PLS output channels available through the 1746 back-
plane.
■ 2 analog outputs available through the backplane.
All other features of the PL-1746-C04 model are the same as those
for standard PL-1746 series modules.
† See page 4 for sinking/sourcing definitions.
PL-1746-C04
PS-5262-11-CTG
Stainless Steel
• 5/8" Shaft
• Left side or right side
connection
PS-5238-11-SDR
Servo Mount
• 3/8" Shaft
• Top side, right side,
left side or rear connection
PS-5212-11-SVW
Unhoused Servo
Mount
• .120" Shaft
• Standard size 11
Power Input
Keypad/Display
Resolver
LED Display
Power Input
Keypad/Display
PL-1746-C02/C03
Resolver
or
Encoder
Outputs
Inputs
