WIRING DIAGRAMS

WIRING DIAGRAMS

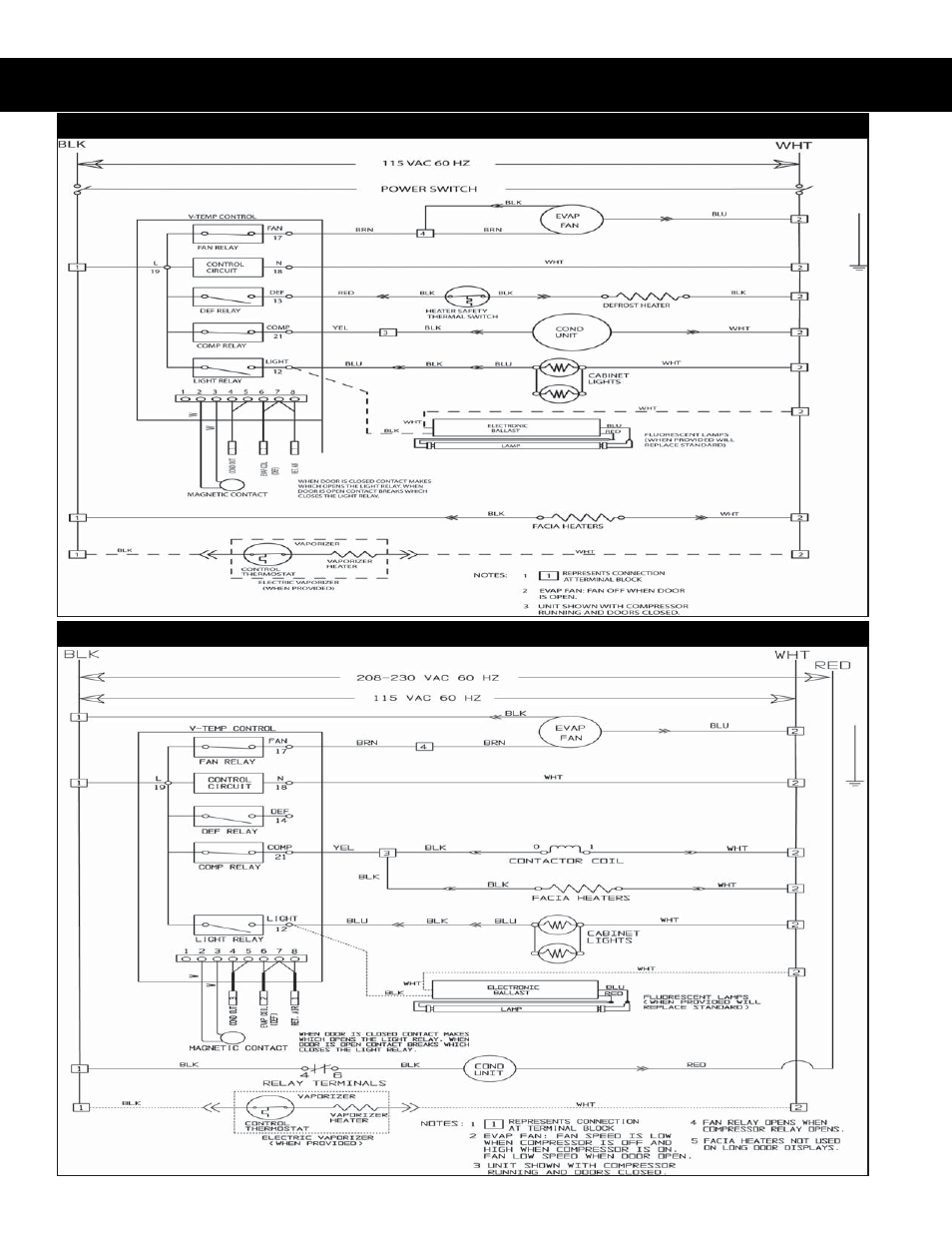

1, 2 & 3 Section Refrigerator Wiring Diagram for 115 Volt/15 Amp & 20 Amp

1, 2 & 3 Section Refrigerator Wiring Diagram for 115 Volt/208-230 Volt Condensing Unit
