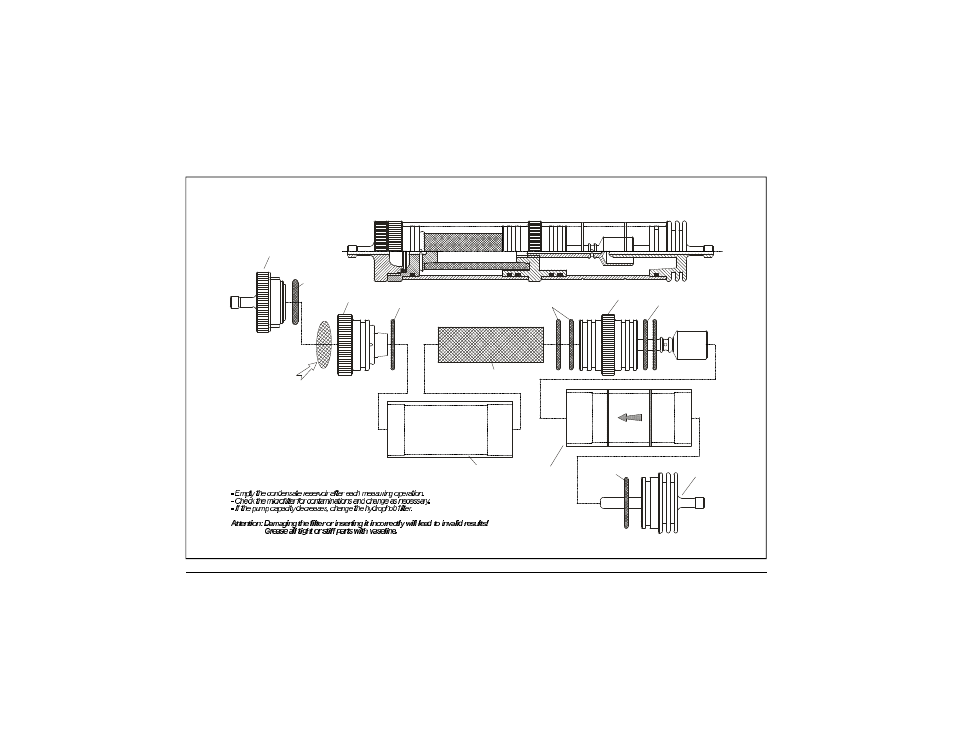

GAS PROCESSING

(Part No. VK-00190)

O-Ring 23x2

Part No

20370

ø 23.5mm Hydrophob Filter
Grating structure must be
directed outward !

O-Ring 23x2

Part No

20370

Part No

21990

Part No

20594

O-Ring 23x2

Part No

20370

O-Ring 18x3

Part No

20365

Part No

20592

Part No

20591

Part No

21778

Part No

20596

Maintenance

44

Part No

20921

Microfilter
Part No.20919

Part No

20370

O-Ring 23x2

O-Ring 23x2
