Wiring

1. Check voltage, phase and hertz

available against motor nameplate for
compatibility.

2. Be sure leads for dual voltage motors

are connected properly.

3. Install power and control wiring to

magnetic starter in accordance with the
National Electric Code and local
requirements.

Coupling Alignment

(if applicable)

Coupling between pump and motor has
been properly aligned at the factory.
However, shipping, rigging and piping of the
system often disturb this, making
realignment necessary.

Check by applying a straight edge across
coupling halves at 90 degrees and 180
degrees. The straight edge should rest
evenly on both coupling havles.

If necessary, shim pump and/or motor to
bring coupling into perfect alignment
horizontally and vertically.

Check pump for free rotation by turning
coupling by hand.

Accessories

Optional accessories should be installed in
accordance with the manufacturer’s
instructions.

Preheat kit: If the tank is equipped with a
preheat kit, follow mounting and wiring
instructions included in preheat kit parts box.

System Start Up

1. Inspect all pipe connections to be sure

they are secure. Examine all controls
and valves to assure each is operating
freely and proplerly.

2. Thoroughly flush vessel and all

associated pping until there is no
indication of rust or foreign debris.

3. Make certain all instruments and

gauges are operating and indicating
properly.

4. Make certain pump rotates in direction

shown by arrow on pumping casing.

5. Open all valves on suction, discharge

and make-up water lines.

6. Make sure there is sufficient water in

receiver (approximately

full).

CAUTION

DO NOT run pump dry. Irreparable
damage to the seal can result.

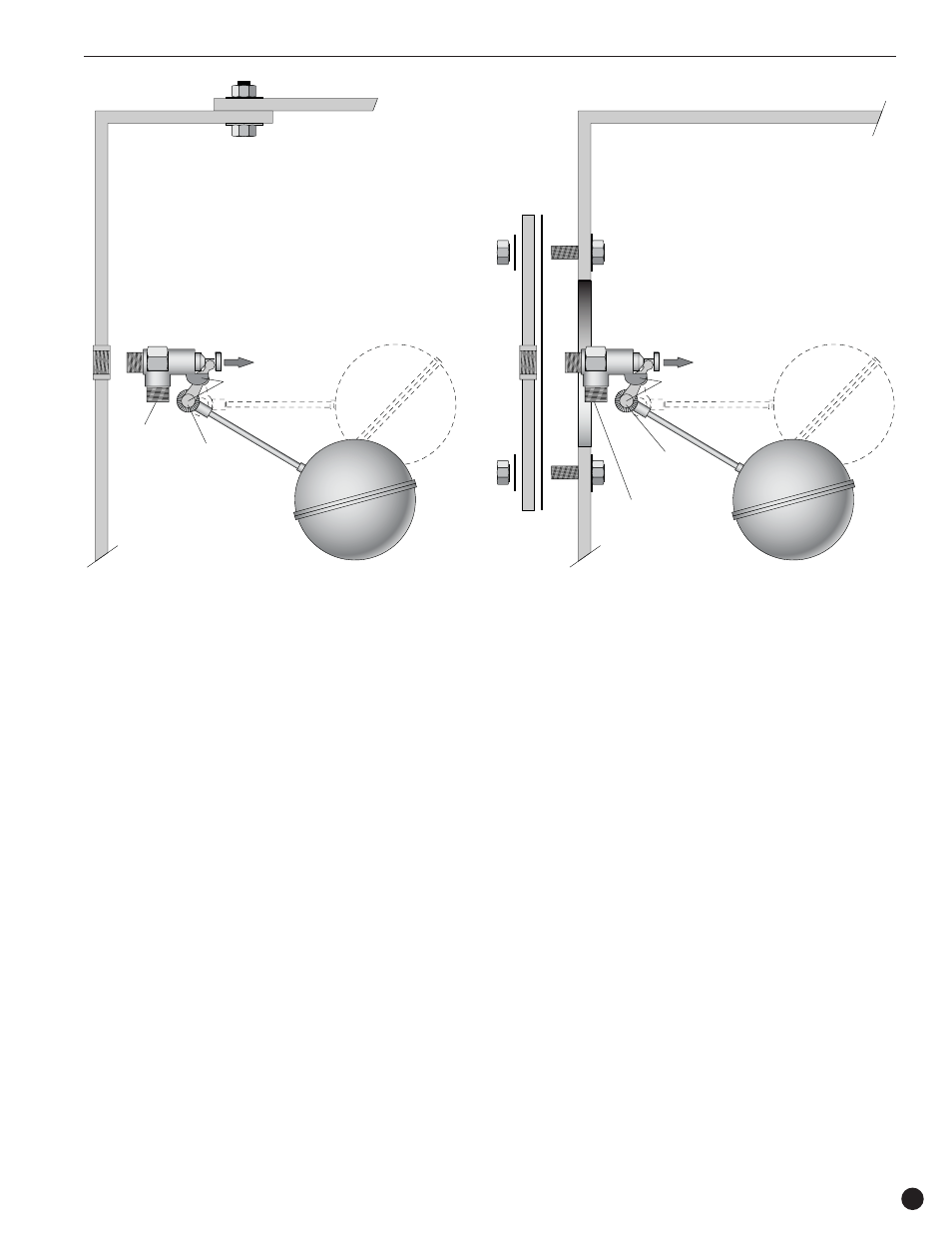

Inlet

Valve Open

Pivot Points

Float Ball

Ball

Position

Lock

Discharge

Opening
