Asanté FriendlyNET GX4 Gigabit Switch
– 6 –
Optional: Placing or Rack Mounting the Switch
The GX4 switch comes with four rubber feet for placement on a flat surface.
Placing the GX4 on a flat surface:
1. Apply the four rubber feet to the bottom of the unit
2. Put the unit on the flat surface
Mounting the GX4 in a Rack (Optional):
1. Place a mounting bracket over the mounting holes on each end of the unit
2. Insert each screw through the bracket and into a mounting hole in the switch as shown in Figure 6.
3. Insert the unit into your equipment rack, and attach with screws provided.

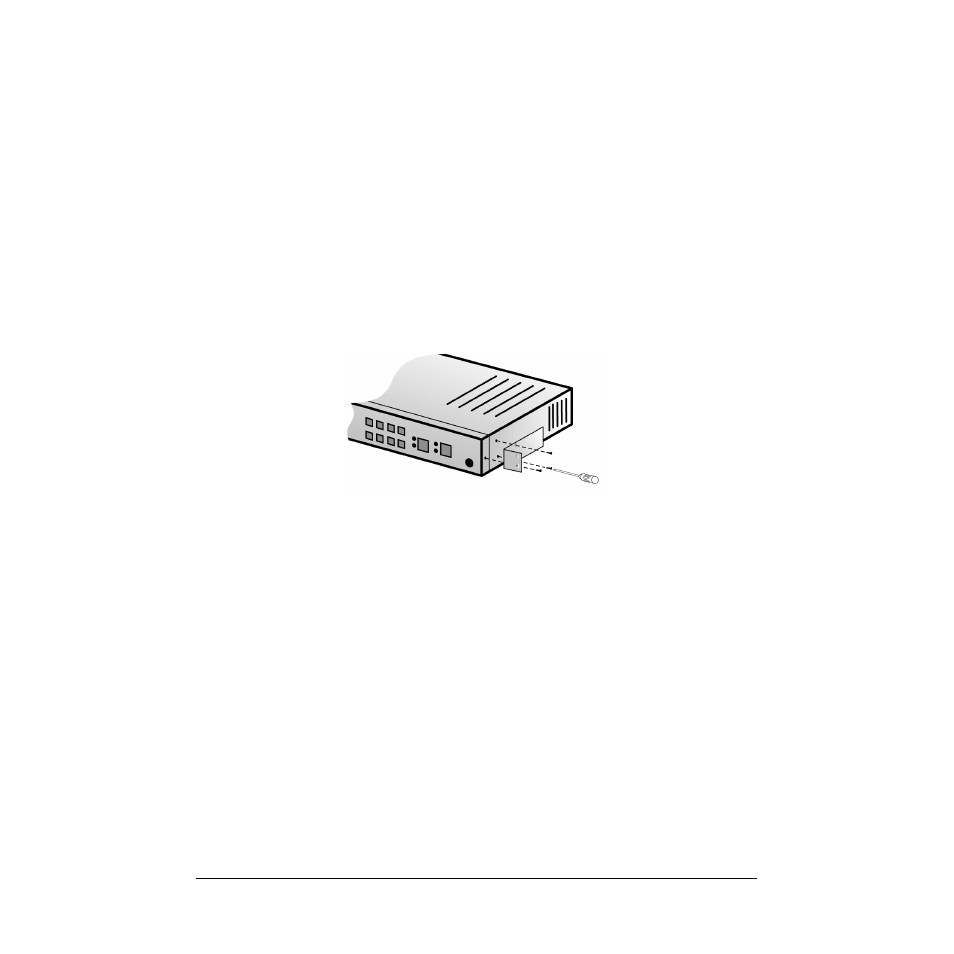

Figure 6. FriendlyNET GX4 Optional Rack Mounting Bracket
