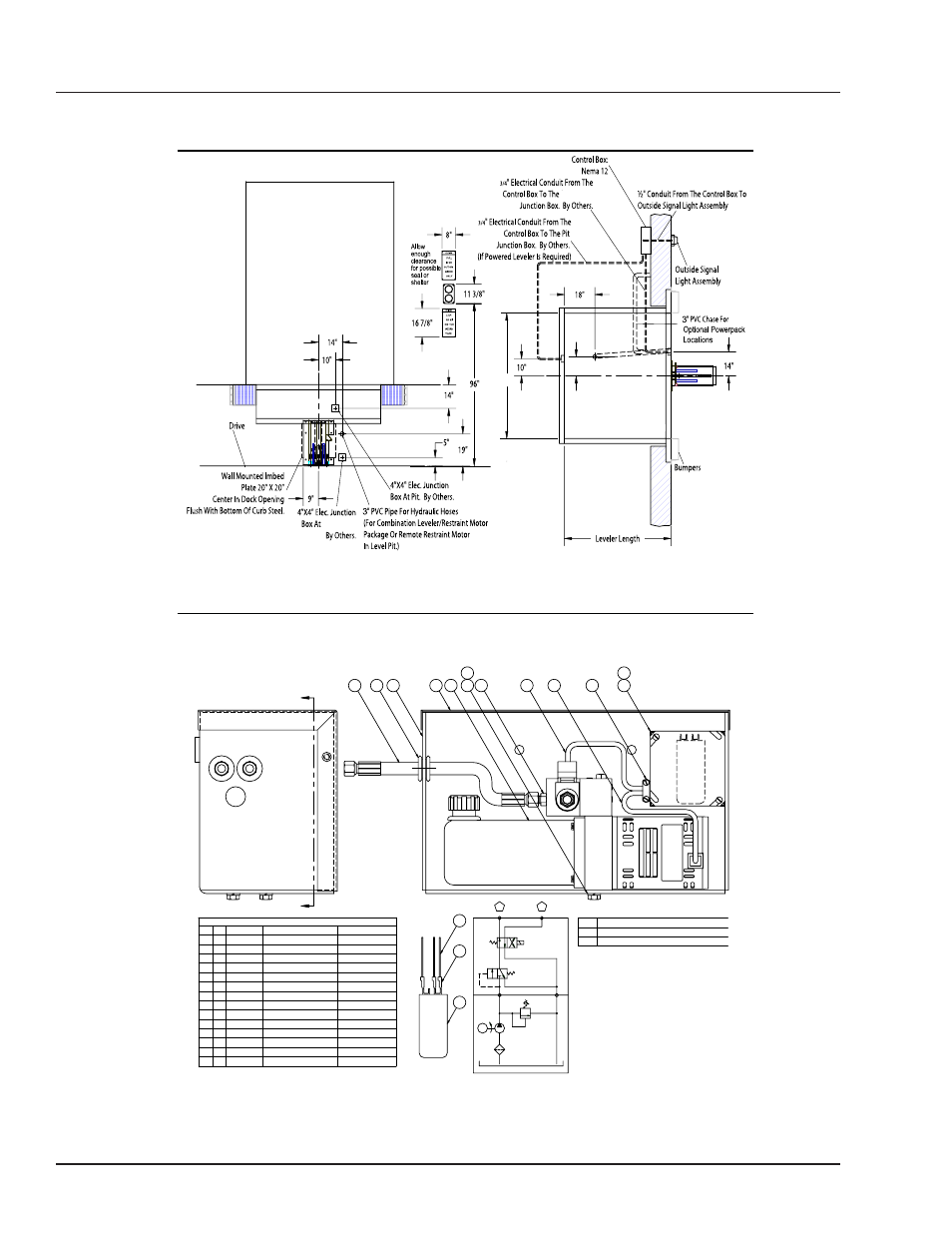

INSTALLATION DETAILS-AUTOMATIC POWERSTOP
LEVEL
11”
SECTION "A-A"
A
A
7 12 8 9 14 14 6
5
4 1
3
11 10
CONNECT TO BASE END OF RELEASE CYL. BC
DESCRIPTION NOTE
RC CONNECT TO ROD END OF RELEASE CYL.
Capacitor Wiring Detail
Motor
Blue
Motor
Red
6
2
13
R.V. SET @
HYDRAULIC SCHEMATIC
105 M 650 PSI
RC BC
1 1 1431-0011 Connector - 2-Screw 3/8
2 3 1431-0086 Insulated Terminial 16-14 AWG
3 2 2101-0017 Hex Head Capscrew 3/8-16 UNC X 1
4 2 2101-0140 Lock Washer 3/8
5 1 2751-0016 Cover - J-Box 4 X 4
6 1 3051-0058 Capacitor - Motor Start 64-77mF - 330V
7 2 6431-0001 Grommet 1-3/8 OD X 3/4 ID
8 2 9301-0164 Fitting Conn Str Thrd #4 ORB X #4 JIC
9 1 9391-0009 Powerpac - PowerStop 1PH - 115V - 1/4 HP - 1 GPM
10 1 9392-0045 Cover - PowerStop B CAD
11 1 9393-0025 Powerpac Mounting Weldment B CAD
12 2 9904-0097 Hyd Hose Assy - 1/4"100R1 X 24.00 #4 JICF SWIVEL BOTH ENDS
13 1 R513-0050 Wire 16 GA RED X 5.00"
14 2 R598-0090 Split Flex Conduit 1/4" X 9.00"
BILL OF MATERIAL
QTY ITEM DESCRIPTION PART NO. SIZE
STOP-TITE Overview
STOP-TITE Powerpack
McGuire.
McGuire
STOP-TITE
STOP-TITE
AAL
Conduit, flexible or rigid, must be connected between the limit switch on the restraint and the powerpack. Wiring to and
from the restraint must be limited to restraint wires only. Do not run high voltage lines through the same conduit as restraint
wires. Conduit and associated hardware to complete wiring and mounting of powerpack are to be supplied by others.
POWERSTOP Overview
POWERSTOP Overview
