INSTALLATION
4111-0014 — November 2006
Sept 2007
1. Mount the push button control panel (B) so bottom
of control panel-to-dock floor distance (C) is 48 in.
(1219.2 mm).
2. Install electrical disconnect panel (A) if not already
installed. (Provided by others)
3. Install and connect the control wiring to the face
of the building as shown in installation.
4. Connect the dock leveler power cable to the field
wires in the pit junction box. Refer to the electrical
drawings supplied with the dock leveler.
5. After all electrical connections in the truck restraint
have been made, test the truck restraint function by
following the instructions in the “Put New PowerStop
Restraint Into Service” section on next page.
Install Control Panel and Wiring
6

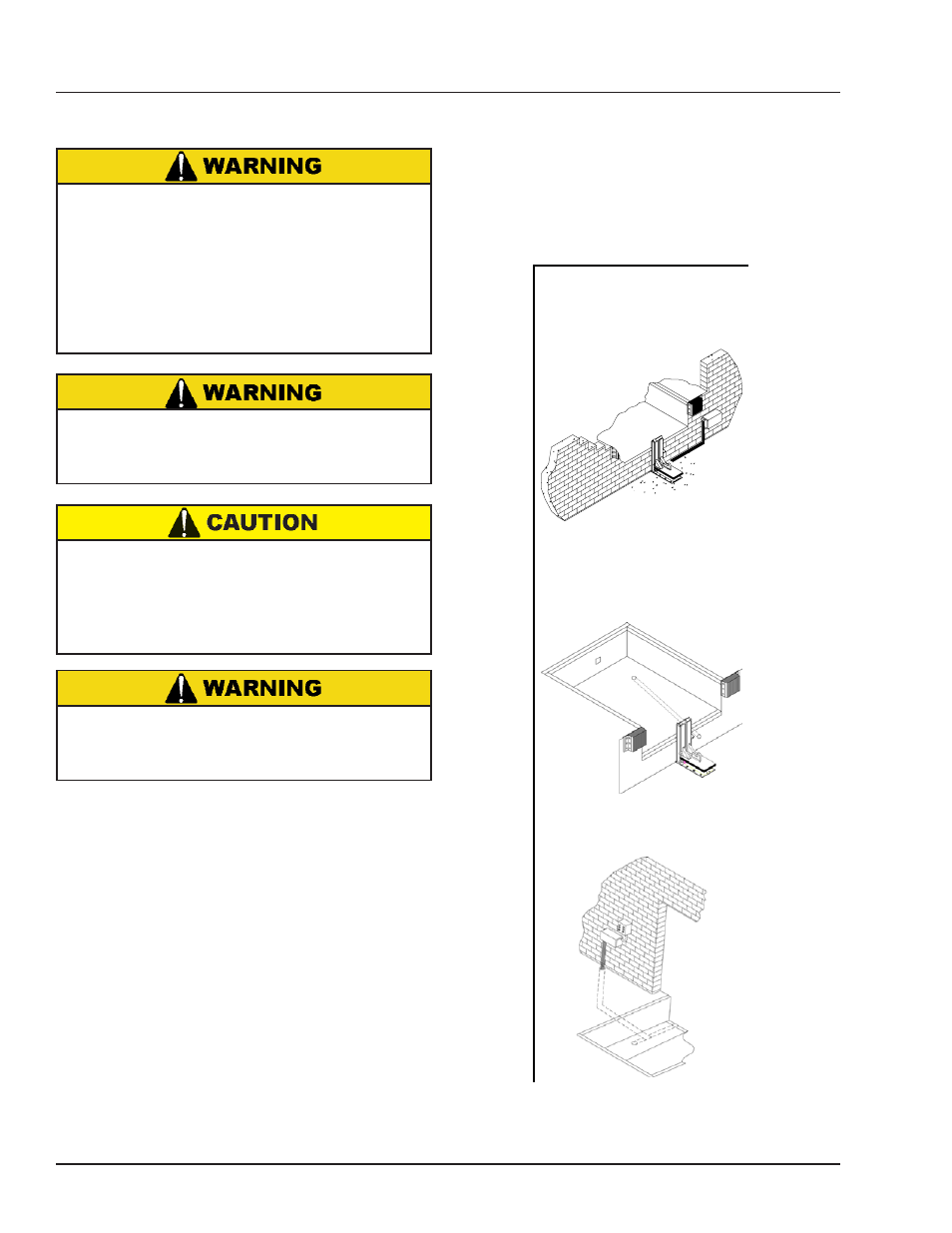

Powerpack
Location Options
For comprehensive installation
instructions of the Automatic
STOP-TITE (STOP-TITE ) read and
understand the Installation
and Operation Manual.
AAL
Coordinate powerpack location and hose
length for proper placement.
Dock Face
Appropriate location when the likelihood of
flooding, snow removal and damage from
trailer/trucks is minimal.
Under The Dock Leveler
When under the dock location is used, make
certain to locate the powerpack where leveler
will not interfere in below dock conditions.
The routing of hydraulic and electrical lines
from the powerpack to the restraint are
best placed through min. 3” PVC (hydraulic)
and 3/4” conduit (electricl) chase during pit
construction.
Inside Building
Locate powerpck to minimize obstruction
potential. Hydraulic and electrical lines
from the Powerpack to the restraint are best
placed through min. 3” PVC (hydraulic) and
3/4” (electrical) chase during pit construction.
The electrical power must be OFF prior to electrical
installation. For maximum protection, use an OSHA
approved locking device to lock out all power
sources. Only the person installing the equipment
should have the key to unlock the power source.
Failure to follow these instructions may result in
serious personal injury or death.
DO NOT make any final electrical connections until
all welding has been completed. Failure to do this
may result in serious personal injury or death.
If dock leveler is present. Always stand clear of
platform lip when working in front of the dock
leveler. Serious personal injury or death may result.
All electrical work — including the installation of the
disconnect panel, control panel, and final
connections — must be performed by a certified
electrician and conform to all local and applicable
national codes.
