TOLERANCES
(UNLESS OTHERWISE NOTED)
FRACTIONAL: `1/32"
DECIMAL:
.00 = `.01"
.000 = `.005"
ANGULAR: `1~
DRAWN BY CHECKED BY
DRAWING NO.
DATE SR 8/27/2009

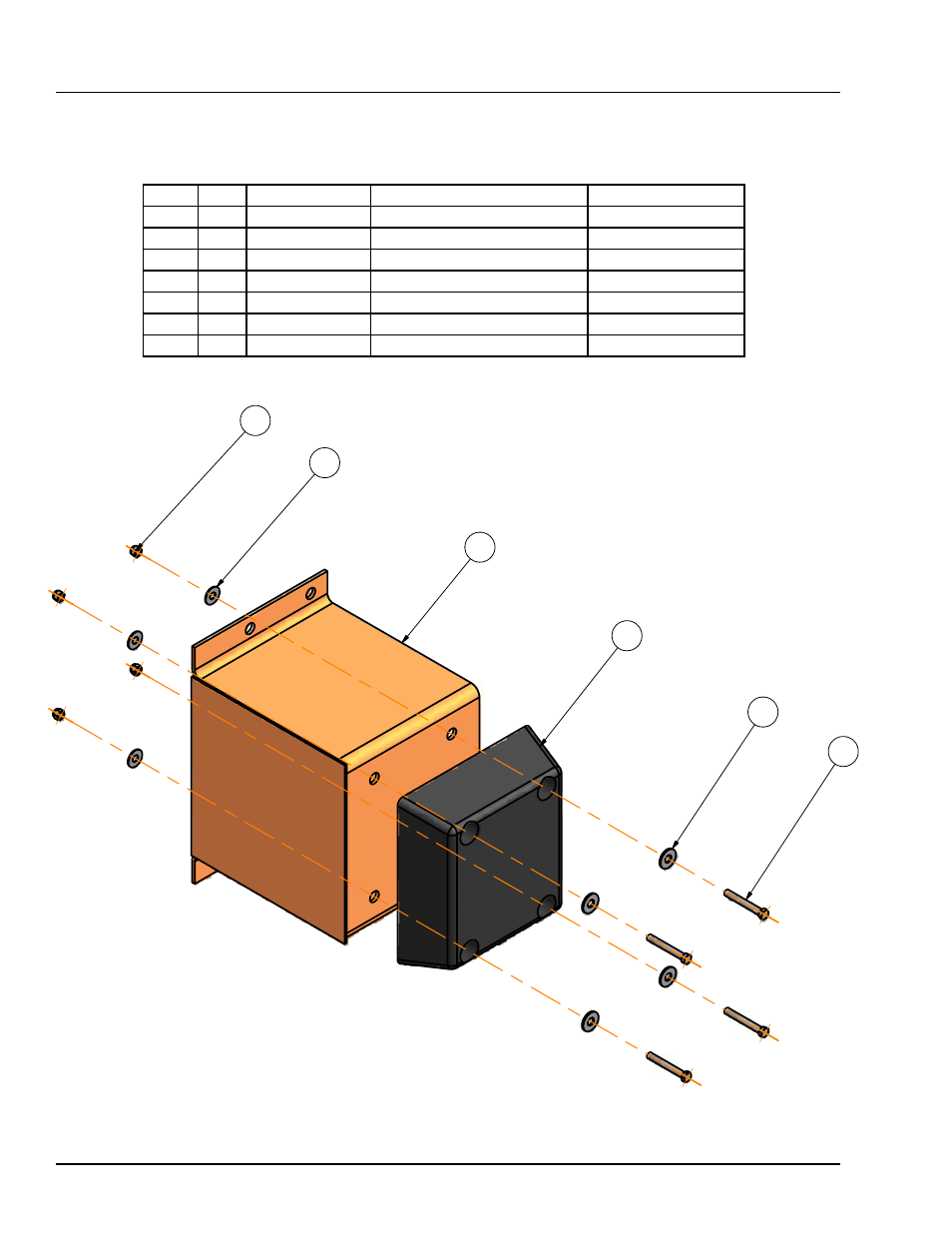

DBBS-3550-Exploded
18" PROJ. X 12" BB ASSY COMPLETE
(EXPLODED VIEW)
P O W E R A M P
D L M
S Y S T E M S, I N C.
L o a d i n g D o c k E q u i p m e n t
BILL OF MATERIAL
SIZE DESCRIPTION PART NO. QTY ITEM
18" PROJ. X 12" BB WELDMENT (HED) DOTH-3556 1 1
4 X 12 X 13 RUBBER - TUF-CORD DOTH-3505 1 2
7/16-14 UNC X 3-1/4 HEX HEAD CAP SCREW DOTH-2056 4 3
1/2" DIA WASHER - FLAT - ZINC PLATED DOTH-2210 4 4
1/2" DIA WASHER - FLAT DOTH-2208 4 5
7/16-14 UNC NYLON LOCK NUT DOTH-2129 4 6
6
5
1
2
4
3
DBBS-3550 Complete 18” Projection Bumper Assembly
PARTS
ITEM QTY PART NUMBER DESCRIPTION SIZE
1 1 DOTH-3556 18” Proj. x 12” BB Weldment (HED)
2 1 DOTH-3505 Rubber - TUF-Cord 4 X 12 X 13
3 4 DOTH-2056 Hex HEad Cap Screw 7/16-14 UNC X 3-1/4
4 4 DOTH-2210 Washer - Flat - Zinc Plated 1/2” Dia.
5 4 DOTH-2208 Washer - Flat 1/2” Dia.
6 4 DOTH-2129 Nylon Lock Nut 7/16-14 UNC
* DKIT-3541 Bumper with Hardware
