Poweramp CM SERIES MECHANICAL - Manual (Page 34)

32 4111-0006 — Sept 2010
Sept 2012
PARTS
BASE FRAMES
ITEM QTY 6’ LONG 8’ LONG 10’ LONG
A 6’ WIDE 20K/50K 6’ WIDE 20K/50K 6’ WIDE 20K/50K
1 16 DRFA-1003 16 DRFA-1012 16 DRFA-1021
18 DRFA-1004 18 DRFA-1013 18 DRFA-1022
20 DRFA-1005 20 DRFA-1014 20 DRFA-1023
6.5’ WIDE 20K/50K 6.5’ WIDE 20K/50K 6.5’ WIDE 20K/50K
16 DRFA-1006 16 DRFA-1015 16 DRFA-1024
18 DRFA-1007 18 DRFA-1016 18 DRFA-1025
20 DRFA-1008 20 DRFA-1017 20 DRFA-1026
7’ WIDE 20K/50K 7’ WIDE 20K/50K 7’ WIDE 20K/50K
16 DRFA-1009 16 DRFA-1018 16 DRFA-1027
18 DRFA-1010 18 DRFA-1019 18 DRFA-1028
20 DRFA-1011 20 DRFA-1020 20 DRFA-1029

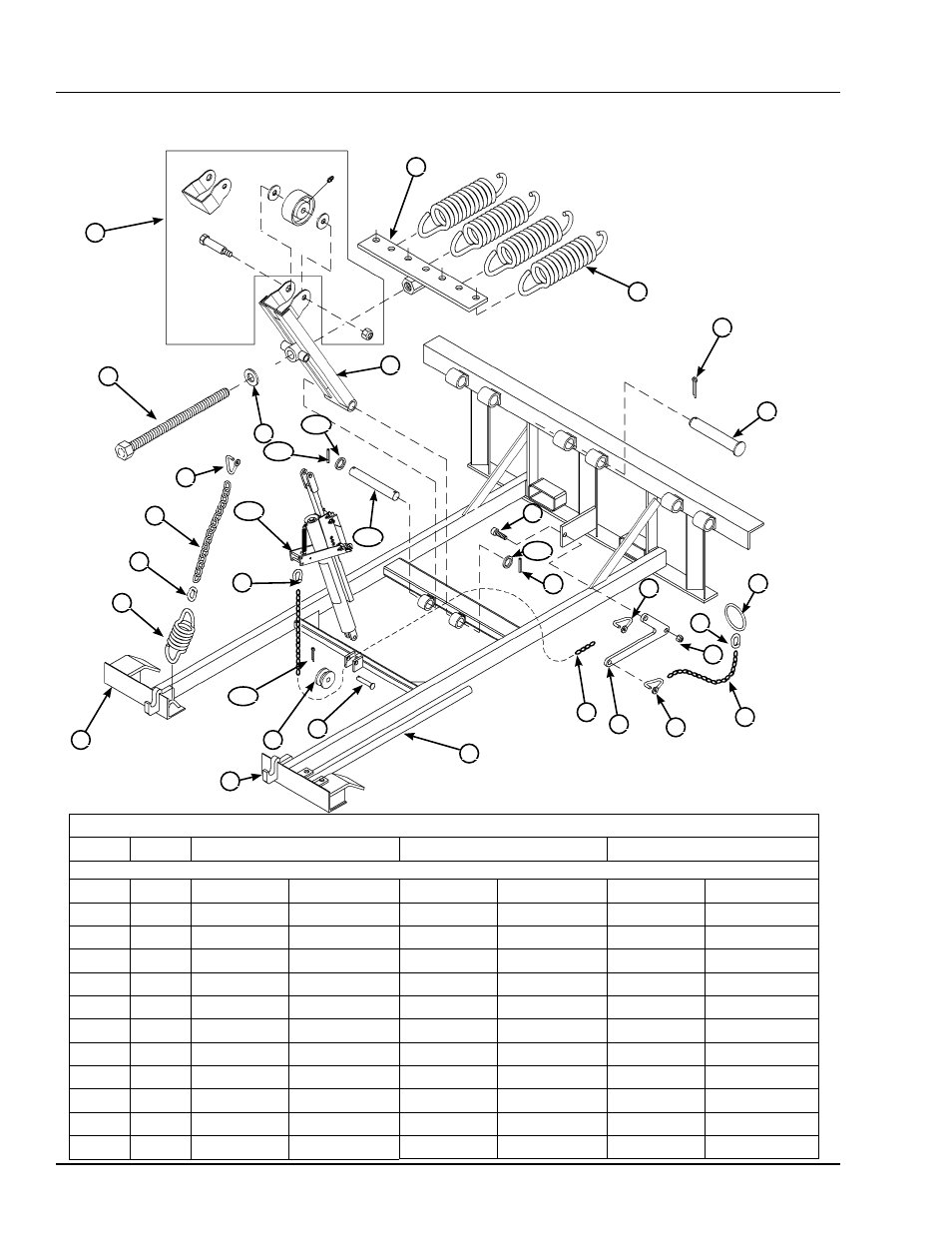

Frame Components
F
C
B
D
A
E
F
K
L
M
N
F
G
J
Q
P
P
S
V
W
X
Y
Z
P
P
T
U
AB
L
AA
AE
AD
L
AD
