Chapter 2: Installation
2-23
Alarm Reset
The system will notify you in the
event of a power supply failure.
This feature assumes that Super-
m i c r o r e d u n d a n t p o w e r s u p p l y
units are installed in the chassis.
If you only have a single power
supply installed, you should not
connect anything to this header
(JPR1) to prevent false alarms.
S e e t h e t a b l e o n t h e r i g h t f o r
jumper settings.
Jumper
Position
Open
Closed
Definition
Enabled
Disabled
Alarm Reset Jumper
Settings
(JPR1)
Alarm Reset
Power Force-On
Jumper JPF allows you to enable or
disable the function of Power Force-
On. If enabled, the power will al-
ways stay on automatically. If this
function disabled, the user needs to
press the power button to power on
the system.
Jumper
Position
Off
On
Definition
Normal
Force On
Power Force-On
(JPF)

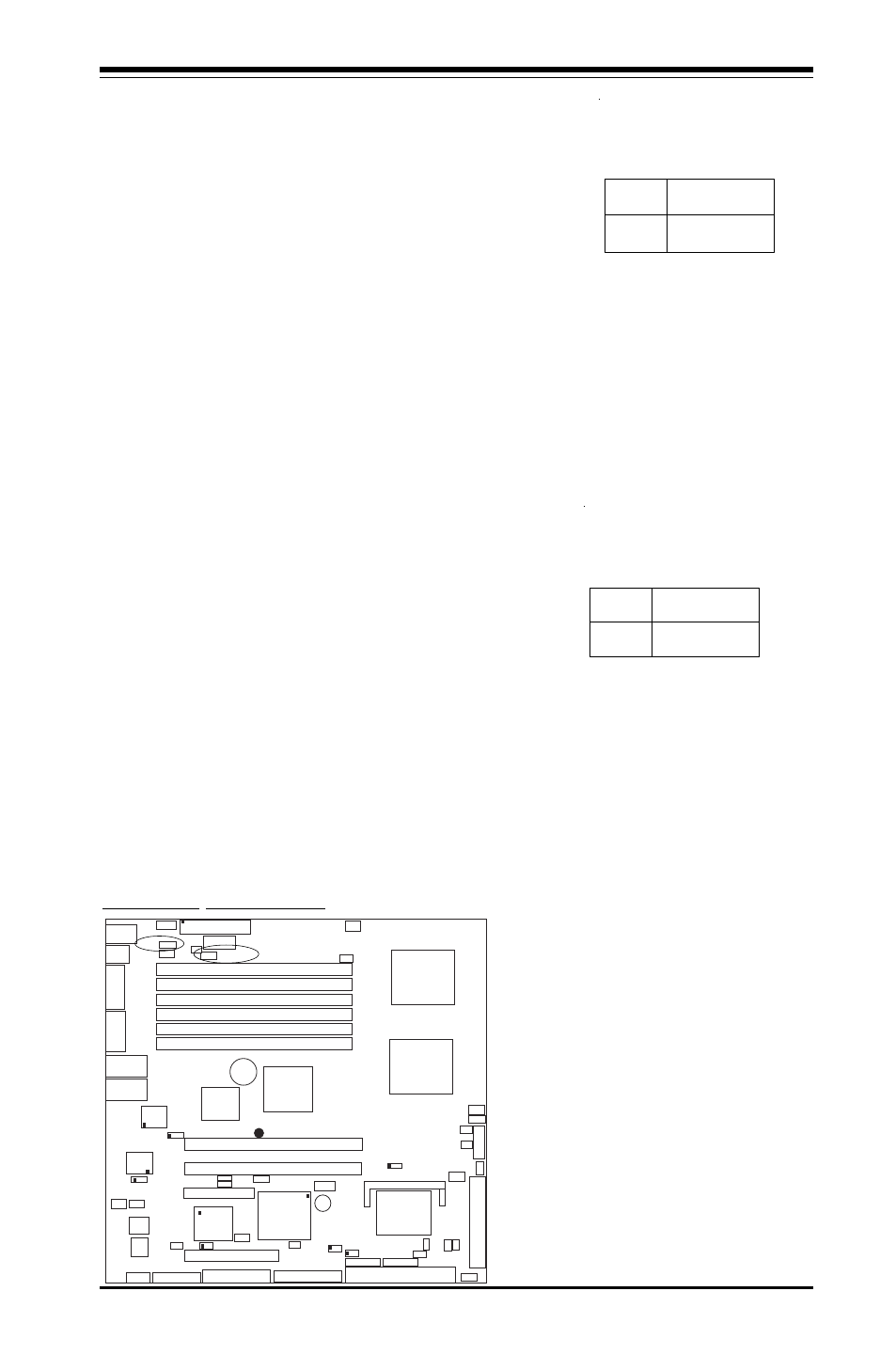

GLAN1
® S UPER X6DVA-4G
GLAN2
DIMM 2B
DIMM 2A
DIMM 3B
DIMM 3A
DIMM 1A
DIMM 1B
8-pin
PWR2
SMB
PWR
FP CTRL
Speaker
WOR
GLAN
CTLR
X4 PCI-Epxess
PCIX #6 (PCIX-133)
North
Bridge
VGA
COM1
USB0/1
KB/
Mouse
PW4
ATX
PWR1
24-Pin Fan1
PW1
CPU 1
CPU 2
COM2
6300ESB
ICH
GLAN
CTLR
PWR
Fault
J2
J3
J4
J1
PW3
J18
J19
J20
J21
J22
J23
J8B1
JPL1
LAN1Enable
JPL2
LAN2Enable
PCIX #5 (PCIX-100)
JPR1
Alarm
Reset
J9B1
J15
J13 JPA1(*SCSI Enable) PCIX slots/
SMB Connect
JF2 PWLED/
SPKR
PCI-E#4 J14
Battery
Fan6 Fan5
JPG1
J17
VGA Enable
32- bit PCI #1
J5
Printer
J10
Floppy
J24
SCSI
J28
JL1
IDE 2 J38 Fan4
SATA0 SATA1 JS0
Cha. Intru
JS1
JB
T1 Clr CMOS
J41 IPMI
JWD
WD
ID
E
1
J44
JF1
Fan3
E7320
(Lindenhurst
-VS)
MCH
PXH
(PCI-E/
PCIX
Interface)
SI/O
VGA
CTLR
SCSI (LSI
53C20)
64- bit
64- bit
USB2,3
JA1
JSLED SATA
LED
D
S9
Fan2
PW2
JWOL
D
S7
D
S8
PO
S
T
LED
System LED
SCSI
ChannelTerm.
Enable
JPF PWR Force On
BIOS
DS1
DS4
DS2
DS3
CPU
PW LED
CPU1 VRM
OHLED
CPU2 VRM
OH LED
DS5 PWR LED
WOL
SCSI LED
PWR Force-On
