Atlas Sound MO-2 User Manual
Page 2
Specifications subject to change without notice
© 2001 Atlas Sound LP
Printed in U.S.A.
000501
SL2-1484
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A. / TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
Fundamental
2nd Harmonic
3rd Harmonic
MA
GNITUDE (dB)
Polars Are Normalized To Zero On Axis
MA
GNITUDE (dB)
Frequency (Hz)
Frequency (Hz)

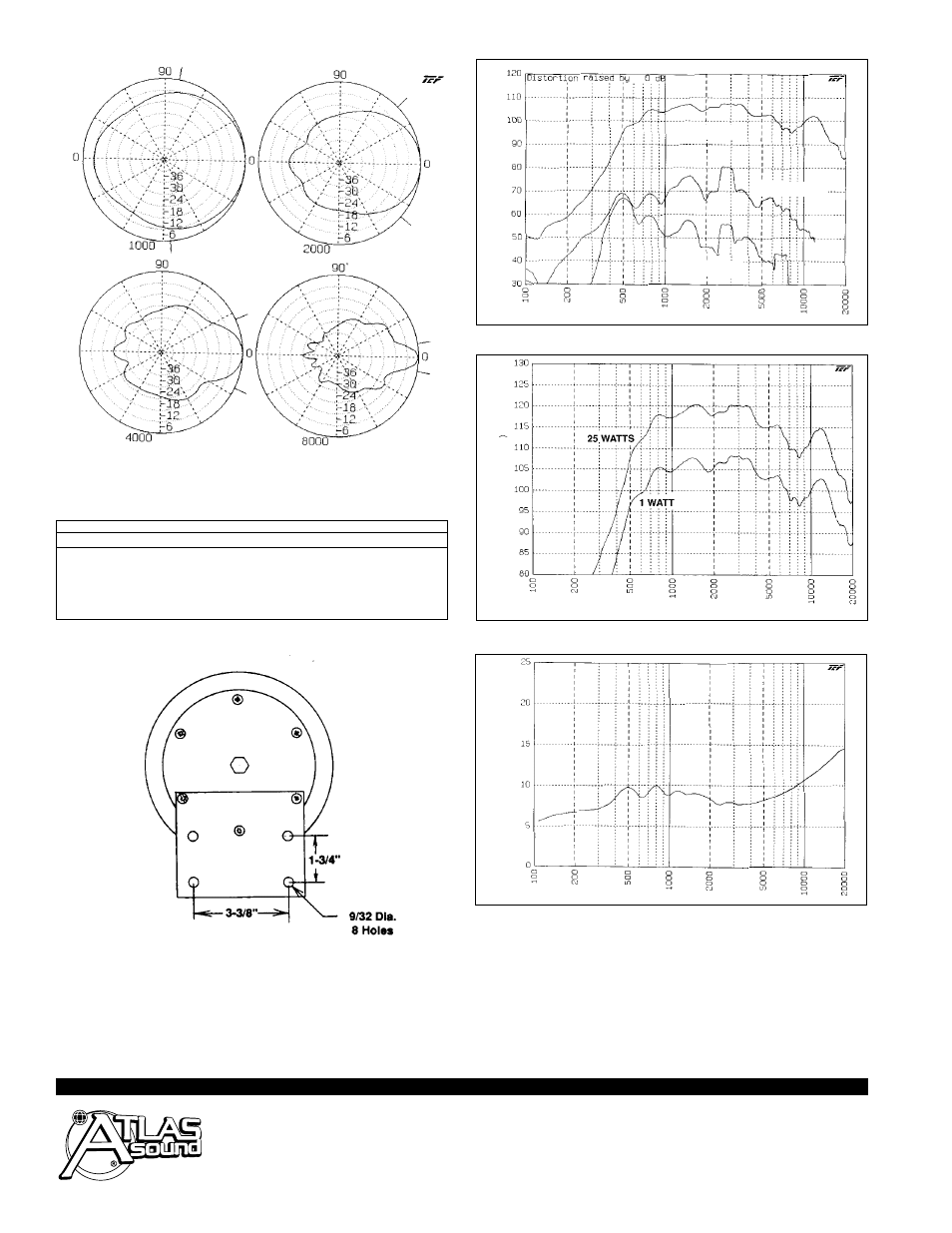

MODEL MO-2
Frequency
Q
Di
Beamwidth
500
2
3
360
1000
3
7
165
2000
9
10
85
4000
22
13
50
8000
59
18
20
Impedance Amplitude - Ohms
MO-2 Mounting Bracket Dimensions
MO-2 Harmonic Distortion - 1 watt @ 1 meter
MO-2 Frequency Response
MO-2 Impedance Sweep
Atlas Sound products are designed and tested in our well-equipped research laboratory which contains a fully anechoic chamber, complete
analog Bruel & Kjaer measurement equipment and Techron
®
TEF 20
®
audio analyzer. Atlas Sound is proud to be a beta site for TEF software.
