Atlas Sound AH6565S User Manual

Ah6565s

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

AtlasSound.com

1/4

Features

• Efﬁ ciency rating of 102 dB (1 W / 1 M)
• 250 watts power handling
• Maximum output of 126 dB (Rated Power @ 1 M)
• Constant Directivity design offers controlled coverage of

65˚ H by 65˚ V (2 kHz octave band)

• Excellent low frequency response provides bass you can feel
• Driver complement includes a 15” cast frame woofer with a

concentrically mounted 1” exit compression driver coupled to a
65˚ H x 65˚ V HF horn

• Full range frequency response of 75 Hz – 14.5 kHz (±5 dB)
• Easy, weather resistant connection via 4-pole terminal block

connector

• 8 Ω nominal system impedance (70.7V / 100V operation via optional

Atlas Sound model AF140 transformer)

• Heavy duty stainless steel mounting bracket (included) allows for

easy installation to most any ﬂ at surface

• Three forged eyebolts also included for suspended installation

Applications

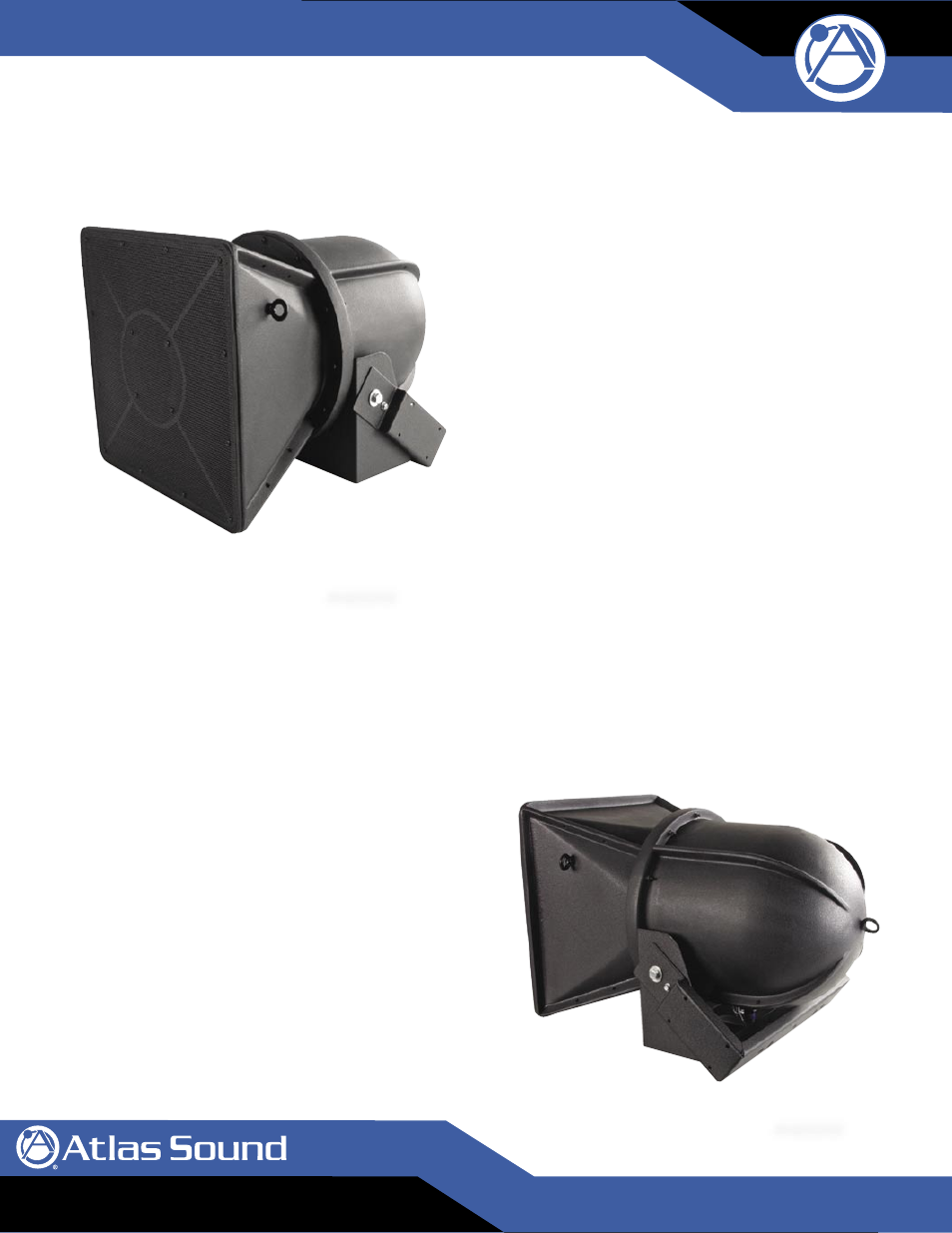

Atlas Sound model AH6565S stadium horn, with its square coverage pat-
tern, is ideal for down firing applications like convention centers where
full range reproduction, maximum intelligibility, and high sound pressure
levels are required. Other applications include football stadiums, sports
arenas, baseball fields, convention centers, and auditoriums.

Weather resistant construction features of the AH6565S include a mul-
tiple screen configuration to prevent moisture from damaging internal
components: A perforated aluminum screen covers the large horn
mouth, a secondary screen is in place forward of the high frequency
driver, and a third tightly perforated screen protects the 15" cast frame
woofer.

Installation

A heavy-duty stainless steel "C" style mounting bracket is included with
the AH6565S to allow easy mounting to almost any flat surface. Three
drop forge eyebolts are also pre-installed (2-front of horn plus 1-rear for
"pull-up") for suspension mounting via load rated aircraft cable. (Use cau-
tion when suspending any object overhead. Refer to the installation
manual for more details.)

The AH6565S includes a 4 pole terminal block connector on the underside
of the device for easy hook-up and daisy chain wiring to other AH6565S.
If 70.7V/100V operation is required the optional Atlas Sound AF140 auto-
former may be used.

NOTE: Due to the full range operation capabilities of the AH6565S,
70.7/100V operation is possible, but discouraged. Better frequency
response and amplifier dampening factor can be realized by using large
gauge (#10 to #12) home runs and series/parallel hook-up wiring at
the head end location with direct coupled, low impedance amplifiers.
Generally speaking, this improvement of frequency response and ampli-
fier dampening factor is worth the sacrifice of line loss over distance
- especially if transformer insertion loss at the loudspeaker location is
considered.

AH6565S

AH6565S

15” 2-way Stadium Horn System 65° x 65°

AH6565S
