Atlas Sound C12BT60 User Manual

C12bt60

• Factory-installed, 60W line-matching transformer to

match 70.7V or 100V lines (transformer may also
be easily bypassed for 8 ohm applications)

• Heavy duty cast basket for added strength in high

power applications

• Newly designed post mounted 1" tweeter section

with unique mounting plate that maximizes the
tweeters frequency response by reducing phase
cancellation

• Accurate midrange reproduction and overall voicing

is very pleasing for voice or music reproduction

• 90 degree dispersion at 2kHz

VALUE PRICED C12BT60

12" COAXIAL LOUDSPEAKER SYSTEM

Superior Sound Reproduction and
Power Handling Capacity With
Atlas Sound’s Model C12BT60

Complimenting the 2002 releases of the 8CXT60, 12CX
and 12CXT60 compression driver coaxial speakers Atlas
Sound is proud to introduce the C12BT60, a value
priced 12" coax which completes Atlas Sound's new fam-
ily of products for high ceiling applications.

Atlas Sound Model C12BT60 is a professional quality
coaxial loudspeaker for use where full range music and
voice reproduction are desired. The C12BT60 is perfect
for high ceiling applications where tighter pattern control
and higher SPL is required.

Model C12BT60 combines a 12" diameter low frequency
reproducer and a 1" diameter high frequency, post-
mounted reproducer. The unit features a unique tweeter
mounting plate that maximizes the tweeters frequency
response by reducing phase cancellation from the
woofer cone. A highly efficient built-in passive crossover
network is included for determining proper frequency
selection between the two reproducers. Both the low fre-
quency reproducer and the tweeter feature permanently
aligned voice coils (1.5" & 1" diameter, respectively) to
assure distortion free performance. A factory installed 60
watt variable tap line transformer is included with the
package, however, the transformer can be easily
bypassed for 8 ohm applications.

Attlla

d..c

0..8

6..3

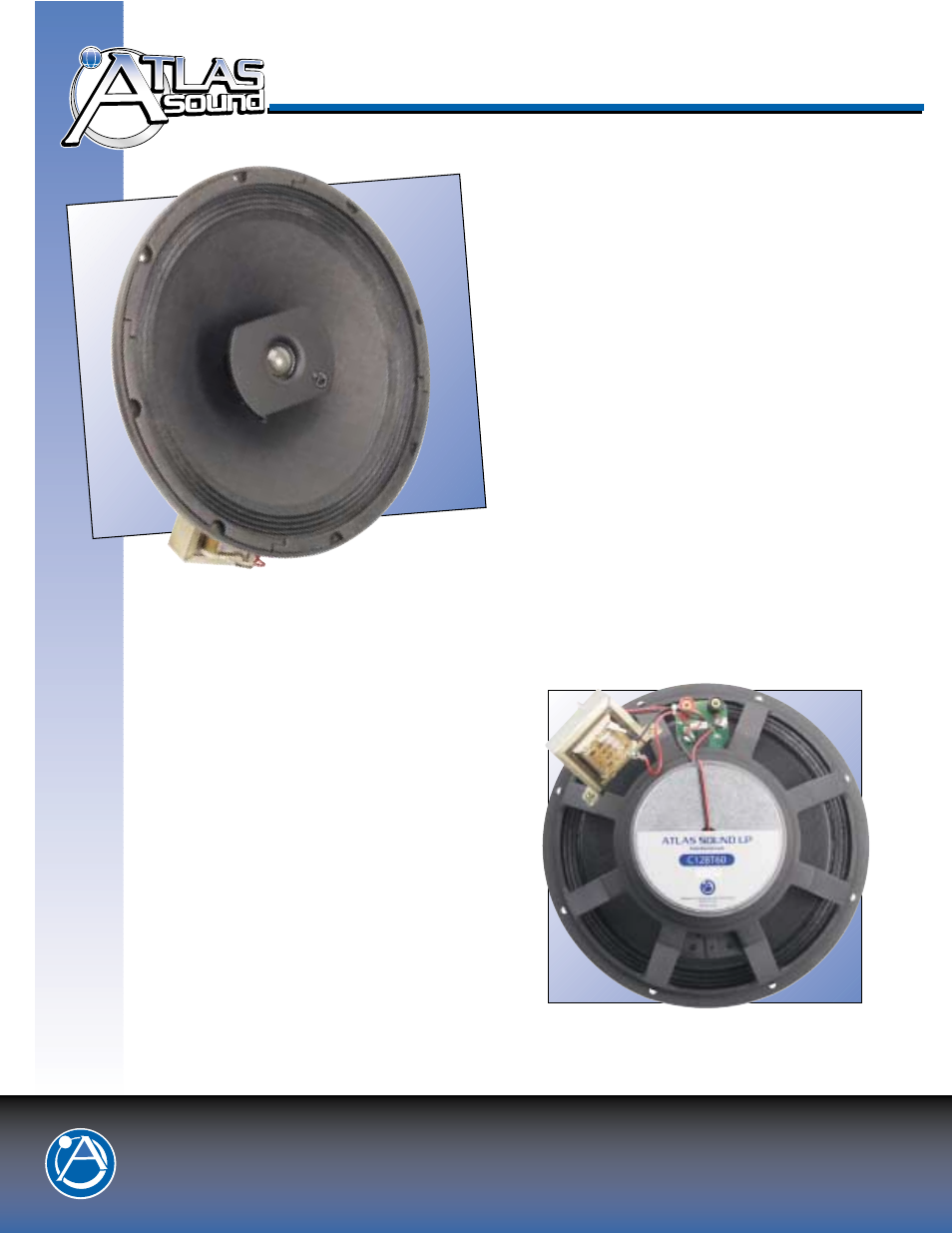

C12BT60

Rear View

C12BT60

Front View
