Mini-GASS User Manual
c. Filter Drain Connection
Connect line from eductor outlet to designated collection/exhaust basin containing acid
absorption media to prevent release of exhaust to surrounding. 1/4” I.D. tubing can be
used for runs up to 10 feet, or larger I.D. tubing for longer exhaust lines. Line should not
restrict purge flow.
d. Purge Exhaust
Purge exhaust may contain liquid water. A line can be connected from purge outlet to remote
area if desired. Line should not restrict purge flow. 1/4" I.D. tubing can be used for runs up to
10 feet, or larger I.D. tubing for longer exhaust lines.
e. Purge Eductor Inlet Connection
Connect air supply line to compression fitting (labeled “Instrument Air”).
f. Steam Connection (Optional - Refer to Figure 7)
1.
Insulate supply line to steam control valve.
2.
Insulate supply line between valve and steam coil.
3.
Supply low pressure steam (50 psig max.) to steam coil. Do not exceed this
pressure or overheating may occur.
Outlet end of steam coil located at lower left side of enclosure is connected to a thermostatic
steam trap to allow condensed steam to drain in a controlled manner. Condensate can be
piped to a wastewater drain or to condensate recovery system.

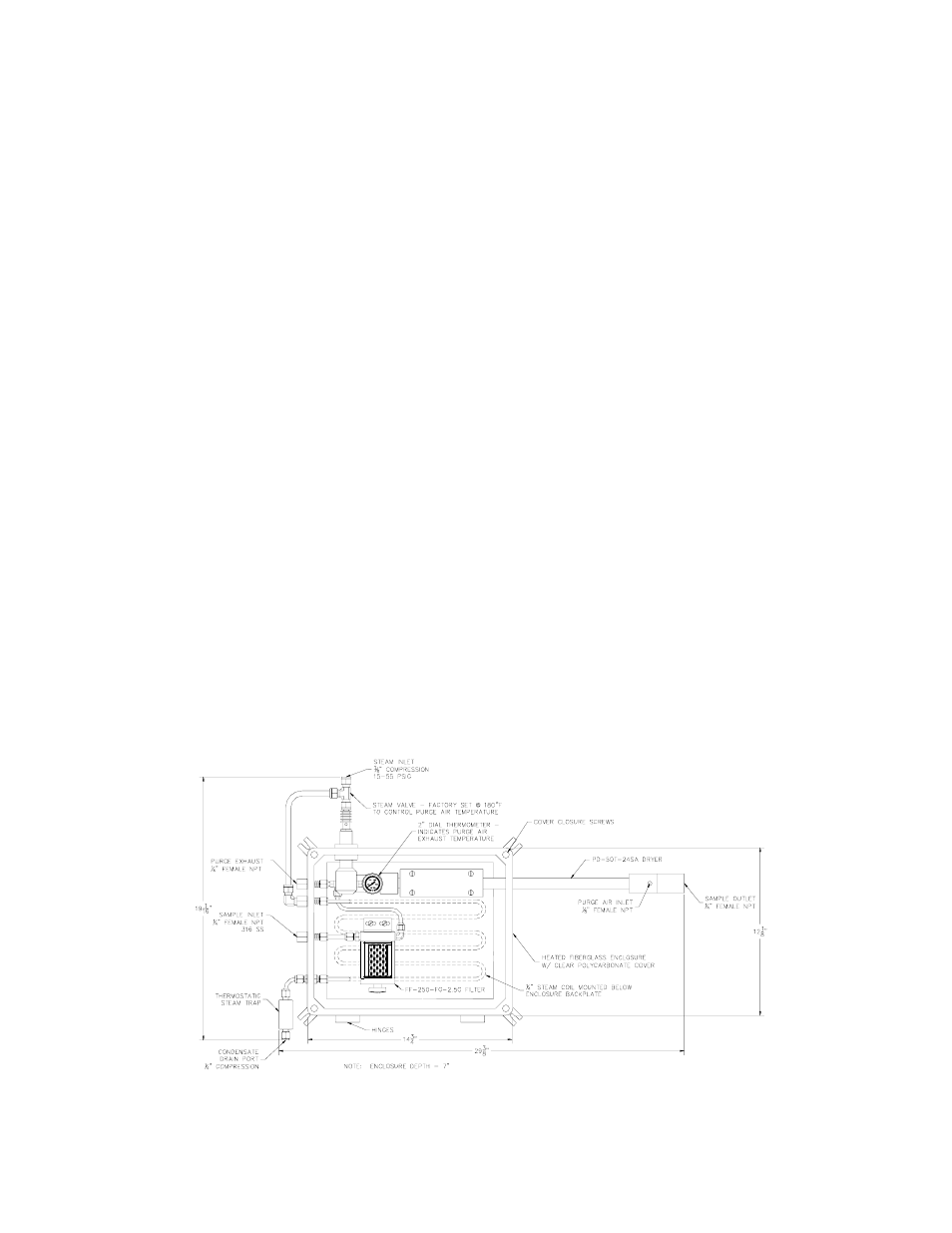

Figure 7
