18

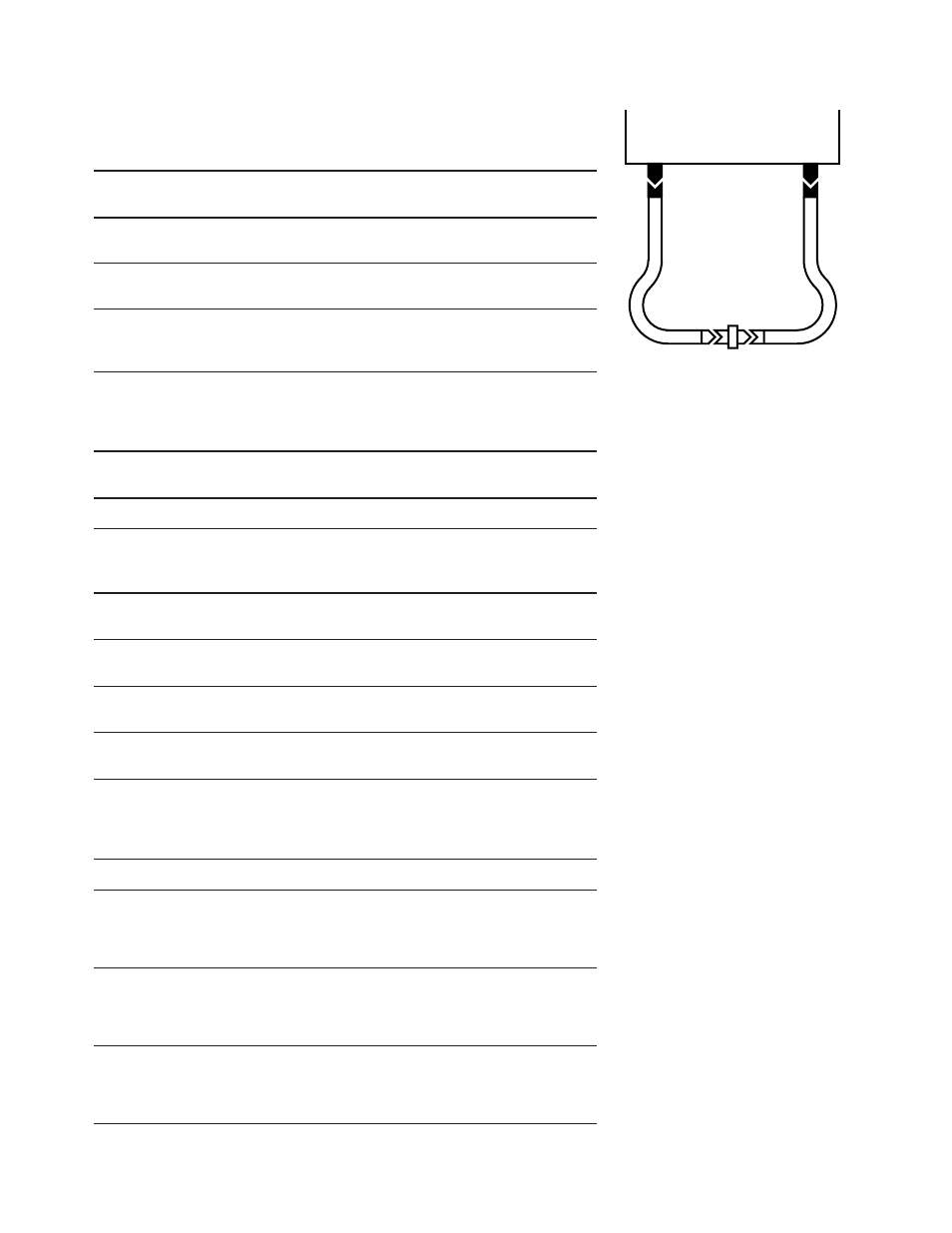

Configuration B. This cable arrangement is for applications where the device
under test is connected between cable ends. This setup offers more flexibility
when connecting to the device under test.
For 8514B/8515A/85110A test sets (3.5 mm rugged test port connectors)
Cables/adapter Connector type
(on device side of cable/adapter)
For 3.5 mm devices 85131D semi-rigid cable set or 3.5 mm (m and f)
85131F flexible cable set 3.5 mm (m and f)
For 7 mm devices 85132D semi-rigid cable set or 7 mm
85132F flexible cable set 7 mm
For Type-N devices Use 7 mm cables and the 7 mm-to-Type-N
adapters included in the 85054B/D
Type-N calibration kit
For 85110L Test sets (7 mm rugged test port connectors)
Cables/adapter Connector type
(on device side of cable/adapter)
For 7 mm devices 11857D Cable pair 7 mm
For 8517B Test sets (2.4 mm rugged test port connectors)
Cables/adapters Connector type
(on device side of cable/adapter)
For 2.4 mm devices 85133D semi-rigid cable set or 2.4 mm (m and f)
85133F flexible cable set 2.4 mm (m and f)
For 3.5 mm devices 85134D semi-rigid cable set or 3.5 mm (m and f)
85134F flexible cable set 3.5 mm (m and f)
For 7 mm devices 85135D semi-rigid cable set or 7 mm
85135F flexible cable set 7 mm
For 8510XF systems (1 mm test port connectors)
Cables/adapters Connector type
For 1 mm devices 11500I (8.8 cm) test port cable 1 mm (f and f)
11500J (16 cm) test port cable 1 mm (m and f)
11500K (20 cm) test port cable 1 mm (m and f)
11500L (24 cm) test port cable 1 mm (m and f)
For V-band waveguide devices V281C adapter 1 mm (f) to V-band
waveguide devices
V281D adapter 1 mm (m) to V-band
waveguide devices
For W-band waveguide devices W281C adapter 1 mm (f) to W-band
waveguide devices
W281D adapter 1 mm (m) to W-band
waveguide devices
Network analyzer
test set
Device
under
test
Cable set
Configuration B
