GDV-870 Owner’s Manual

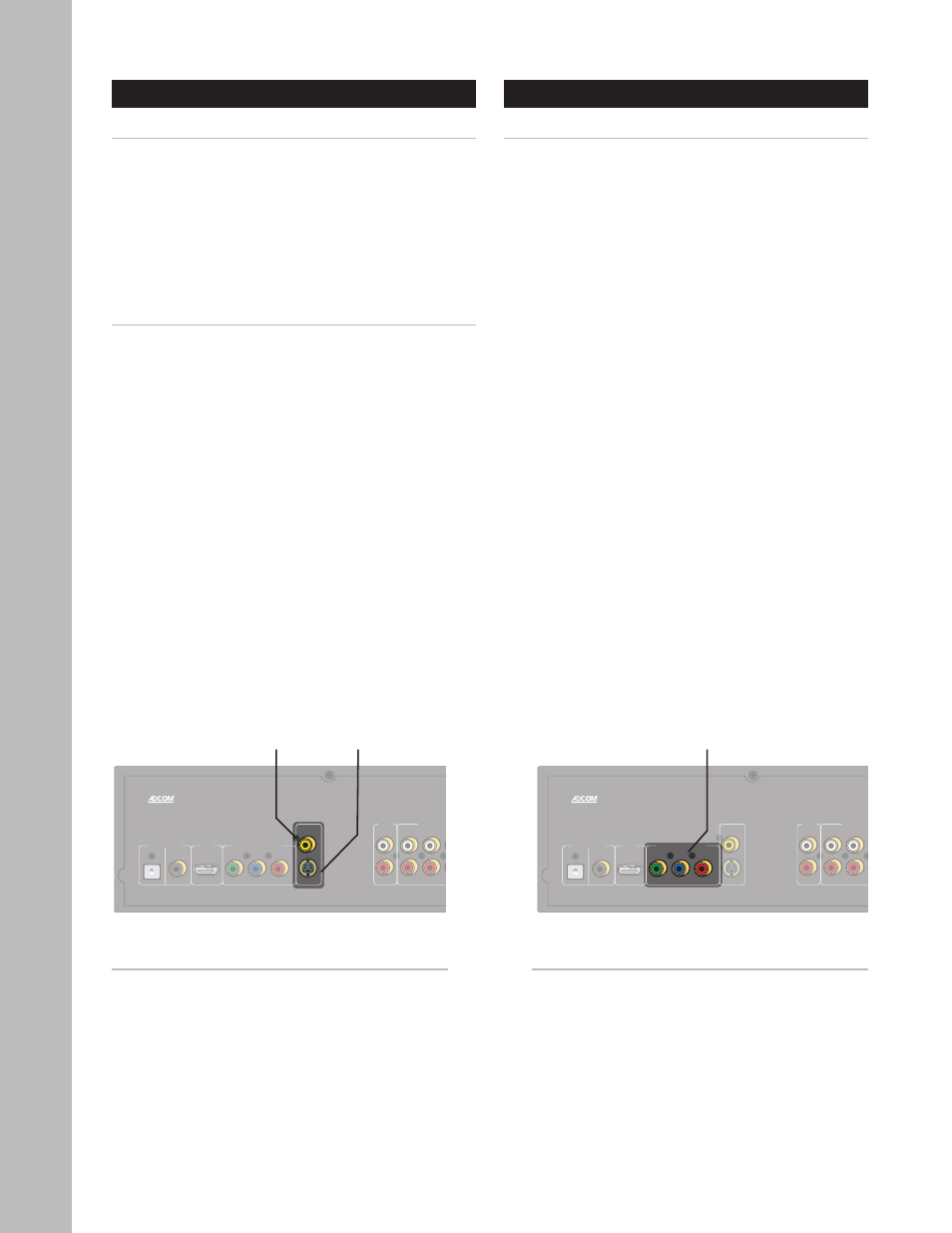

Composite/S-Video Connections

Composite Video Connections

Composite video is used in nearly all consumer video

devices. We recommend using this output only when

S-Video or Component Video inputs are not available.

1 Using a standard video cable, connect the com-

posite video output on the GDV-870 to the com-

posite video input on your display device.

S-Video Connections

S-Video delivers a better picture than composite

video connections.

1 Using an S-Video cable, connect the S-Video out-

put on the GDV-870 to the S-Video input on your

display device.

Component/Progressive Scan

Component/Progressive Scan Connections

Component video is the best available analog con-

nection method to an HDTV display. If your display

supports Progressive Scan or HD analog, the picture

quality is even more impressive.

1 Using a set of Component video cables, connect

the Y/Pb/Pr outputs on the GDV-870 to the cor-

responding Y/Pb/Pr inputs on your display de-

vice.

• Be sure to match the red, green, and blue

connectors accordingly.

��

�

��

��

�

��

��

Composite

Video Out

S-Video

Out

Notes:

• You must set the Video Output to Component, P-

Scan or HD in the GDV-870 Setup Menu; see page

20.

• To view the Component/Progressive Scan output,

select the corresponding Component Video input

on your display device.

��

�

��

��

�

��

��

Component Video/

Progressive Scan Out

Notes:

• Composite/S-Video is the default video setting

for the GDV-870 — no additional conﬁguration is

necessary.

• To view the Composite/S-Video output, select

the corresponding Video or S-Video input on

your display device.
