Nova-Tech Pulsafeeder 5-Function Degass Valve - Manual (Page 4)

12
10
22
25
9

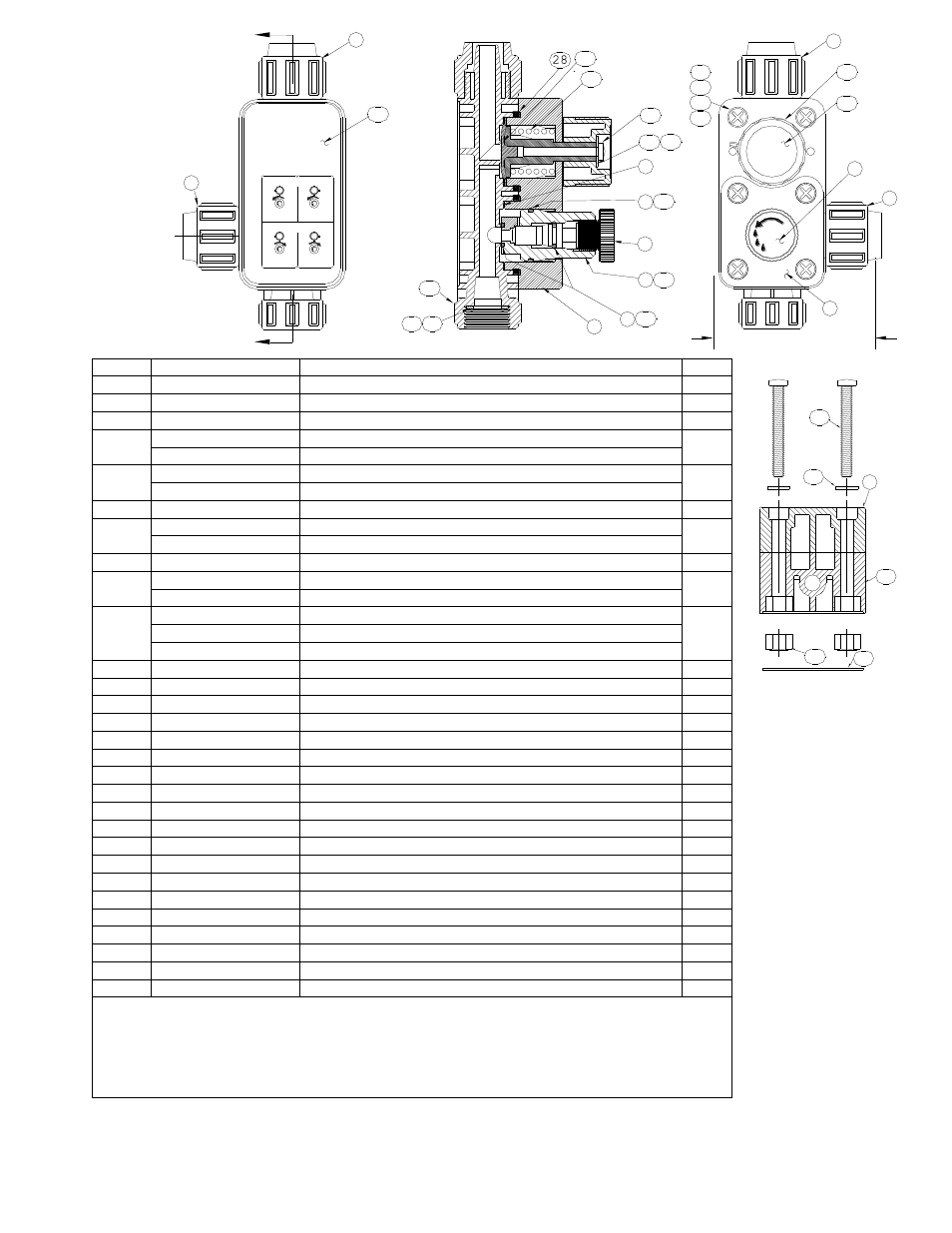

SECTION "A-A"
3
8
13
"A"
"A"
ON OFF
A B
11
12 15
14
5
1
2
4
18
7
6
20
16
17
21
10
22
1. DEGASS RELIEF
2. BACK PRESSURE
3. ANTI-SYPHON
4. PUMPHEAD AIR BLEED
5. DISCHARGE DRAIN
5-FUNCTION DEGASS
SYSTEM SETTINGS:
OUTLET
INLET
DEGASS RETU
R
N
DEGASS PUMPING
A B A B
+
FUNCTION 1 FUNCTION 4
FUNCTION 2 FUNCTION 5
FUNCTION 3
NORMAL
PUMPING
A B A B
FUNCTION 2 FUNCTION 3
PUMP BLEED
19
24
23
24
9 9
9
30
2.33"-2.63"
11
13
6
Pt.# L9407500-000
Page 4 of 4. REV.: A
ITEM PART # DESCRIPTION QTY
1 L1110200-PVD SHAFT AS'Y, VALVE SCREW, 5-FUNCT/DEGAS 1
2 L1110000-PVD ADAPTER(PVDF), CONVERSION VLV 5-FUNCT/DEGAS 1
3 L1701305-000 LABEL, DECAL BLEED SCREW 1
4
L1501100-HYP O-RING(HYP), #2-010
1
L1501100-VTN O-RING(VTN), #2-010
5
W078200-HYP O-RING(HYP), #2-018
2
W078200-VTN O-RING(VTN), #2-018
6 L1109900-PVD BLOCK(PVDF), MODIFIED VLV 5-FUNCT/DEGAS 1
7
L1503300-HYP GASKET(HYP), FLAT
1
L1503300-VTN GASKET(VTN), FLAT
8 L1713700-000 LABEL, BLEED/PUMP DECAL 5-FUNCT/DEGAS 1
9
L1100300-PVD NUT(PVDF), COUPLING .38in.-TUBE
2
L1100400-PVD NUT(PVDF), COUPLING .50in.-TUBE
10
L1104000-PVD BODY(PVDF), VALVE .38in.-TUBE 5-FUNCTION
1 L1104100-PVD BODY(PVDF), VALVE .50in.-TUBE 5-FUNCTION
L1103900-PVD BODY(PVDF), VALVE .25 NPT 5-FUNCTION
11 L9804700-188 SCREW(SST), #10-32 x1.5in.-lg. PHP 6
12 L9809700-188 NUT(SST), #10-32 x .25 thk. HEX 6
13 L9805001-000 WASHER(SST), #10-FLAT 6
14 L1701600-000 LABEL(BLK), STROKE LENGTH KNOB DECAL 1
15 L1900600-FPP KNOB(FPP-BLK), ADJUSTMENT 5-FUNCT/DEGAS 1
16 L0301900-000 DIAPHRAGM AS'Y, 5-FUNCT/DEGAS VALVE 1
17 L1104600-000 SPRING, VALVE 150-PSI 5-FUCNTION 1
18 L9904400-188 SPRING(SST), CURVED WASHER 1
19 L9804600-188 WASHER(SST), FLAT .19 x .56 5-FUNCTION 1
20 06-008-26 SCREW(SST), #8 x 1.0in.-lg. TYPE-1 1
21 L1501200-VTN GASKET(VTN), 2-013 1
22 L1713500-000 LABEL, INSTRUCTION DECAL 5-FUNCT/DEGAS 1
23 L9902100-188 PIN(SST), ROLL \U+2205.06x.63in.-lg. 2
24 L1110000-PVD ADAPTER, CONVERSION VALVE 5-FUNCT/DEGAS 1
25 J00003 LUBE, SILICONE A/R
26 L9407500-000 MANUAL, 5-FUNCTION/DEGAS 1
27 L1715xxx-00D LABEL, DECAL 5-FUNCTION/DEGAS 1
28 L1504100-000 O-RING, .989 X 1.121 X .066 VITON 2
30 J27903 GSK(TFE)..05X.455X.69 1
NOTES:
1. WHEN INSTALLING O-RINGS(IT.#20 & #21), LUBE WITH LUBE, SILICONE (IT.#26) TO PREVENT O-RING
DAMAGE.
2. INSTALL CONVERSION VALVE ADAPTER(IT.#25) WITH SMALL BYPASS HOLE IN A VERTICAL POSITION
TOWARDS TOP ADJ. KNOB(IT.#7).
