Nova-Tech Chem-Tech XP Series User Manual
Page 11

REV. L PN J63031
- 11-

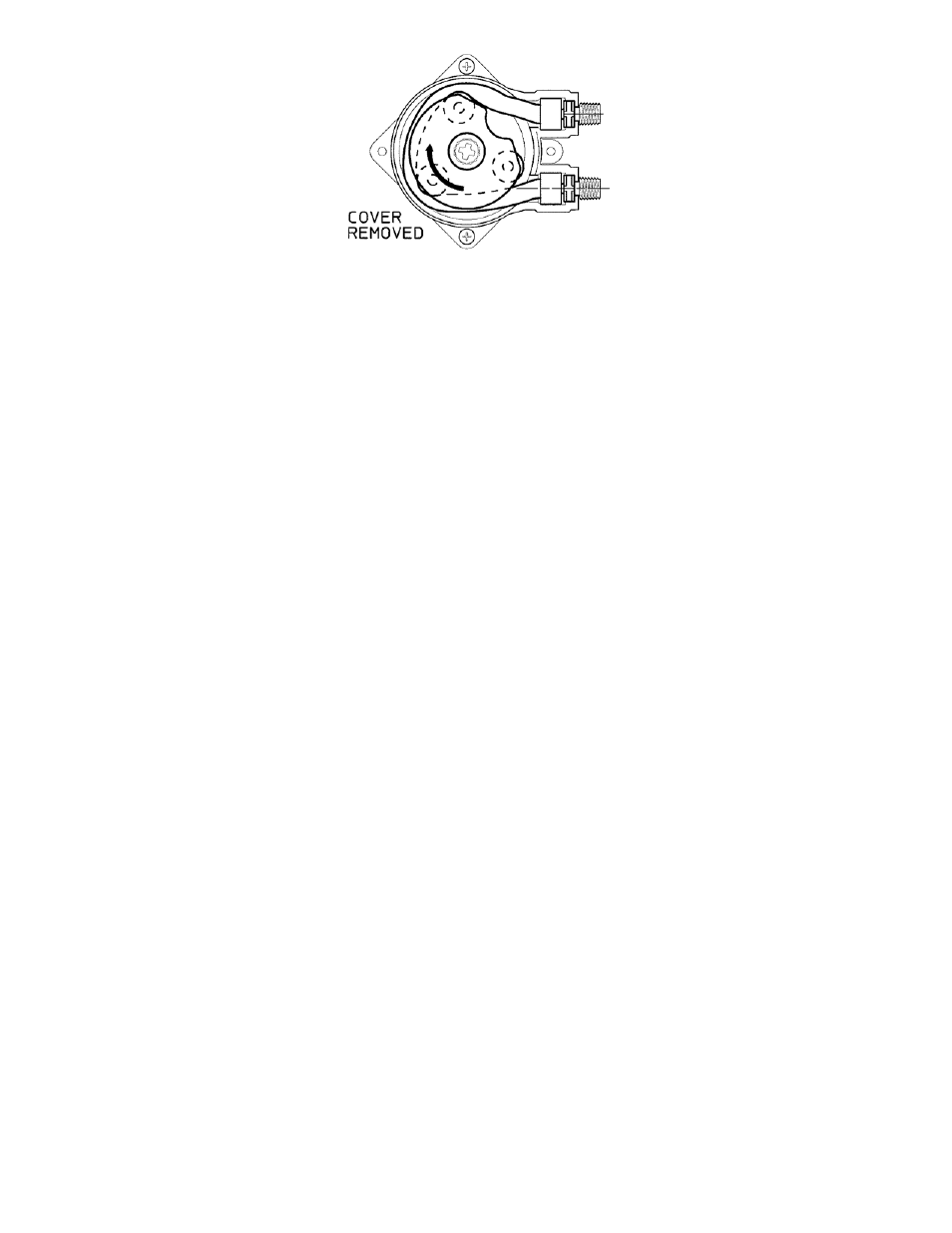

Figure 7b: Pump Head Assembly with Front Cover Removed
4. Remove the two thumb screws holding on the pump head cover and remove -
See figure 7b above.
5. Remove pump head tube assembly by removing both connector fittings and
pulling tubing straight out of the pump head. Tubing may retain a small amount
of chemical. If the rotor assembly is removed, go to step #8.
6. Remove rotor assembly by pulling straight out of pump head. NOTE bearing
lubrication every 500-hours; see section 7.1, “Tubing Assembly Installation and
Lubrication”.
7. Clean any tubing debris from the rotor assembly and pump head.
