* Specifications and appearance are subject to change without notice.
All ATAGO refractometers are designed and manufactured in Japan.
ATAGO products comply with HACCP,
GMP, and GLP system standards.
12070000PP Printed in Japan
Headquarters: The Front Tower Shiba Koen, 23rd Floor
2-6-3 Shiba-koen, Minato-ku, Tokyo 105-0011, Japan
TEL : 81-3-3431-1943 FAX : 81-3-3431-1945
[email protected] http : //www.atago.net/
TEL : 1-425-637-2107 [email protected]
TEL : 91-22-2833-8038 / 8076 [email protected]
TEL : 86 20-38106065 [email protected]
TEL : 662-982-8718-9 [email protected]
TEL : 55 16 3916-6000 [email protected]
TEL : 39 2 36557267 [email protected]
V.02
REGISTERED
ISO9001
130
mm
45
mm
SUS316

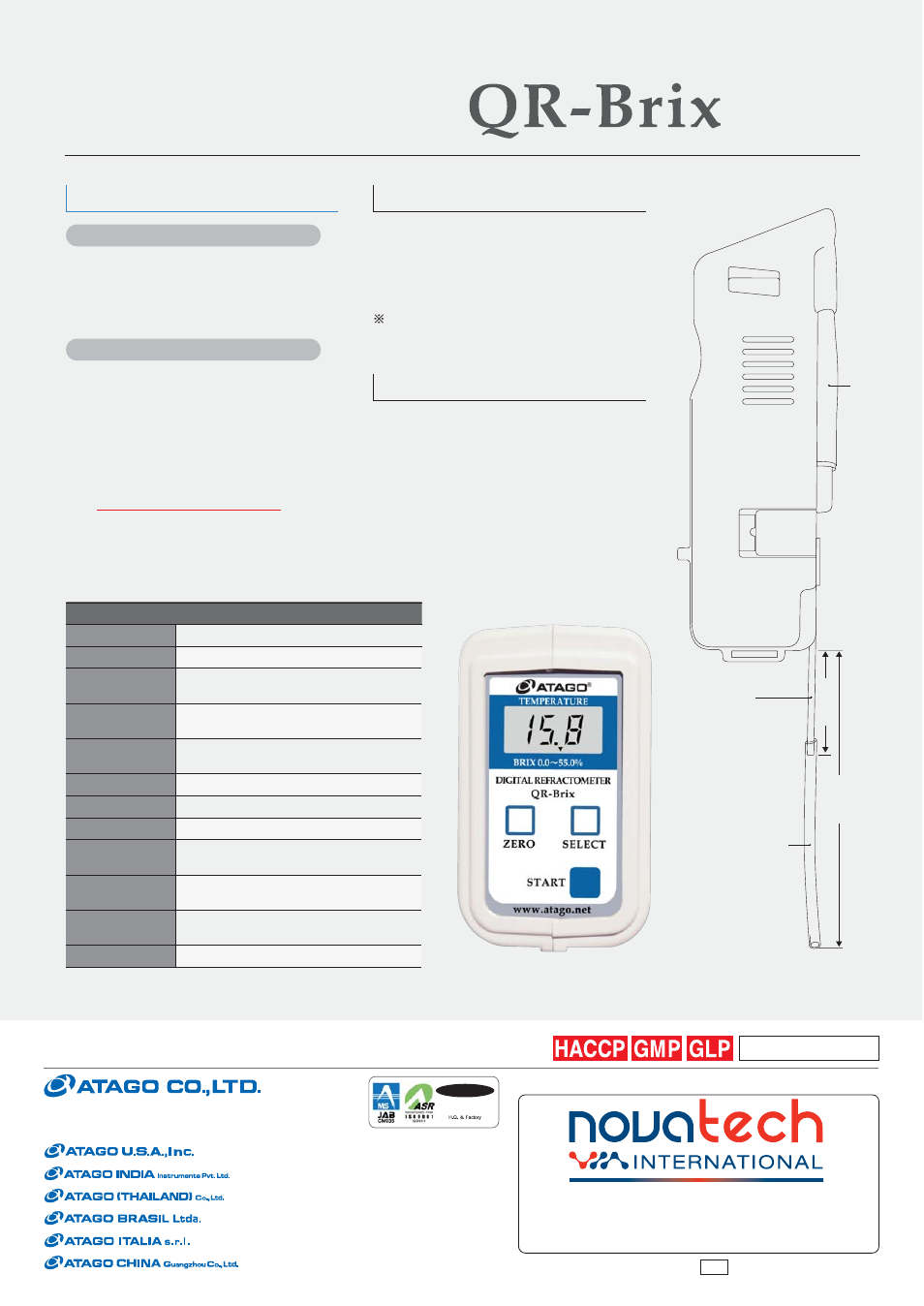

Digital Suction-Type Refractometer
Recommended uses
• Chemical solutions
• Metal-working fluids
• Coolants
• Battery fluids
• Soft drinks
• Salt water and condiments
• Brines and soups
Custom scales are
available upon request.
• Saline concentration
(specific gravity or degrees Baume)
• Sodium hydroxide concentration
• Ethylene glycol concentration and freeze point
Non-recommended uses
Displayed value
This instrument measures the refractive index
of a liquid and displays the converted value in
“ Brix, ” which is a percentage measurement of
sugar in water. The concentration of a
substance other than sugar can be calculated
by creating a conversion table of the desired
concentration % and corresponding Brix %.
Contact ATAGO for further details.
High refractive index samples, such as
organic solvents, hydrocarbons, and
petroleum.
Samples that are viscous, oily / fatty,
murky, or high in undissolved solid content.
Side view
Pump
Silicon tube
The length can
be extended by
connecting
multiple tubes.
Face panel QR-Brix
Measurement range Brix 0.0 to 55.0%; temperature 5 to 40°C
Resolution Brix 0.1%; temperature 0.1°C
Accuracy
Brix ±0.2% (with sucrose solution);
temperature ±1°C
Sample
temperature range
5 to 40°C (Automatic Temperature Compensation)
Ambient
temperature range
5 to 40°C
Measurement time Approximately 3 seconds
Sample volume At least 2 ml
Power supply 006P battery(9V)
Materials
Main body and detection section: ABS resin
Sample chamber cover: AS resin
International
Protection class
IP64
Dimensions
and weight
70 Ч 40 Ч 210 mm (excluding nozzle), 300 g
The maximum possible length of nozzle: 130 mm
Accessories included One 95 mm stainless pipe, one 95 mm silicon tube
Cat. No. 3353
Food and beverage applications
Industrial applications
Example :
Cat.No.3353
Capable of measuring liquids with a viscosity of
up to 210 centipoise (cP), which equals to a 67%
Brix sucrose solution at 20°C.
