Zoom Functions
Zoom effect on a 4:3 TV Display
Due to the nature of digital broadcasts, the normal image displayed on
your television may appear as a “windowbox” or “letterboxed” image. This
is a normal condition based on signal transmission and programming.
Press the ZOOM button on the remote control to minimize or eliminate
the black bars on your TV display, if desired.
Normal
Zoom
Zoom effect on a 16:9 TV Display
(SD Broadcasts Only)
Normal
Zoom
Normal
Zoom Fill
When viewing TV broadcasts on a widescreen television you will find that
SD programing does not fill the display entirely. Press ZOOM on the remote
control until the display area is filled and black bars are minimized.
A windowbox image is typical when viewing DT broadcasts that are
not widescreen presentations. Press Zoom to eliminate the black bars.
A letterbox image is typical when viewing DT broadcasts that are
presented in widescreen format. Press Zoom to eliminate the black bars.
Note: ZOOM option can vary depending on the broadcaster.

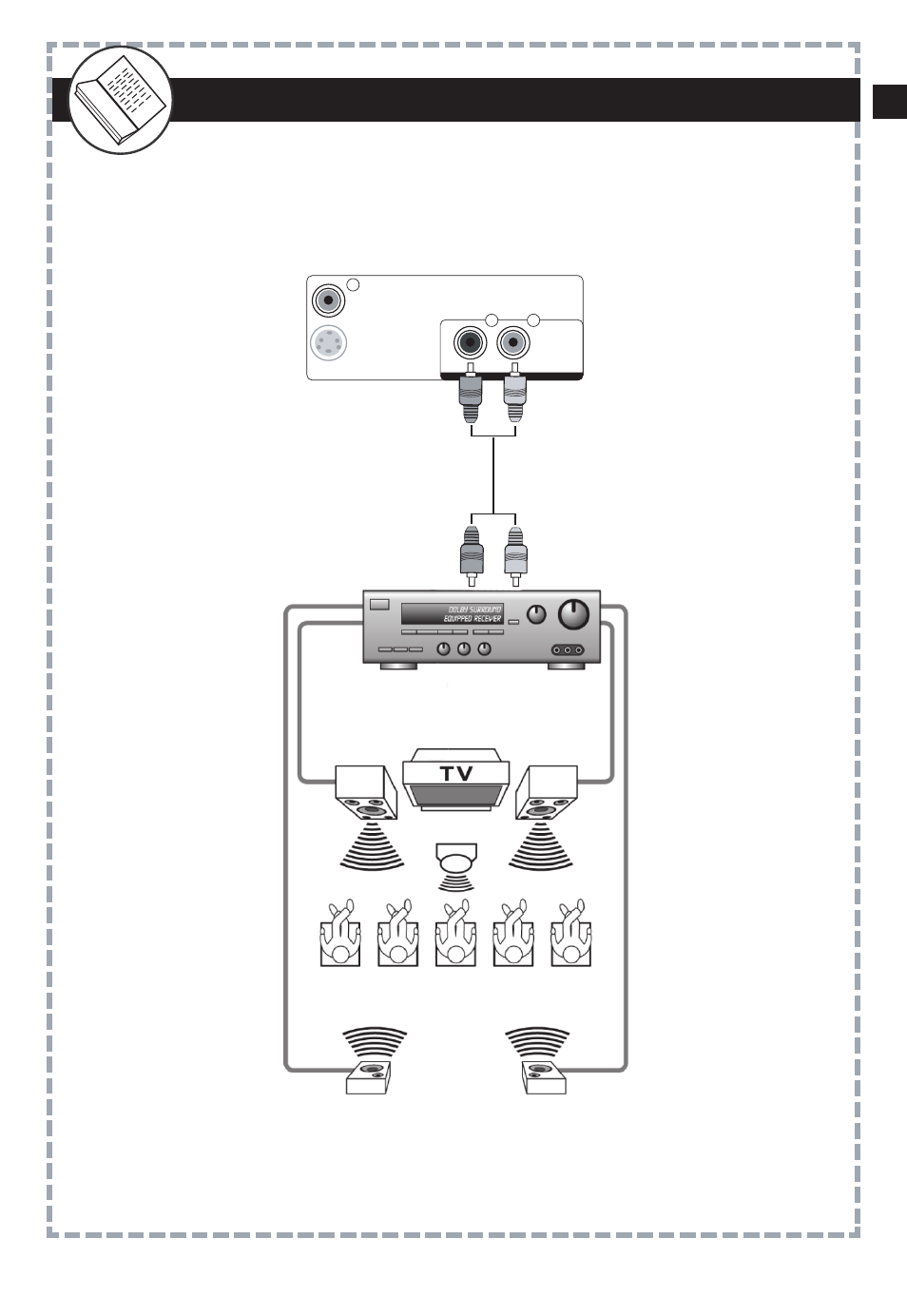

Connection to Stereo
L R S-VIDEO
VIDEO
AUDIO OUTPUT AUDIO OUTPUT
Front Left
Speaker
Front Right
Speaker
Center Channel
Surround Right
Speaker
Surround Left
Speaker
Dolby Surround
Connection Example
To Dolby Surround
Equipped Receiver
(L + R Audio Input)
white red
You may connect the unit to your stereo system using the following
method:
Rear panel subject to modification
