Connection to TV
Composite (using supplied AV cables)
S Video
The DT150 is ready for use after connections are made to your TV using
one of these video installation methods.
Connect the supplied video (yellow) and
audio (red & white) cables.
To view, cycle through your television inputs
(Video 1, 2, etc) to select the source that the
DT150 is connected to.
For better quality, connect with an optional
S-Video cable (if your TV has this input). Do
not connect the yellow video cable when
installing the S-Video cable.
To view, cycle through your television inputs
(Video 1, 2, etc) to select the source that the
DT150 is connected to.
Rear panel subject to modification
Rear panel subject to modification

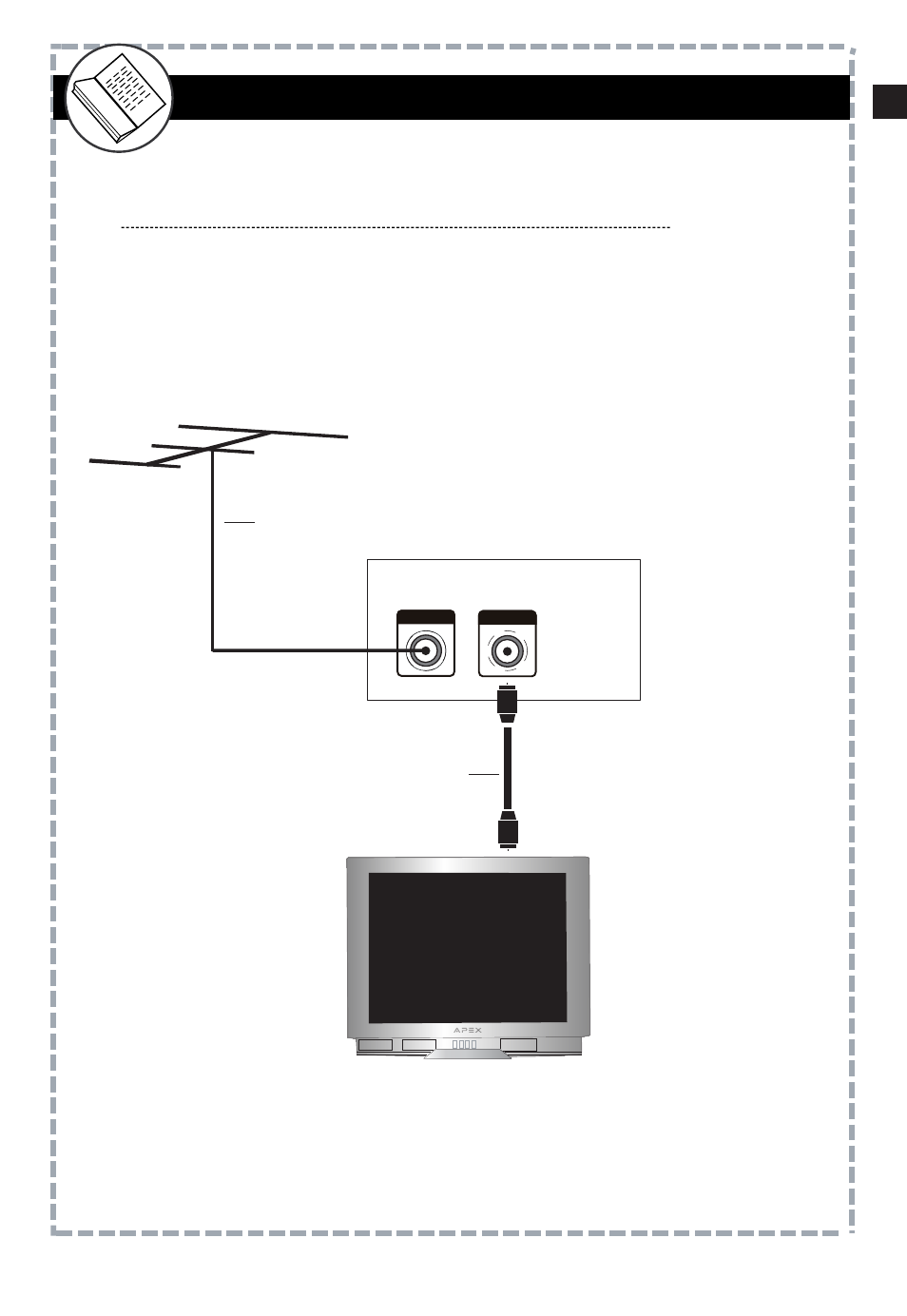

Standard Install - RF Input / Output
Connect antenna wire to RF ANTENNA IN on the rear of the
DT150. Connect the supplied coax cable wire from the CH 3/4
terminal (RF Out) to RF ANTENNA INPUT on the rear of
your TV.
To view, tune Ch 3 or 4 on your TV, choose the channel that
does not have an active or strong signal. Slide the CH 3/4
switch located on the rear of the DT150.
(using supplied audio cables, S Video is optional)
Connection to TV
(Back of Digital Converter Box)
RF Coaxial cable
to your TV
Over-the-air Antenna
ANTENNA CH 3/4
yellow
To TV Video Input
VIDEO ANTENNA IN CH 3/4
S-VIDEO
L AUDIO R CH 3 CH 4 SMART
ANTENNA
To TV Audio L/R Input
white red
VIDEO ANTENNA IN CH 3/4
S-VIDEO
L AUDIO R CH 3 CH 4 SMART
ANTENNA
To TV Audio L/R Input
white red
To S-Video Input on TV
S-VIDEO
