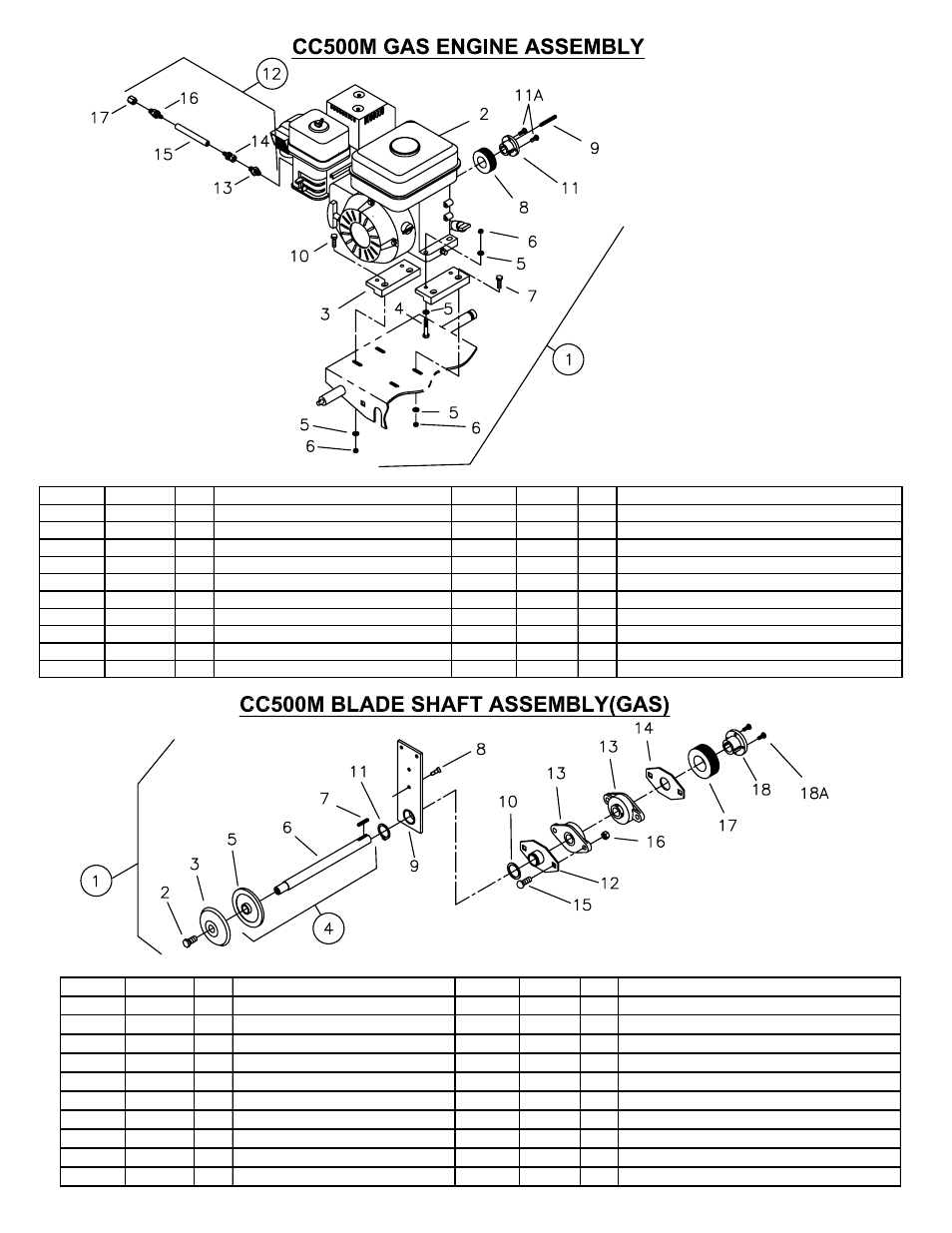

Engine/blade shaft assemblies (gas) – Diamond Products CC500M User Manual
Page 6
Item
Part No.
Qty.
Description
Item
Part No.
Qty.
Description
1
6030049
1
Blade Shaft Aseembly
11
2400090
1
Retaining Ring, 1-3/8" External
2
2900539
1
Capscrew , Hex Hd., 1/2"-20 x 1" LH
12
6030000
1
Blade Guard Pivot Spacer
3
6030008
1
Outer Flange, 3-7/8"
13
2500575
2
Flange Block Bearing, 7/8"
4
6030097
1
Bladeshaft Assembly (Includes: 5, 6)
14
6030015
1
Bearing Spacer
5
6030007
1
Inner Flange, 3-7/8"
15
2900324
4
Carriage Screw , M10 x 30mm
6
6030045
1
Blade Shaft Only
16
2900304
4
Lock Nut, M10 Nylon
7
6048229
1
Key, 3/16" Sq. x 1-1/4"
17
2500681
1
Sheave, Poly-V, 6J-3.00
8
2900253
1
Shoulder Screw , 3/8-16" x 3/8"
18
2500682
1
Split Taper Bushing H, 7/8" Bore-w /screw s
9
6030009
1
Pivot Plate Assembly
18A
REF
2
Capscrew , Hex Hd., 1/4"-20 x 7/8"
10
2501173
1
Wave Disc Spring
Item
Part No.
Qty.
Description
Item
Part No.
Qty.
Description
1
6030064
1
Engine Assembly
11
2500680
1
Split Taper Bushing G, 3/4" Bore
2
2600091
1
Engine, 5.5 Hp Honda
(includes screw s)
3
6030051
2
Engine Mount
11A
2900023
2
Capscrew , Hex Hd., 1/4"-20 x 5/8"
4
2900538
4
Capscrew , Hex Hd., 5/16"-18 x 1-3/4"
12
6030108
1
Oil Drain Assembly
5
2900022
12
Flat Washer, 5/16" SAE
13
3200384
1
Fitting,M10 x 1.25mm Male to 1/4" Male JIC
6
2900039
8
Lock Nut, 5/16"-18 Nylon
14
3200091
1
Fitting, 1/4" Female JIC to 1/4" Push Lock
7
2900138
3
Capscrew , Hex Hd., 5/16"-18 x 1"
15
6048032
1
Oil Drain Hose, 1/4" I.D.
8
2500679
1
Sheave, Poly-V, 6J-2.24
16
3200040
1
Fitting, 1/4" Male JIC to 1/4" Push Lock
9
6048229
1
Key, 3/16" Sq. x 1-1/4"
17
3200006
1
Cap, 1/4" JIC
10
2900508
1
Capscrew , Hex. Hd., 5/16"-18 x 1-1/2"
6
