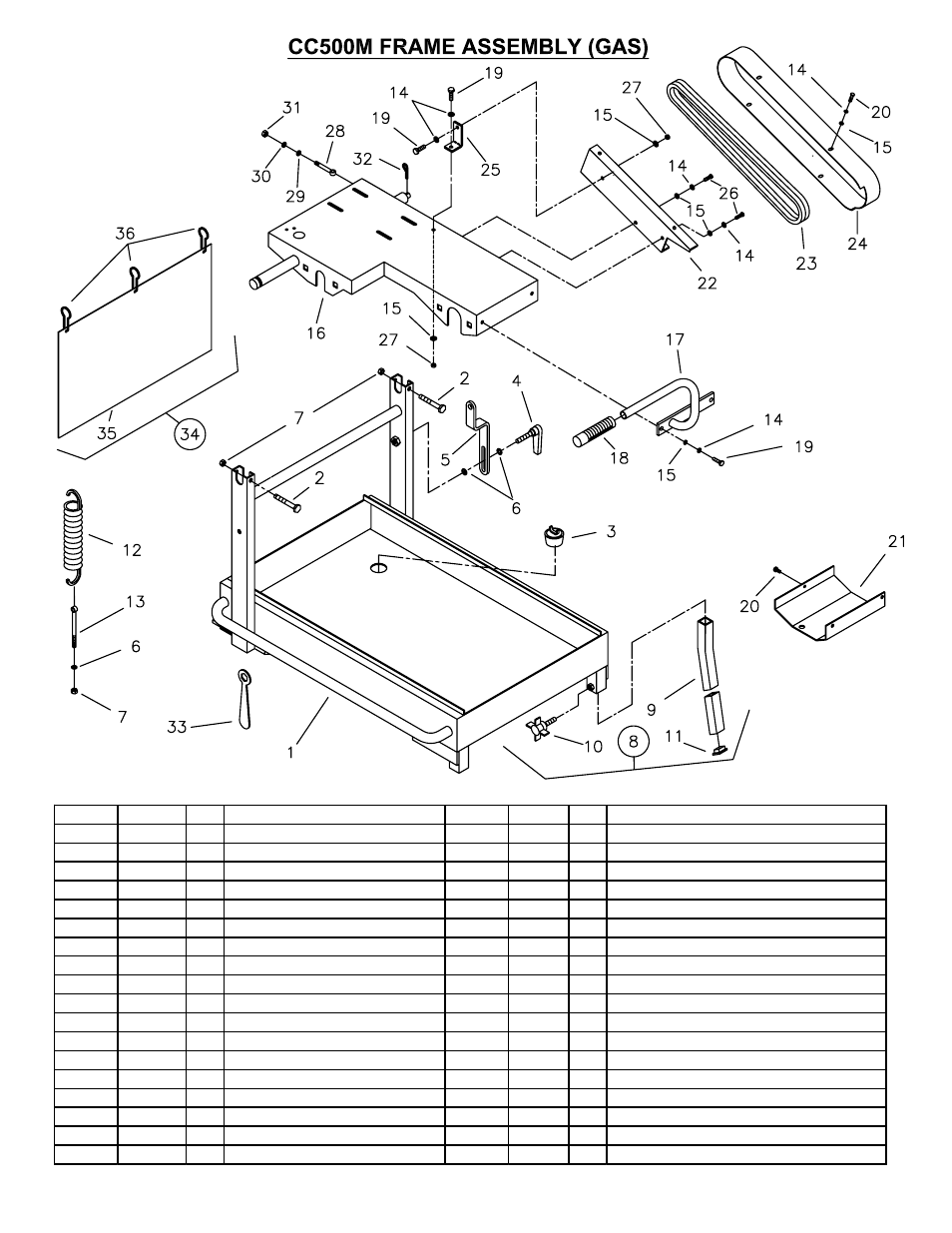

Frame assembly (gas) – Diamond Products CC500M User Manual
Page 4
Item
Part No.
Qty.
Description
Item
Part No.
Qty.
Description
1
6030006
1
Frame Weldment
19
2900310
4
Capscrew , Hex Hd., M6 x 20mm
2
2900596
2
Capscrew , Soc Hd., 3/8"-16 x 2-1/2"
20
2900544
5
Capscrew , Hex Hd., M6 x 12mm
3
2500580
1
Plug, Rubber Drain
21
6030018
1
Blade Shaft Cover Plate
4
2500577
1
Lever, Adjustable w ith Stud
22
6030037
1
Belt Guard Mounting Bracket
5
6030012
1
Depth Lock
23
2500683
1
Poly-V Belt, 400J6
6
2900014
3
Flat Washer, 3/8" SAE
24
6030099
1
Belt Guard
7
2900018
3
Lock Nut, 3/8"-16 Nylon
25
6030065
1
Belt Guard Brace
8
6030044
1
Leg Kit
26
2900341
2
Capscrew , Hex Hd., M6 x 16mm
9
6030038
4
Leg
27
2900302
2
Lock Nut, M6 Nylon
10
2900234
4
Hand Lock Knob, 3/8"-16
28
2900545
1
Eyebolt, M8 x 80mm
11
2500573
4
Plug, 1" Square Tube
29
2900022
1
Flat Washer, 5/16" SAE
12
2500559
1
Extension Spring, 1-1/2"
30
2900031
1
Lock Washer, 5/16" Split
13
2900602
1
Eyebolt, 3/8"-16 x 6"
31
2900343
1
Hex Nut, M8
14
2900024
8
Lock Washer, 1/4" Split
32
2900262
1
Hair Pin Cotter
15
2900009
14
Flat Washer, 1/4" SAE
33
6030021
1
Hex Wrench, 3/4"
16
6030020
1
Cutting Head Weldment
34
6030029
1
Splash Guard Assembly
17
6030047
1
Handle Weldment
35
6030030
1
Splash Curtain Only
18
2500663
1
Hand Grip, 3/4"
36
2500816
3
Curtain Ring, 1"
