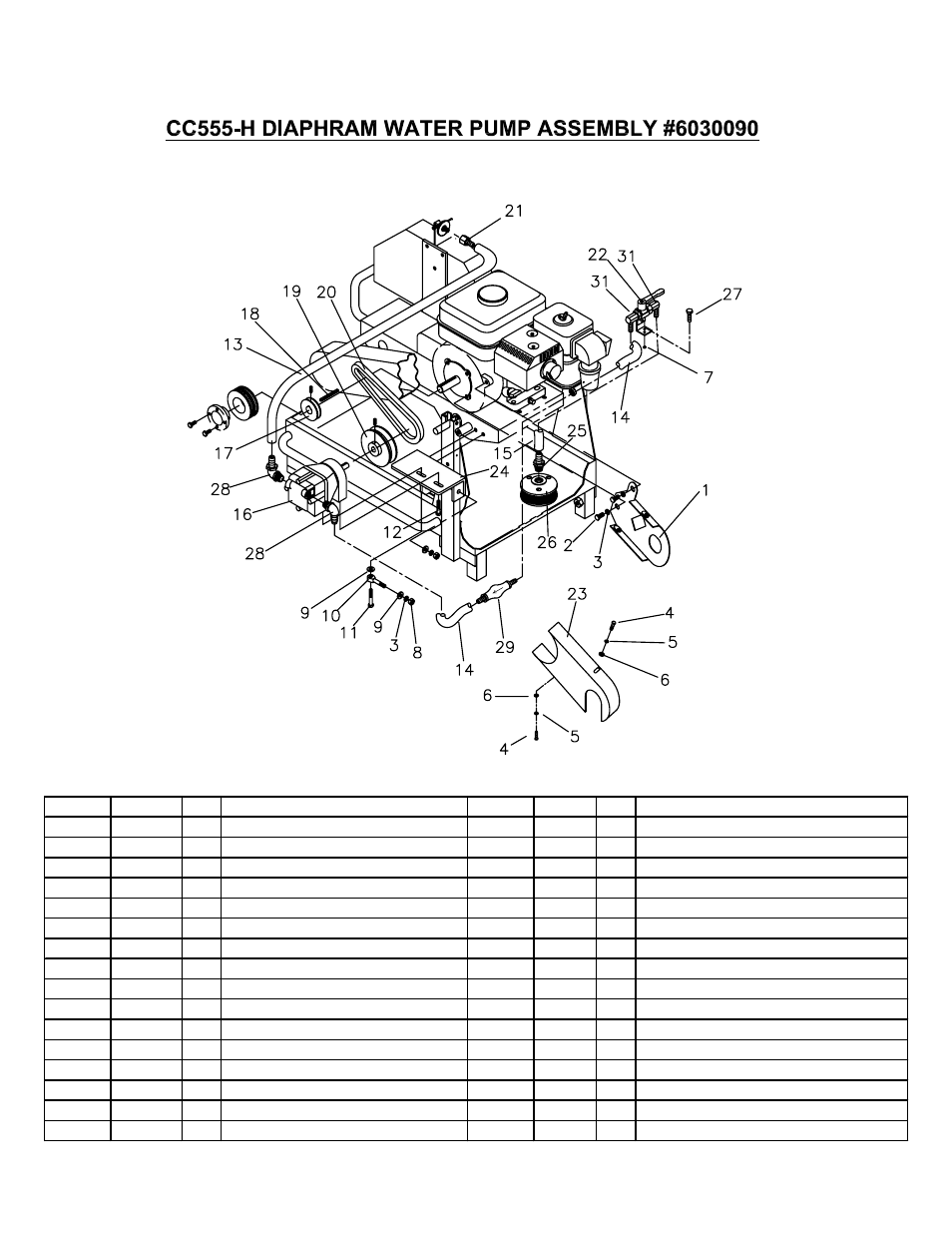

Water pump assembly (gas) – Diamond Products CC500M User Manual
Page 10
Item
Part No.
Qty.
Description
17
2500921
1
Pulley, 3L-2.00 x 3/4" Bore
1
6030093
1
Belt Guard Mounting Bracket
18
6030106
1
Key, 3/16" Sq. Bevel End x 2"
2
2900589
2
Capscrew , Hex Hd. 5/16"-24 X 3/4"
19
2500922
1
Pulley, 3L-3.50 x 1/2" Bore
3
2900031
4
Lock Washer, 5/16" Split
20
2500927
1
Poly-V Belt 3L-240
4
2900544
2
Capscrew , Hex Hd., M6 x 12mm
21
3200031
1
Fitting, 1/4" Female Pipe to
5
2900024
2
Lock Washer, 1/4" Split
3/8" Hose Barb
6
2900009
2
Flat Washer, 1/4" SAE
22
3200474
1
Valve, Water Flow , 1/4" NPT
7
2900301
2
Lock Nut, M5 Nylon
23
6030094
1
Belt Guard
8
2900343
1
Hex Nut, M8
24
6030071
1
Water Pump Mounting Bracket
9
2900022
10
Flat Washer, 5/16" SAE
25
3200234
1
Fitting, 1/2" Male NPT to 3/8" Hose Barb
10
2900344
1
Eyebolt, M8 X 50 mm
26
2501373
1
Inlet Strainer, 1/2" NPT
11
2900217
1
Capscrew , Hex Hd. 5/16"-18 X 1-1/4"
27
2900339
2
Capscrew , Hex Hd., M5 x 12mm
12
2900019
1
Capscrew , Hex Hd. 5/16"-18 X 3/4"
28
2702175
2
Port Fitting, 3/8” Barb (90 degree)
13
3200052
1
Hose-3/8" Clear Coro Braid X 30" Lg.
29
2500926
1
Ultra Flow Bulb
14
3200052
2
Hose-3/8" Clear Coro Braid X 5-1/2" Lg.
30
2501395
1
Valve Holding Bracket
15
3200052
1
Hose-3/8" Clear Coro Braid X 18" Lg.
31
3200475
2
Fitting, 1/4" Male Pipe to
16
6030174
1
Diaphram Pump Assembly
3/8" Hose Barb (90 degree)
10
