Diamond Products CC100 - Manual (Page 11)

18
16
1
3
4
6
7
3 5
2
8
9
14
10
12
13
15
23
19
21
22
20
17
SHOWN AS
REFERENCE
1 2501043 10
Cap Screw, Hex Hd., 5/16-18 x 1" 3
Spacer, Blade Shaft 1 6041042 11
Sheave, 6.00-3 Groove
ITEM PART NO. QTY. DESCRIPTION
1 6048335 1 Motor Adapter Plate
2 2600119 1
Electric Motor, 7-1/2 HP, 230V, 1
Ph, C-Face
3 2900014 8 Flat Washer, 3/8" SAE
4 2900006 4 Lock Washer, 3/8" Split
5 2900013 4
Cap Screw, Hex Hd., 3/8-16 x 1-
1/4"
6 2900033 4 Hex Nut, 3/8-16
7 2900530 4 Cap Screw, Flat Hd., 1/2-13 x 1"
8 2501045 1 Sheave, 3.00 - 3 Groove
9 2500370 1 Bushing, Taper Lock, 1-3/8" Bore
2500370B 1 Key, 3/8 x 5/16 x 3/4"
2900138
ITEM PART NO. QTY. DESCRIPTION
12 2501044 1
Bushing, Taper Lock, 1" Bore,
w/Fasteners
2900138 3 Cap Screw, Hex Hd., 5/16-18 x 1"
2501044B 1 Key, 3/8 x 5/16 x 3/4"
13 2501357 1 Key, 1/4" Sq., x 2.0"
14 6048046 1 Key, 5/16" Sq. x 1-1/2"
15 6041154 1 Bracket, Electric Box
16 2900022 8 Flat Washer, 5/16" SAE
17 2900494 4 Cap Screw, Hex Hd., 5/16-18 x 2"
18 2900039 4 Lock Nut, 5/16-18 Nylon
19 6048506 1
Starter Box Assy., 220-240V,
1PH.
20 2900144 4
Cap Screw, Hex Hd., 1/4-20 x
3/4"
21 2900009 4 Flat Washer, 1/4" SAE
22 2900024 4 Lock Washer, 1/4" Split
23 2500032 3 V-Belt 4L-390

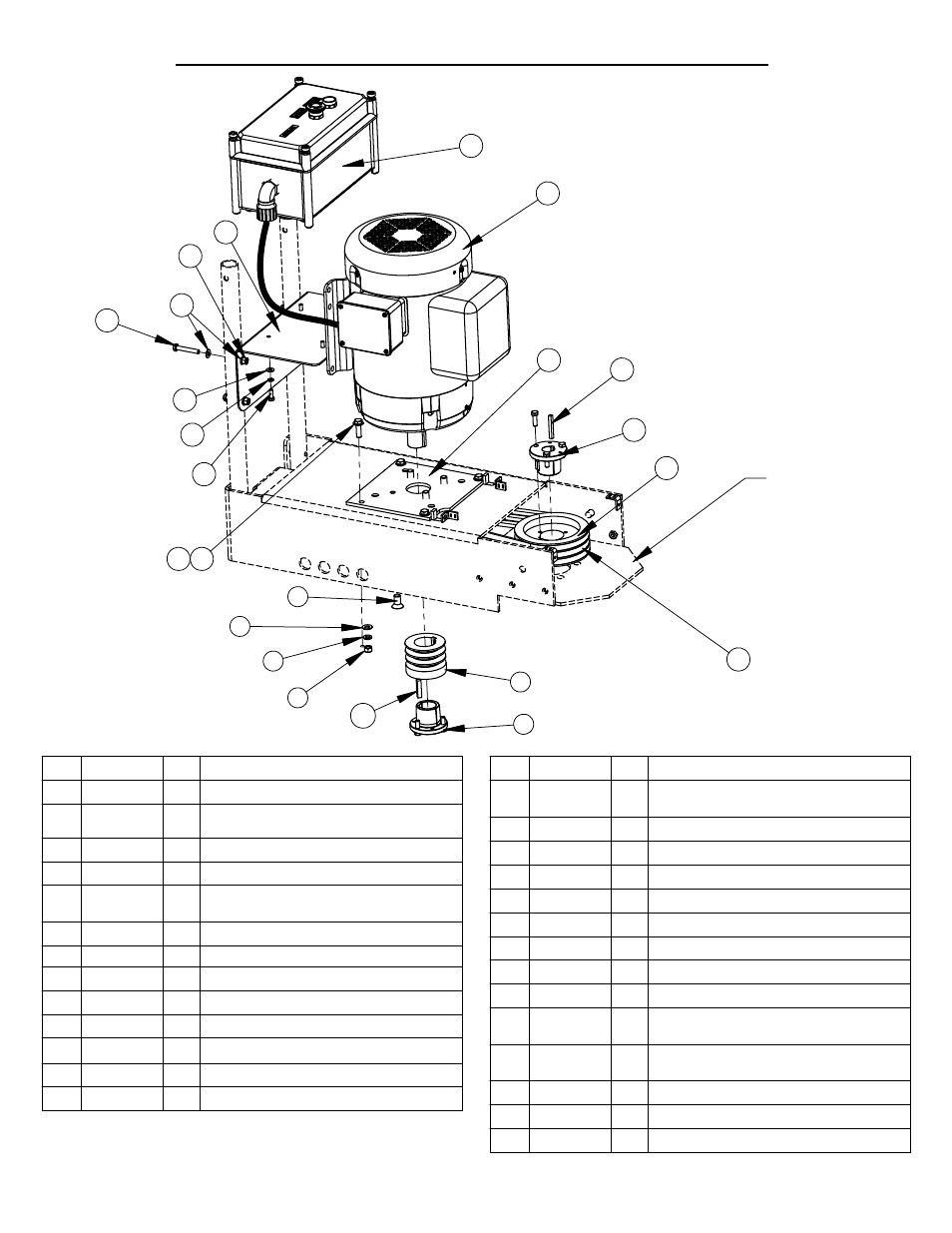

6011713 ELECTRIC MOTOR GROUP, 7-1/2 HP, 230V, 1 Ph
11
